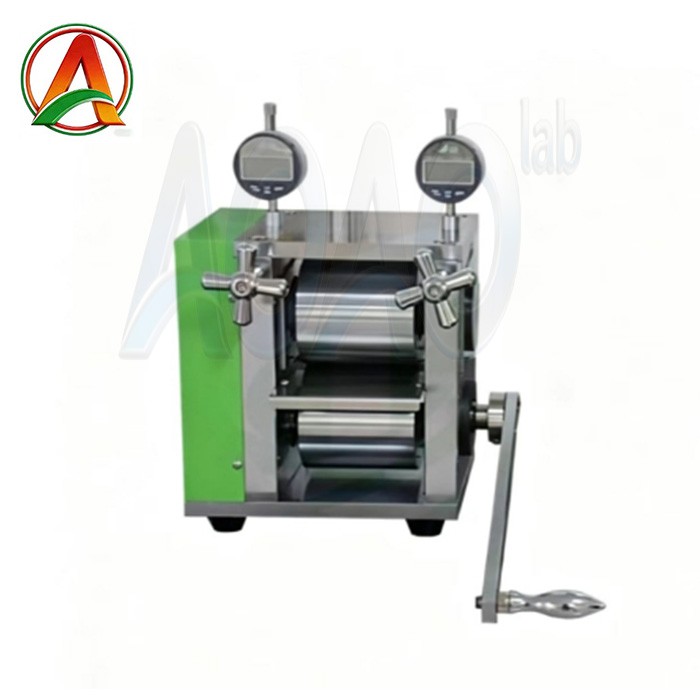

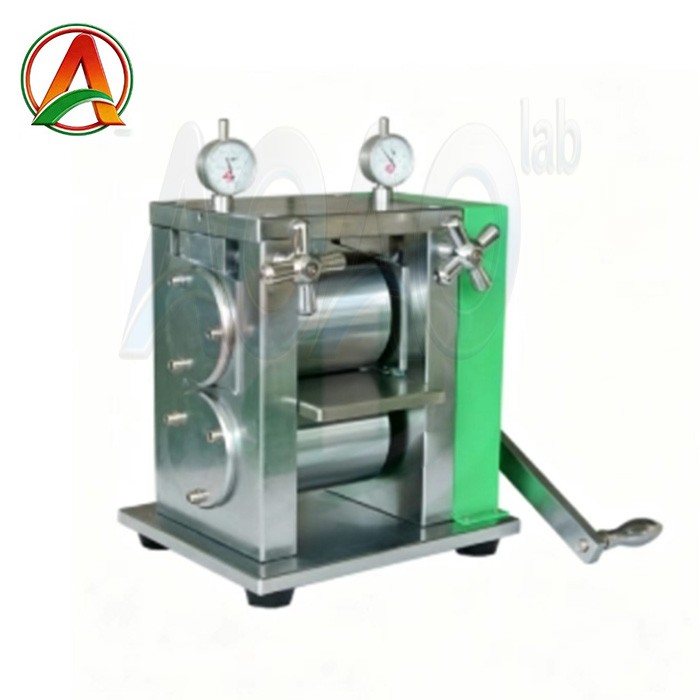

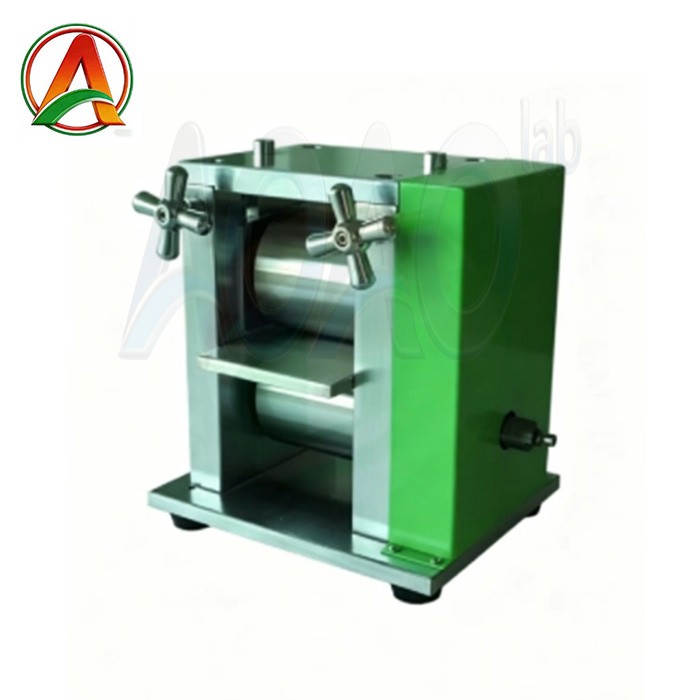

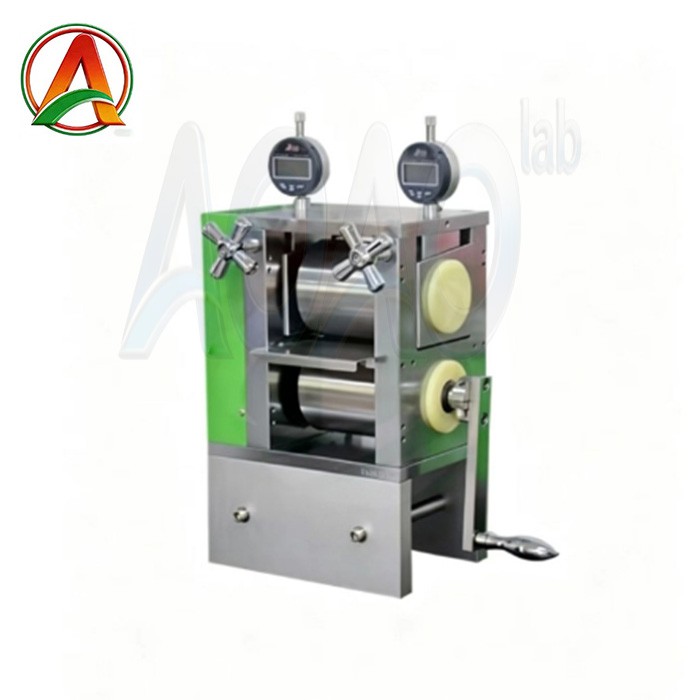

Manual Rolling Press Machine 100mm Width

Manual Rolling Press Machine 100mm Width

Brand:AOAO NEW ENERGY
item no.:AOAO-SG-100L
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN
Lead Time:7

Manual Rolling Press Machine 100mm Width

Product Detail

Precision 4" (100mm) Width Manual Rolling Press Machine with Dual Micrometer For Lithium battery Electrode Calendering

Optional Customized Service: pressure real-time display function.
The default quotation for the product is for conventional equipment without pressure display. If pressure display function is required, it is necessary to communicate with the sales personnel in advance.

Product Overview

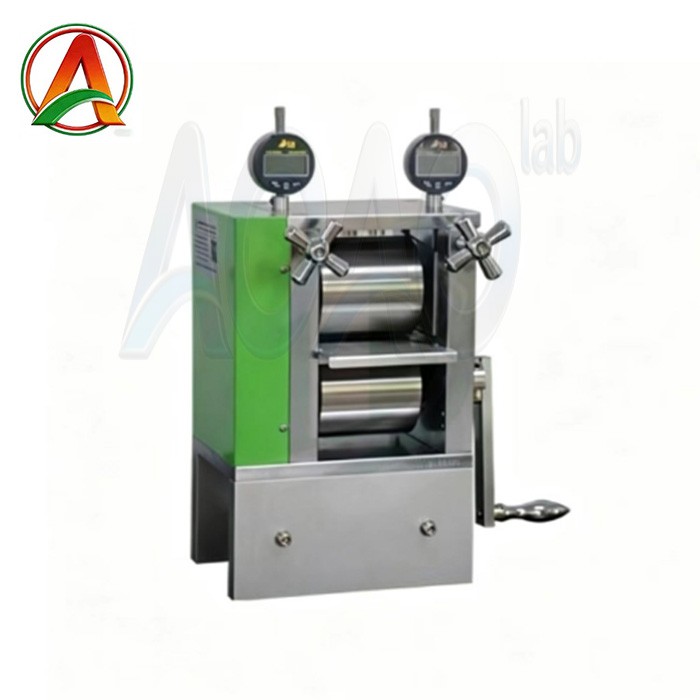

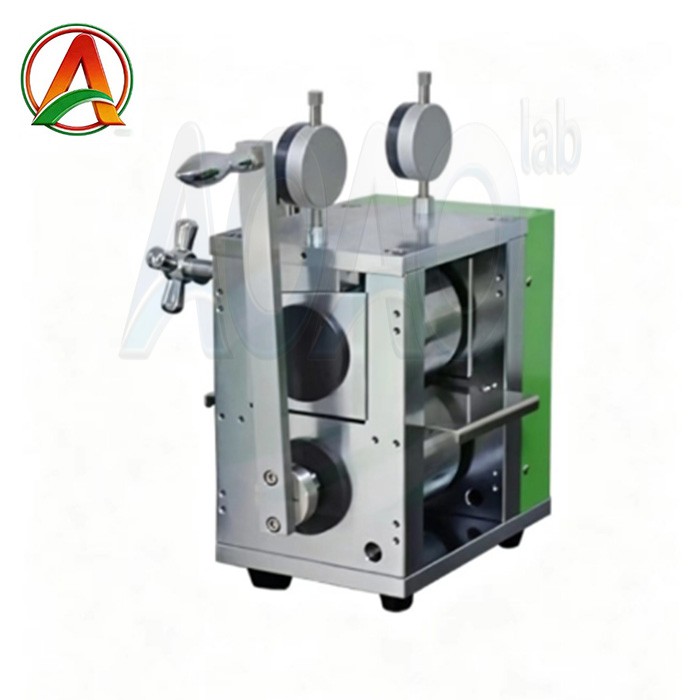

The AOAO-SG-100L Manual Rolling Press Machine is a precision laboratory calendering equipment designed for lithium-ion battery electrode processing. It is mainly used to adjust electrode thickness and increase active material density after coating and drying.

Equipped with high-hardness rollers and a dual micrometer adjustment system, this machine ensures excellent rolling accuracy and consistency. Its compact structure and easy operation make it an ideal solution for battery R&D laboratories and small-scale material testing.

Key Features

● Optimized for Battery Electrode Calendering

Designed specifically for lithium-ion battery electrode rolling, improving density and electrochemical performance.

● High Precision Adjustment

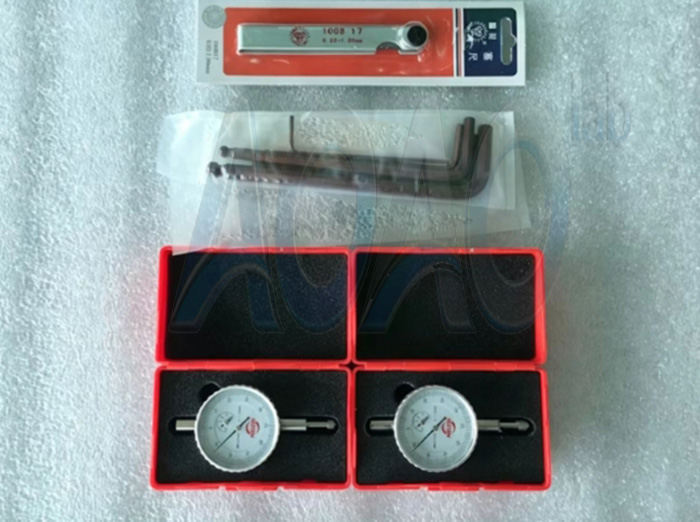

Dual micrometers enable precise thickness control within 0–2mm, with rolling accuracy up to ≤±0.005mm.

● Durable Hardened Rollers

Φ96mm rollers made of hardened tool steel (HRC > 60) with chromium plating ensure long service life and smooth surface finishing.

● Compact Lab Design

Space-saving structure, easy manual operation, suitable for laboratory environments.

● Wide Material Compatibility

Applicable to battery electrodes and various metal materials such as copper, aluminum, gold, and silver.

Model	AOAO-SG-100L 4" Width(100mm) Manual Rolling Press Machine
Warranty	One year limited manufacture warranty with lifetime support
Structure	1 Heavy duty steel frame, gears and handle 2 Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 60) with Cr electroplated coating 3 Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum
Roller	Dimensions: 96mm(Dia.) x 100mm(W) Material: Made from hardened tool steel (HRC > 60) with Cr electroplated coating. With finish > 0.8
Rolling press accuracy	≤±0.005
Rolling press thickness	0-2mm adjusted with Dial gauge
Rolling press width	Max 100mm

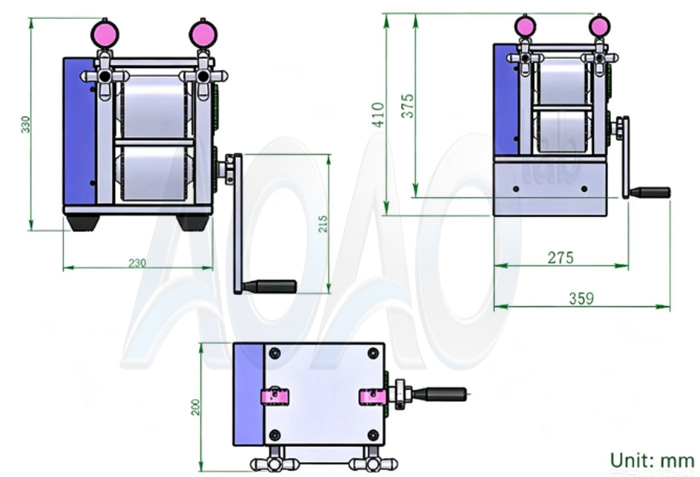

Product Dimensions	350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14")
Weight	45kg (100 lbs)
Application Notes	This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise. 1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting 2 Coated Rust-proof oil if machine were to be unused for a long period of time 3 The minimum thickness of the rolled sheet should depend on the physical property of the materials. Here are some results from our test: ElectrodeSizeOriginalthicknessFinished thicknessLiFePO4double sides50mm Width x 260mm Length0.205mm0.09mmLiMn2O4double sides50mm Width x 260mm Length0.205mm0.09mmCopper foil + graphite(single side)75mm Width x 240mm Length0.09mm0.04mm Sample testing is available upon customer's request

Typical Applications

● Lithium-ion battery electrode calendering
● Electrode thickness adjustment after coating
● battery material density improvement
● Laboratory-scale metal rolling
● R&D and pilot-scale production

Operation & Maintenance

● Clean roller surfaces with acetone after each use to prevent contamination and rust
● Apply anti-rust oil if the machine is not used for a long time
● Ensure proper adjustment before operation for best results
● Sample testing service is available upon request

Get a Quote

Looking for a reliable manual rolling press machine for battery research and electrode processing?

Contact AOAO NEW ENERGY for detailed specifications, sample testing, and customized solutions tailored to your laboratory needs.

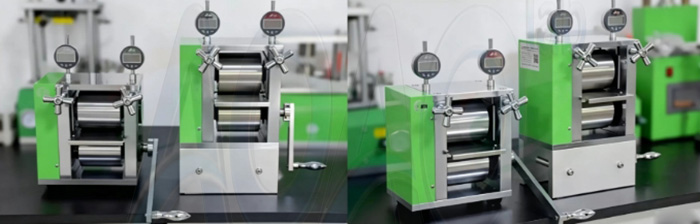

PRODUCT DISPLAY
