Hot Roller Press Machine For Battery Electrode

Hot Roller Press Machine For Battery Electrode

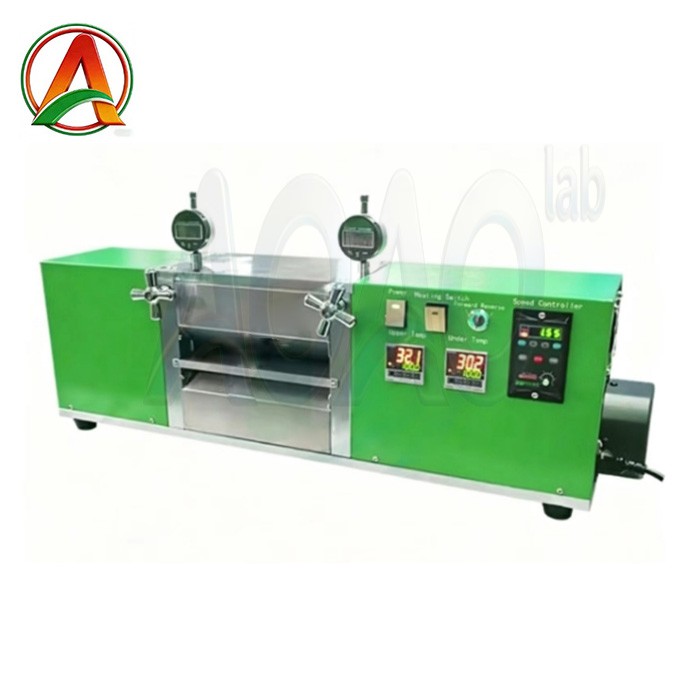

AOAO-JS-100L Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating

Brand:AOAO NEW ENERGY
item no.:AOAO-JS-100L
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN
Lead Time:7

Hot Roller Press Machine For Battery Electrode

SPECIFICATIONS

1 AOAO-JS-100L Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.

2 The hot roller press machine has 100mm width steel rollers, Max 100mm for cold press, Max 80mm for hot press, the roller can be heated up to 130°C.

Model	Hot Roller Press Machine AOAO-JS-100L
Source voltage	AC 110V-220V Customized, 50HZ
Power	1000W
Warranty	One Year limited warranty with lifetime support
Roller temperature	RT-130℃, adjustable and digital display
Roller diameter	2 - Φ96mm
Roller surface hardness	HRC62
Roller finish degree	>0.4
Rolling press thickness	0-2mm, Adjustable
Working speed	0-40mm/s Digital display ,Adjustable
Rolling press width	Max 100mm for cold press, Max 80mm for hot press

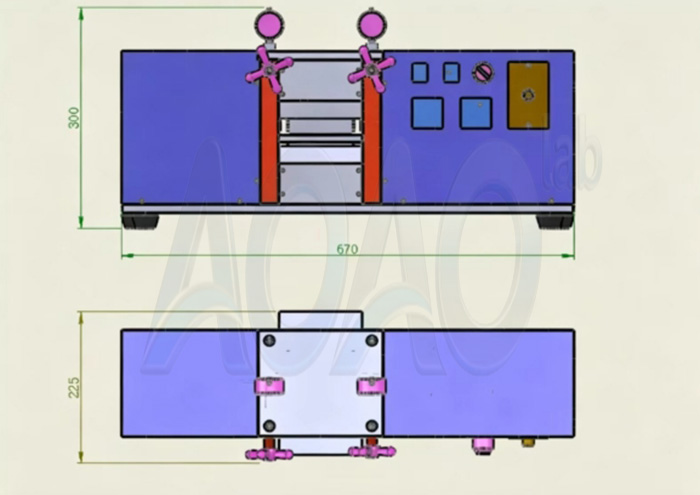

Dimension(LWH)	670225300mm
Weight	About 70kg

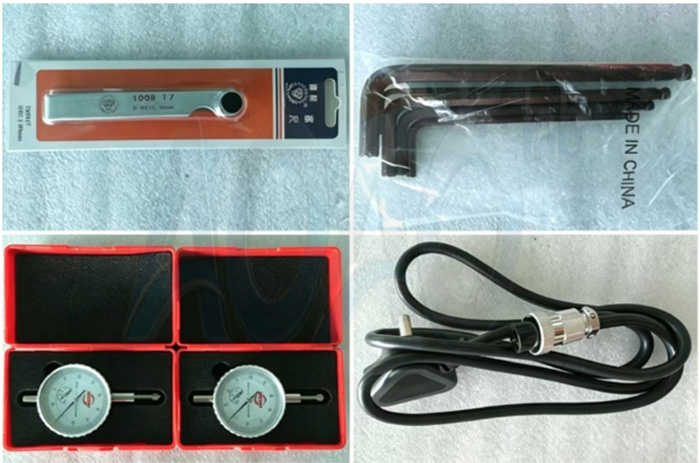

Accessories	1 “Customized power plug”-1pcs 2 “Dial gauge”-2pcs 3 “Socket head wrench”-1set 4 “Feeler gauge”-1pcs
