Lab Horizontal Heating Calender Machine

Lab Horizontal Heating Calender Machine

SPECIFICATIONS

Optional Customized Service: pressure real-time display function.
The default quotation for the product is for conventional equipment without pressure display. If pressure display function is required, it is necessary to communicate with the sales personnel in advance.

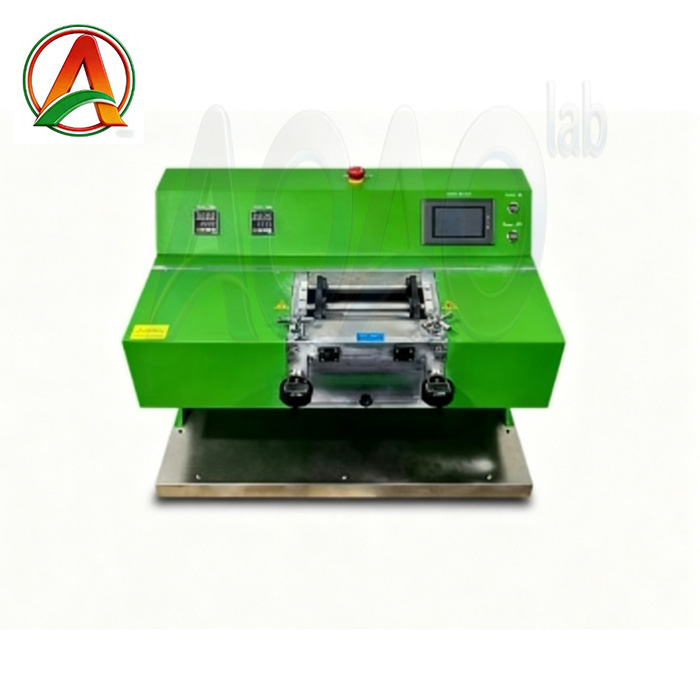

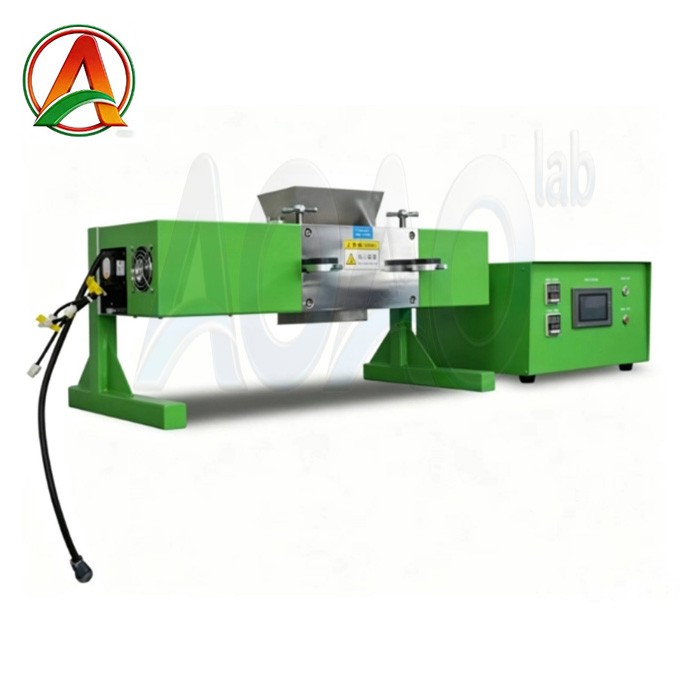

AOAO-JS200W-B Heated horizontal roller press machine is mainly suitable for the electric rolling of battery materials and other colored materials in the laboratory at a certain heat temperature, rolling thickness adjustable, easy to operate.

It is particularly suitable for thinning and increasing the density of Lithium battery electrode plates for clean energy materials.

Main feature:

*  Hot rolling, thermostat control temperature adjustable, and digital display.

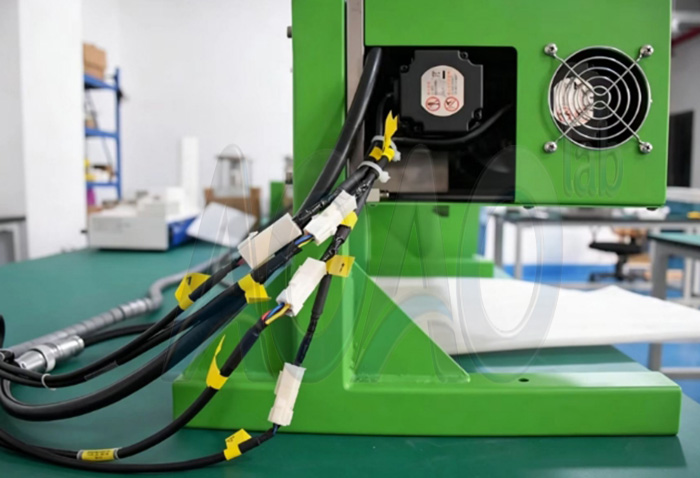

*  Adopt double servo rolling, accurate speed and precision

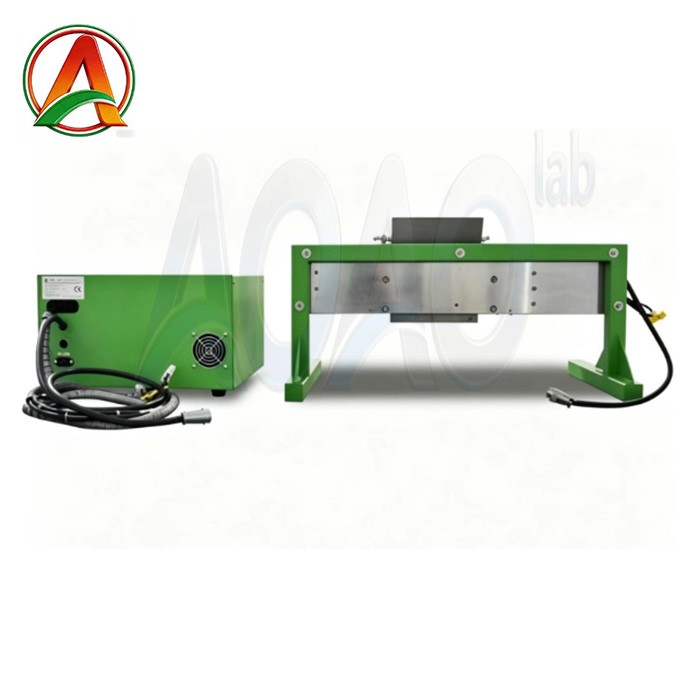

*  The control box is separated from the machine for easy operation.

*  Can choose to work with or without heating.

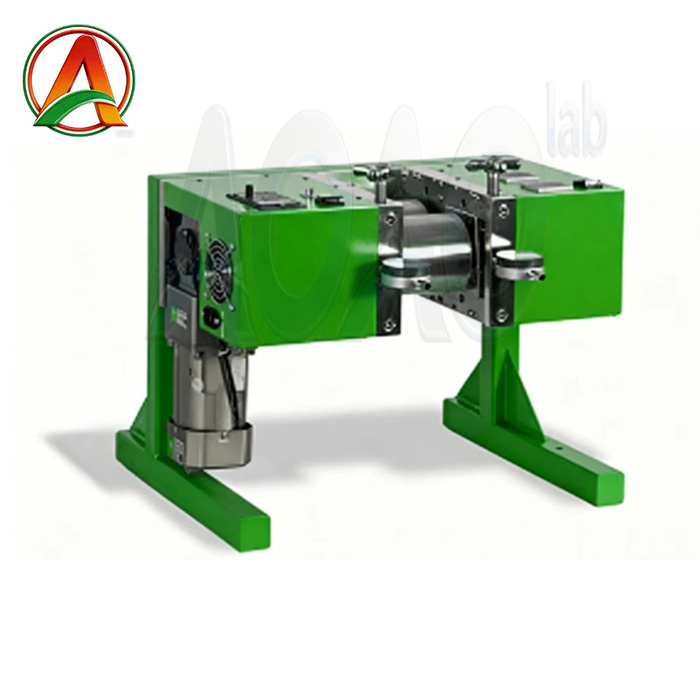

*  Horizontal design for easy material feeding and rolling.

*  The rolls have high hardness and hard chrome plated surface, with hardness up to HRC62 and rust resistance.

*  High rolling precision, roll cylindricity ≤±2um.

*  Pressing thickness and speed is adjustable, delicate and beautiful appearance.

*  Electric rolling, forming automation, can be reversed operation.

*  Small size, easy to operate, flexible and fast to use.

Working process and commissioning instructions

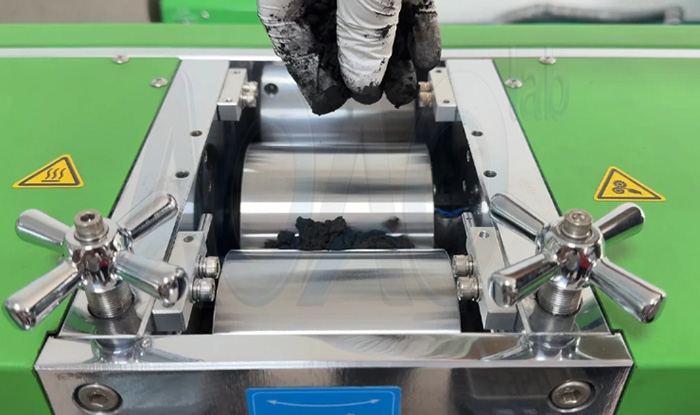

Roll rolling operation: Put the material between the two rolls, press the start button, the double servo motor will start and drive the rollers to achieve roll-to-roll rolling

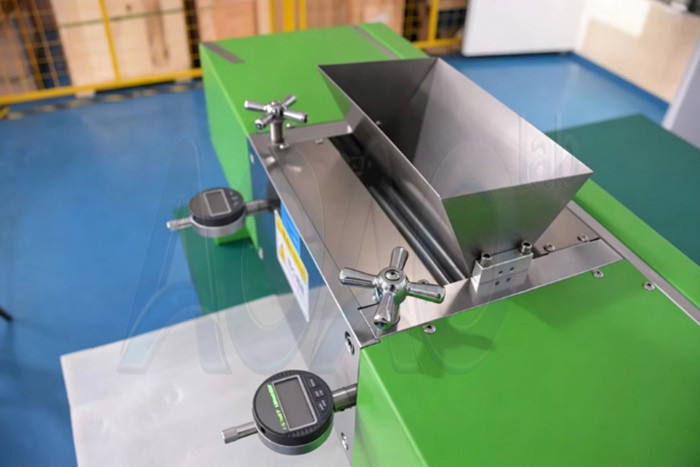

Roll rolling gap adjustment: Adopt inclined block to adjust the press gap, good self-locking, rotate the left and right adjusting handwheel to adjust the gap, percentage meter value display, intuitive and convenient.

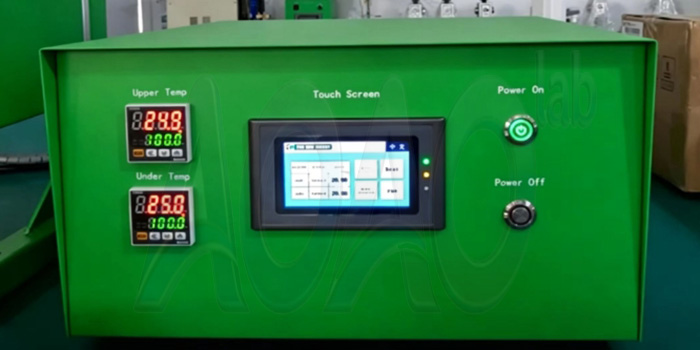

Temperature adjustment: The green number displayed on the thermostat indicates the current temperature setting value, the red word displayed indicates the current temperature detection value, press the "up, down" ammonium key to adjust the set temperature value.

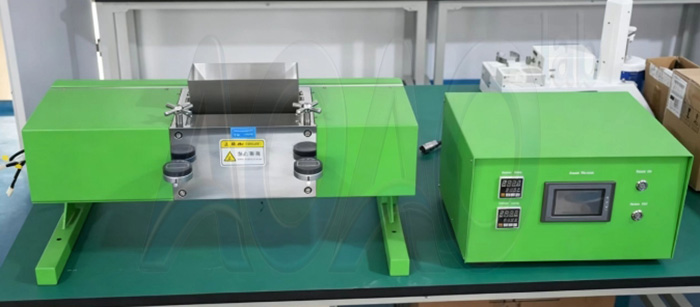

PRODUCT DISPLAY
