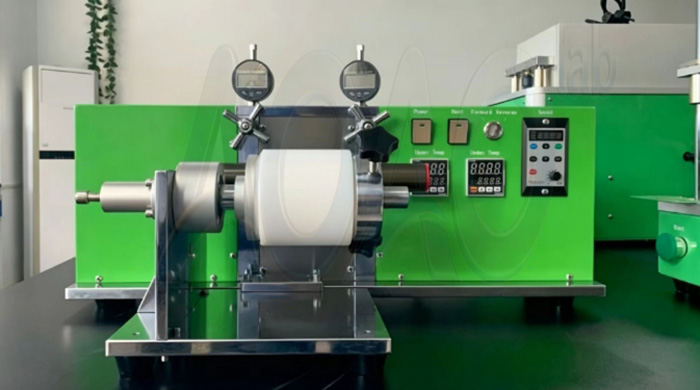

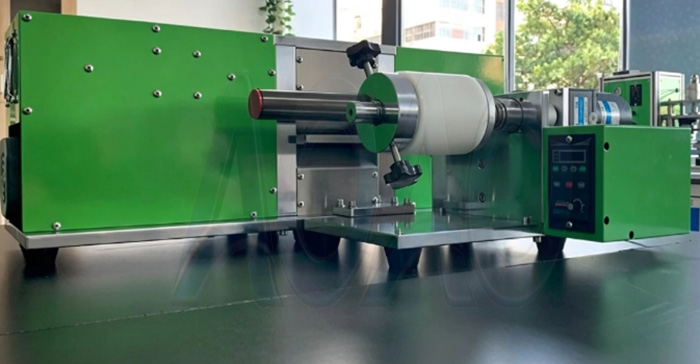

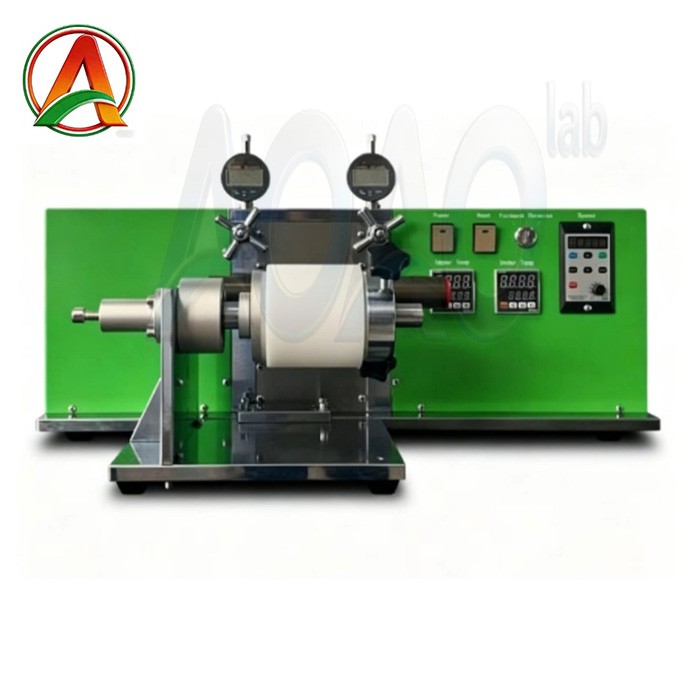

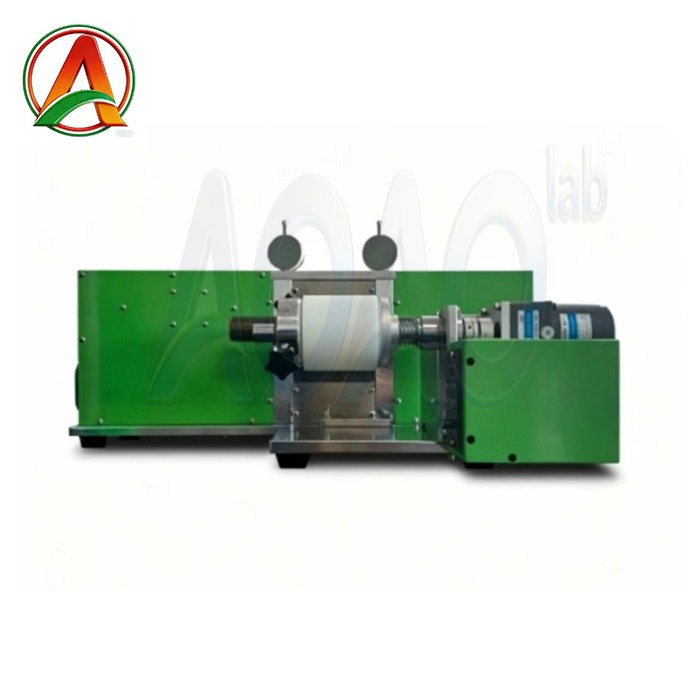

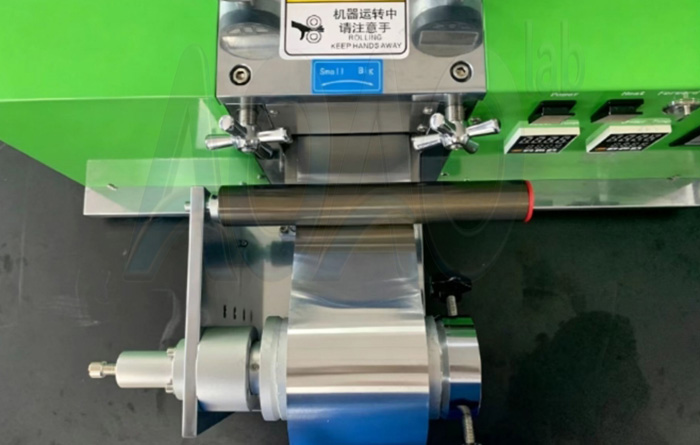

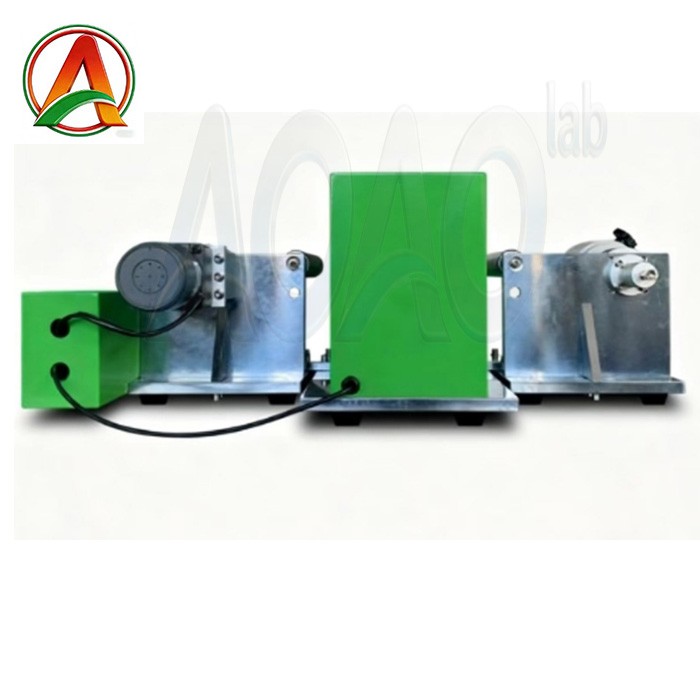

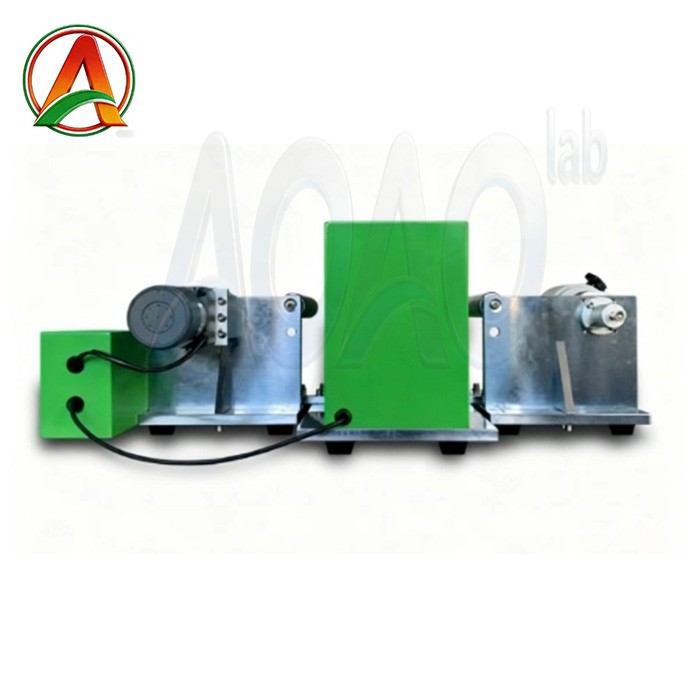

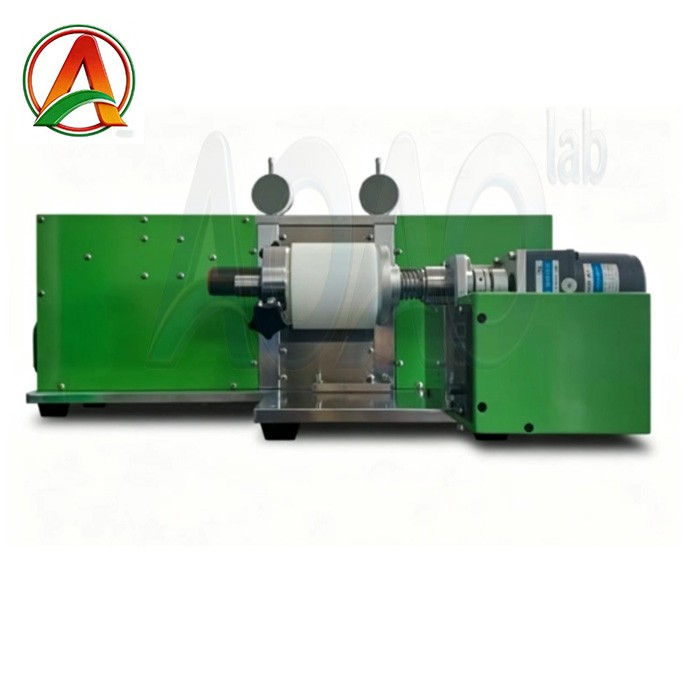

Roll to Roll Heating Calender For Battery Electrode

Roll to Roll Heating Calender For Battery Electrode

AOAO-JS250L-LX Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.

Brand:AOAO NEW ENERGY
item no.:AOAO-JS250L-LX
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

Roll to Roll Heating Calender For Battery Electrode

SPECIFICATIONS

Optional Customized Service: pressure real-time display function.
The default quotation for the product is for conventional equipment without pressure display. If pressure display function is required, it is necessary to communicate with the sales personnel in advance.

1 AOAO-JS250L-LX Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.

2 The hot roller press machine has 250mm width steel rollers. Such a roller can be heated up to 130°C.

Model	Hot Roller Press Machine
Source voltage	AC 110V-220V Customized, 50HZ
Power	2500W
Warranty	One Year limited warranty with lifetime support
Roller temperature	RT-130℃, adjustable and digital display
Roller diameter	2 - Φ100mm
Roller surface hardness	HRC62
Roller finish degree	>0.8
Rolling press thickness	0-2mm, Adjustable
Working speed	0-40mm/s
Rolling press width	Max 250mm
Dimension(LWH)	750220330mm
Weight	About 80kg
Accessories	1 “Customized power plug”-1pcs 2 “Dial gauge”-2pcs 3 “Socket head wrench”-1set 4 “Feeler gauge”-1pcs
