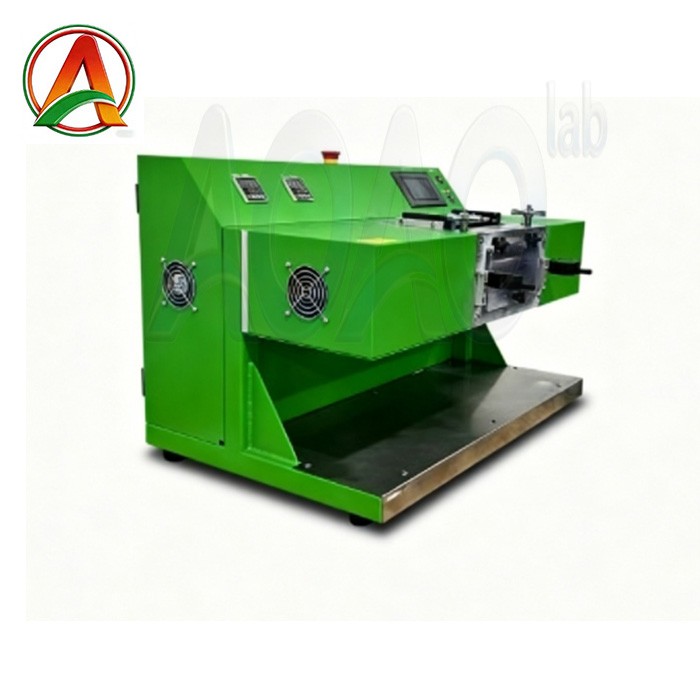

Integrated Double Servo Heating Calendering Machine for Dry Electrode Research

Integrated Double Servo Heating Calendering Machine for Dry Electrode Research

This calendering machine is mainly suitable for electric rolling of non-ferrous materials such as battery materials in the laboratory at a certain hot temperature. The rolling thickness is adjustable, and the operation is simple

Brand:AOAO NEW ENERGY
item no.:AOAO-HRE200-W
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

Integrated Double Servo Heating Calendering Machine for Dry Electrode Research

SPECIFICATIONS

Optional Customized Service: pressure real-time display function.

The default quotation for the product is for conventional equipment without pressure display. If pressure display function is required, it is necessary to communicate with the sales personnel in advance.

1. Product Introduction

It is especially suitable for ithium ion battery dry electrode sheet research.

Integrated Double Servo Heating Calendering Machine for Dry Electrode Research.jpg

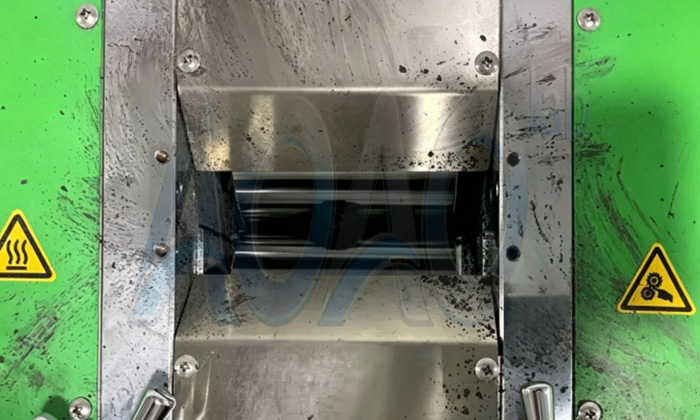

Dual servo control is accurate and can rotate asynchronously.

2. Main features

* High-precision dual servo control, asynchronous rotation.

* Heating rolling, upper and lower temperature controllers are independently controlled, temperature is adjustable, and digital display.

* Roller internal heating, precise temperature control.

* Can choose to work with or without heating.

* Roller hardness is high, and the surface is hard chrome plated.

* Adopt inclined blocks to adjust the gap between the sheets, good self-locking, high adjustment accuracy, electronic meter display.

* High rolling accuracy, roller cylindricality≤±2um.

* Digital display of sheet thickness and speed, accurate observation and adjustment of speed, exquisite and beautiful appearance.

* Electric rolling, automatic, can be operated in forward and reverse directions.

* Small size, easy operation, flexible and fast use.

* PLC screen control, automatic, accurate adjustment of degrees.

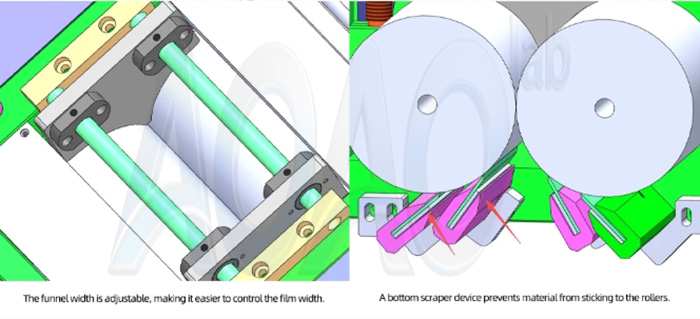

* Equipped with a funnel for convenient powder feeding.

3. Technical parameters

Roller diameter	Φ96mm
Roller cylindricity	≤±2um
Roller hardness	HRC62
Roller finish	0.8
Rolling thickness	0～3mm, Gap adjustable
Electrode width	0～200mm
Roller placement	Horizontal
Rolling temperature	Upper and lower rollers are heated independently, adjustable from room temperature to 130°C, digital display value, temperature resolution: 0.1°C
Temperature control accuracy	±2℃
Operation mode	electric
Voltage and frequency	AC220V/50Hz
Power	1.5KW
Feed speed	0～40mm/s
Machine size	L770mmW540mmH530mm
Equipment weight	105KG

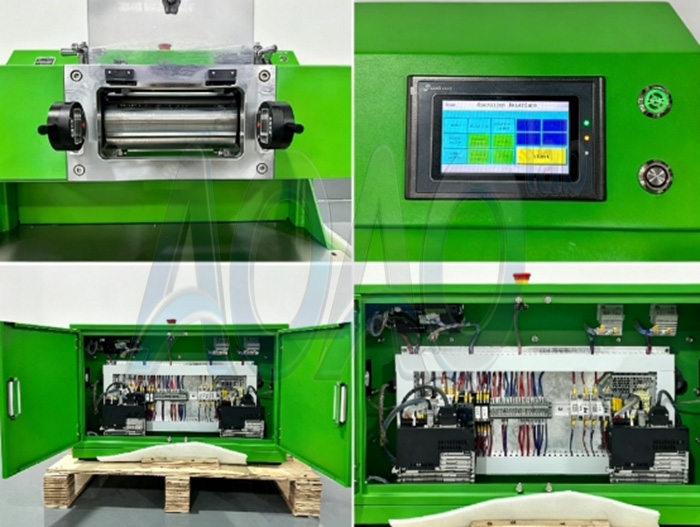

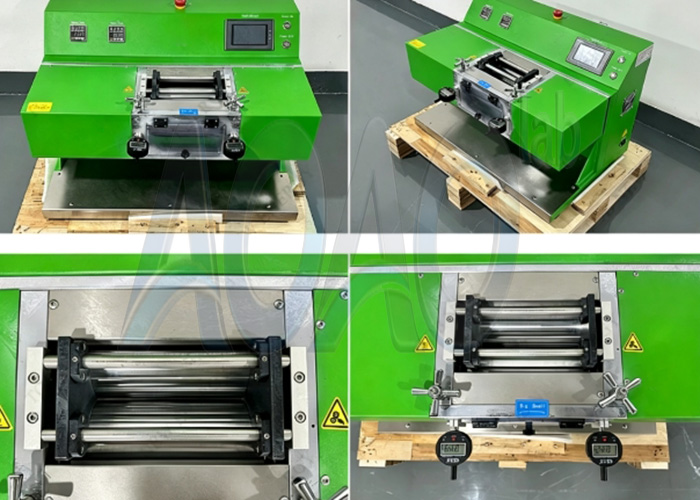

The upper and lower servos are precisely controlled, can rotate asynchronously, and the upper and lower speeds can be adjusted arbitrarily.
The thickness is displayed by a digital meter, and the digital display speed and adjustment are accurate and intuitive.
