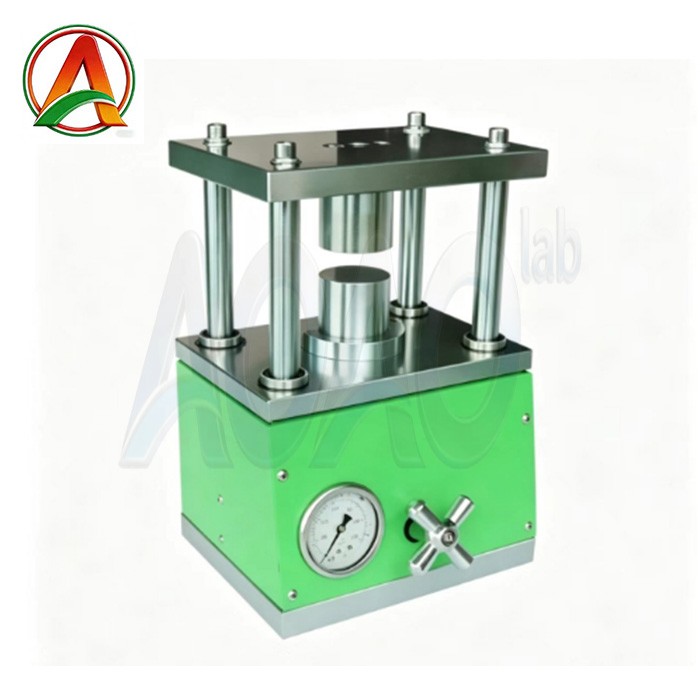

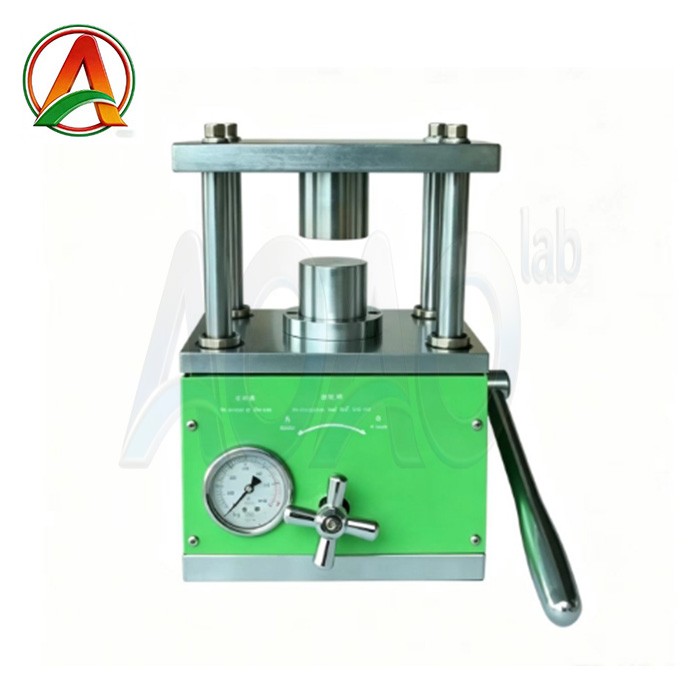

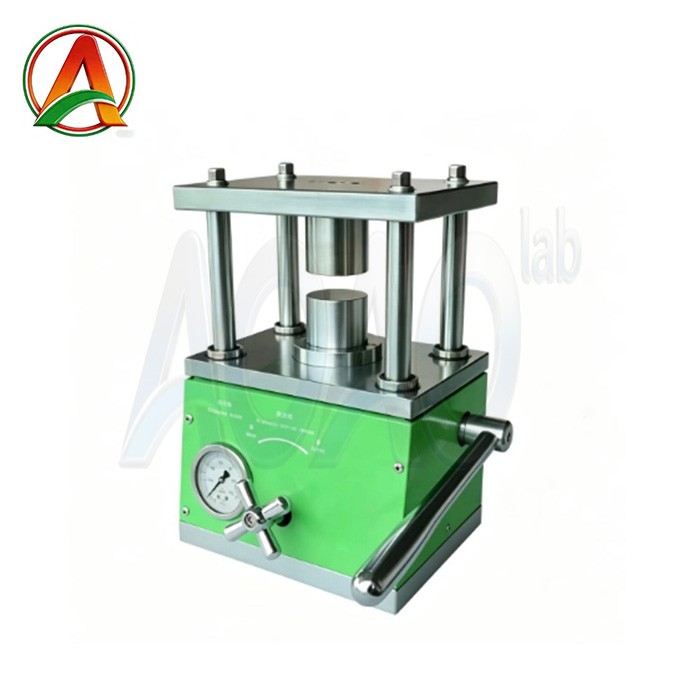

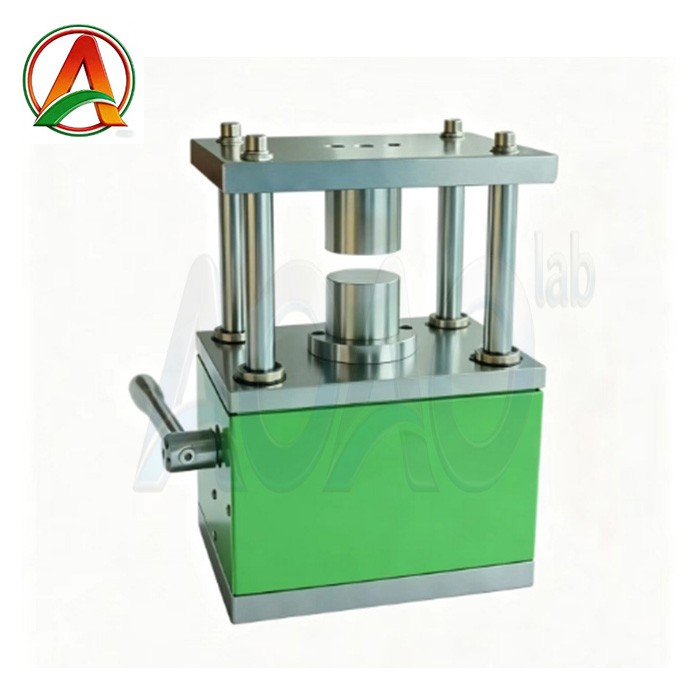

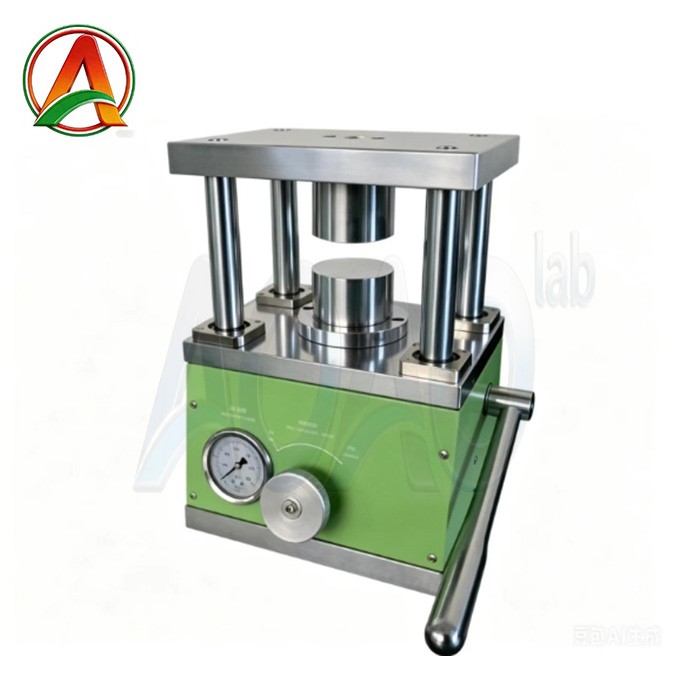

Hydraulic Press Machine For Coin Cell Electrode
AOAO-YP180 ModelHydraulic press machineis a desktop manual pressing machine for materials / chemistry research laboratories to prepare compound ceramic sample
item no.:AOAO-YP180
order(moq):1 set
Payment:L/C,T/T,Western Union, Paypal
product origin:China
shipping port:XIAMEN
Lead Time:7days
Hydraulic Press Machine For coin cell Electrode
SPECIFICATIONS
1 AOAO-YP180 ModelHydraulic press machineis a desktop manual pressing machine for materials / chemistry research laboratories to prepare compound ceramic sample.
2 TheHydraulic press machineis mainly used for laboratory tablet battery materials manual press, and Pressure powdery cake. It is mainly used for coin cell/ button battery electrode lab press.
3 TheManual press machinemould can be customized according to customer’s requirements.
Model | Hydraulic press machine AOAO-YP180 |

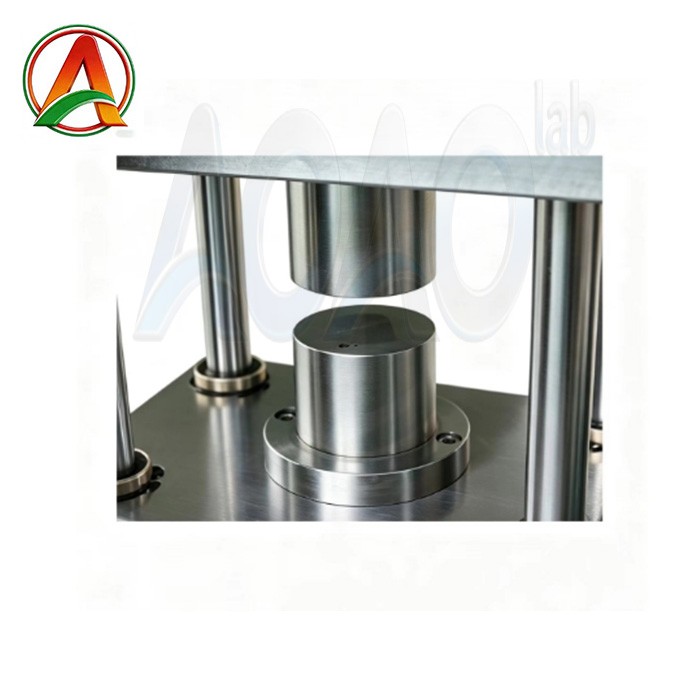

Press die size | Diameter 68mm, customized |
Press stroke | 30mm |
Advantages | By using aluminum alloy and high strength steel, surface after the environmental protection electroplating processing will never rust Using high quality imported mould material |
Rocker Pressure | <6kg |
Max Pressure | 200kg/cm2 (The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage) |
Working Pressure | 80-100kg/cm2 |
Dimension(L*W*H) | 232*165*320mm |
Weight | 28kg |
Shipping Weight | 35kg |
Warranty | One Year limited warranty with lifetime support |

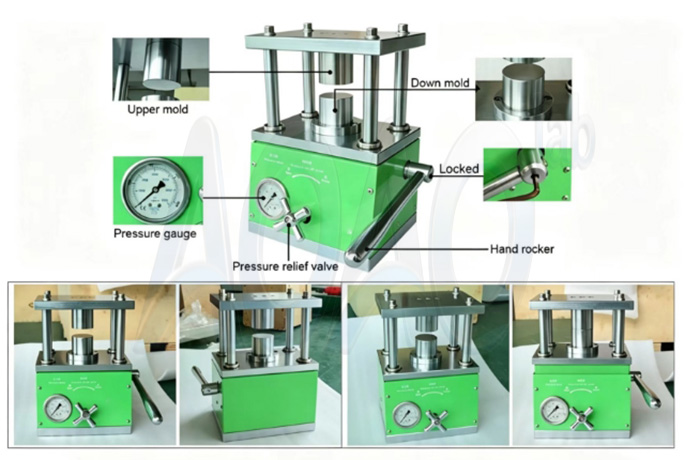

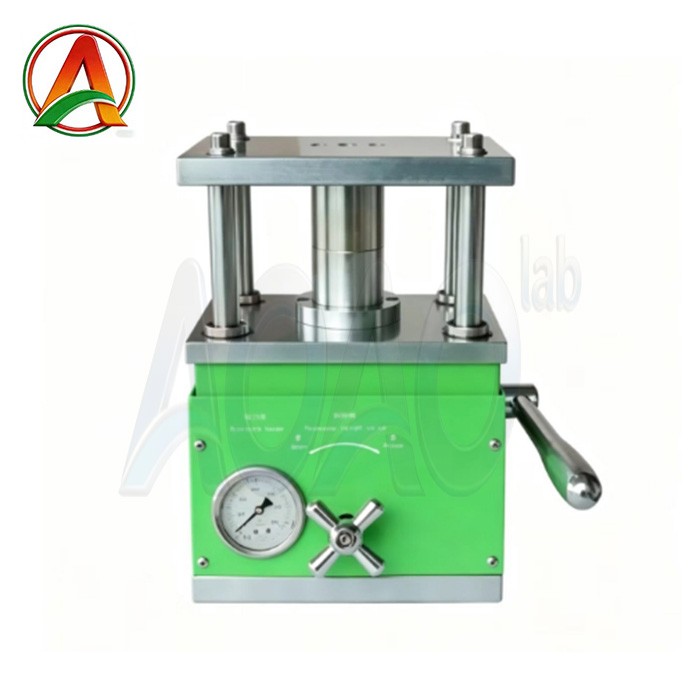

PRODUCT DISPLAY

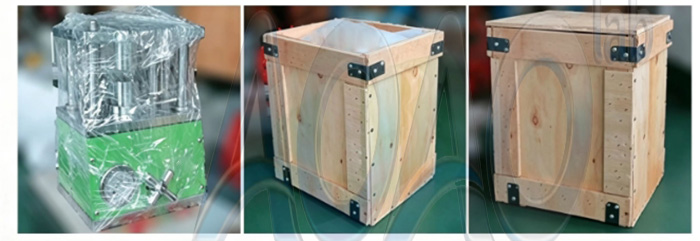

PACKAGE
