Electric Lab Roll Press Machine 100mm Width

Electric Lab Roll Press Machine 100mm Width

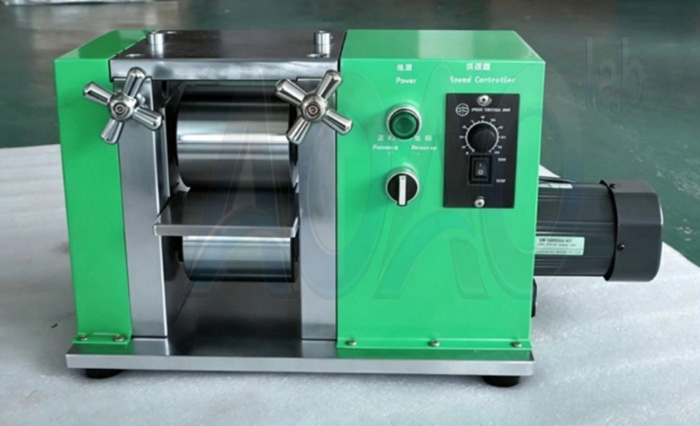

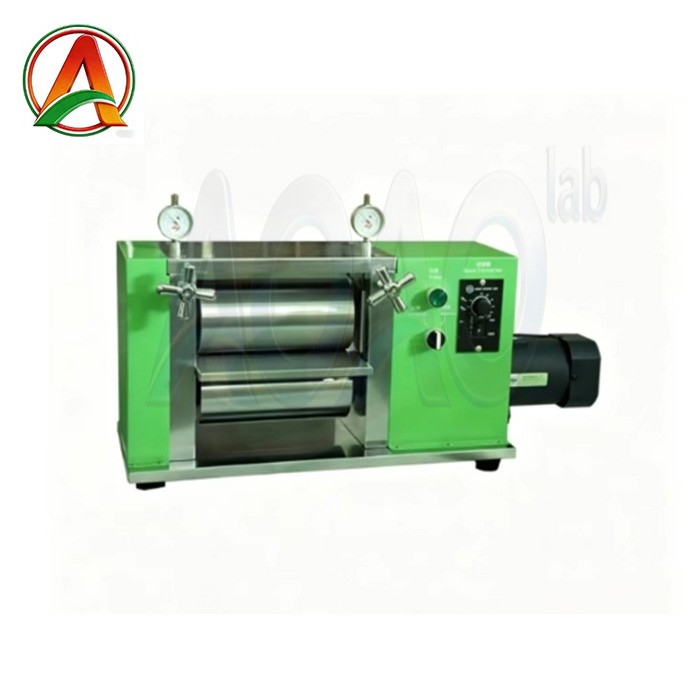

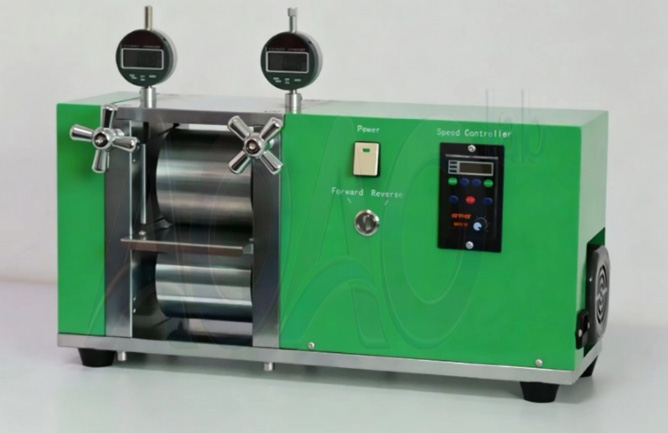

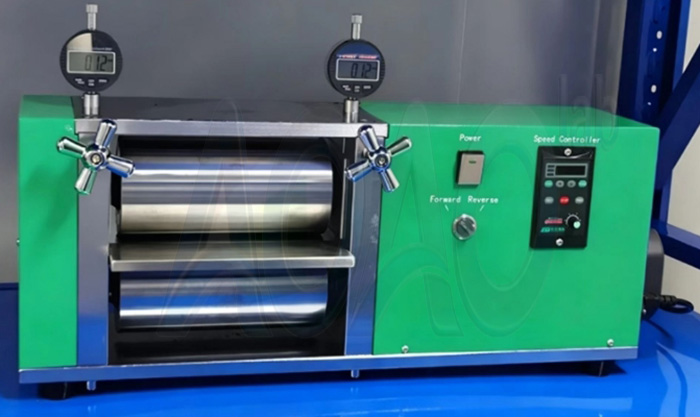

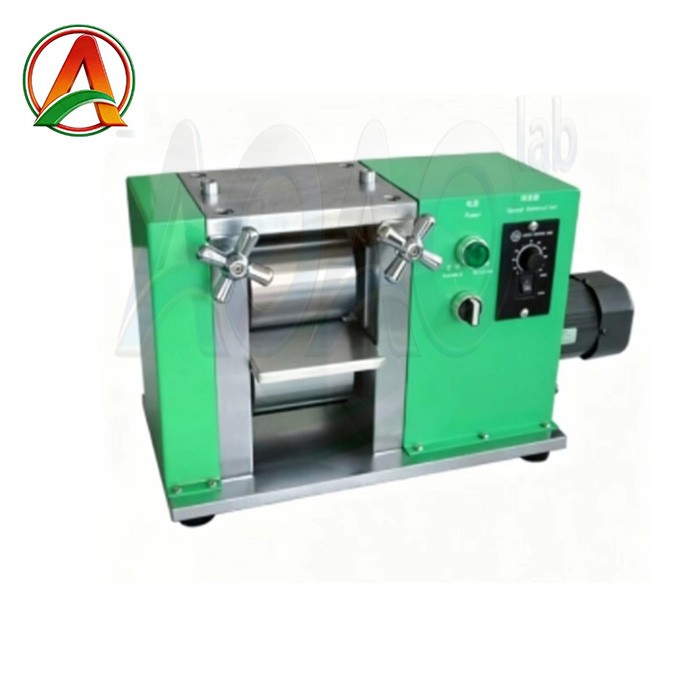

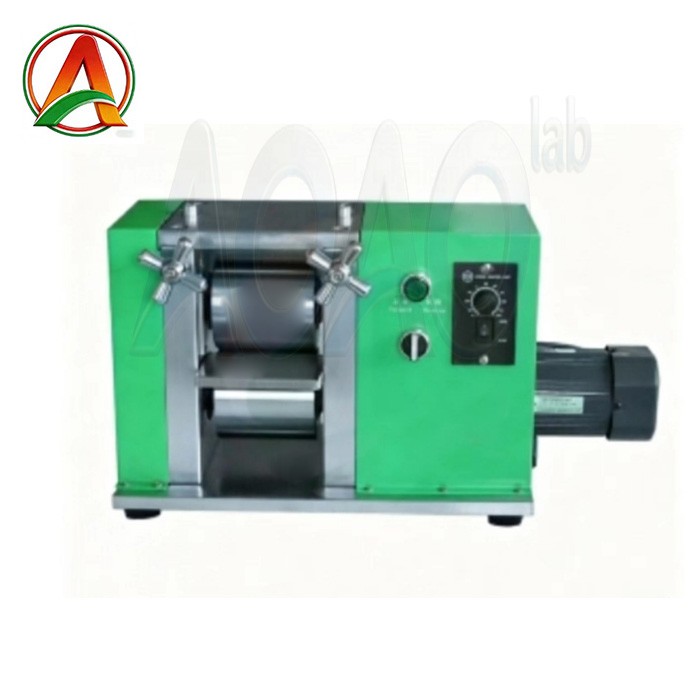

AOAO-DG-100L Lab Roll Press Machineis a compact precision electricrolling press machine.It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer

Brand:AOAO NEW ENERGY
item no.:AOAO-DG-100L
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN
Lead Time:7

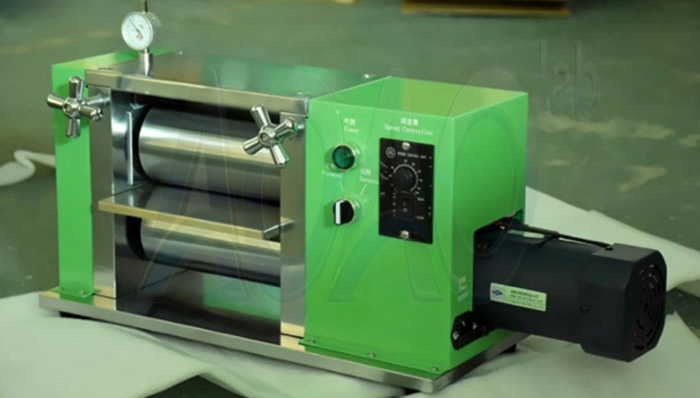

Electric Lab Roll Press Machine 100mm Width

SPECIFICATIONS

Optional Customized Service: pressure real-time display function.
The default quotation for the product is for conventional equipment without pressure display. If pressure display function is required, it is necessary to communicate with the sales personnel in advance.

AOAO-DG-100L Lab Roll Press Machineis a compact precision electricrolling press machine.It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer. Thislab roll press machineis an idealrolling pressfor adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

Model	4" Width(100mm) Lab Roll Press Machine AOAO-DG-100L
Working Voltage	110V / 220V AC single phase selectable
Power	120W Total
Warranty	One year limited manufacture warranty with lifetime support
Structure	1 Heavy duty steel frame, gears and handle 2 Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 62) with Cr electroplated coating 3 Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum 4 Equipped with a transparent protective plate, the use of security
Roller	Dimensions: 96mm(Dia.) x 100mm(W) Material: Made from hardened tool steel (HRC > 62) with Cr electroplated coating. With finish > 0.8
Rolling press accuracy	≤±0.005

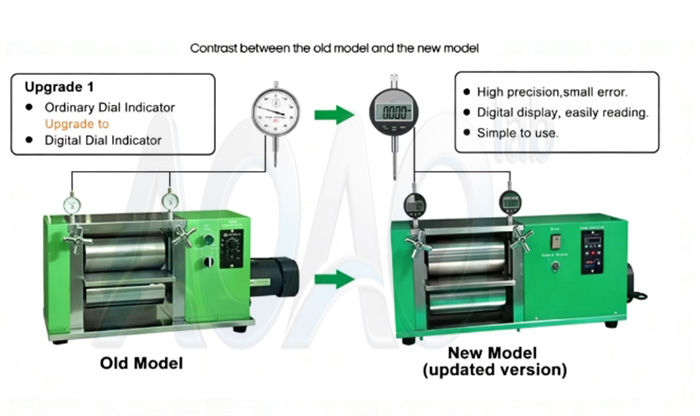

Rolling press thickness	0-2mm adjusted with Dial gauge
Rolling press width	Max 100mm

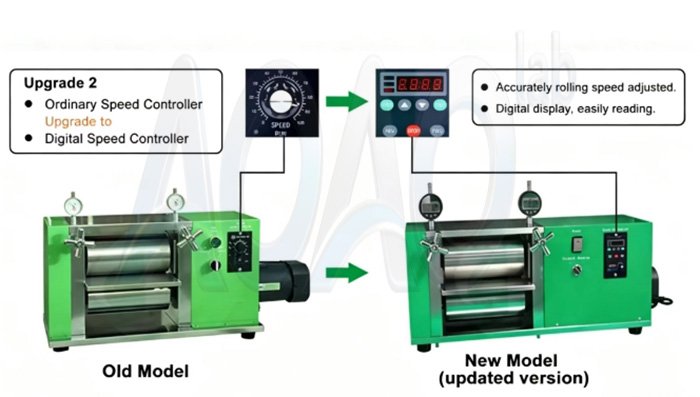

Rolling press speed	0-40mm/s adjustable
Product Dimensions	650 mm(L) x 280mm(W) x 300mm(H)
Weight	55kg (180 lbs)
Application Notes	This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise. 1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting 2 Coated Rust-proof oil if machine were to be unused for a long period of time 3 The minimum thickness of the rolled sheet should depend on the physical property of the materials. Here are some results from our test: ElectrodeSizeOriginal thicknessFinished thicknessLiFePO4double sides50mm Width x 260mm Length0.205mm0.09mmLiMn2O4double sides50mm Width x 260mm Length0.205mm0.09mmCopper foil + graphite(single side)75mm Width x 240mm Length0.09mm0.04mm Sample testing is available upon customer's request
