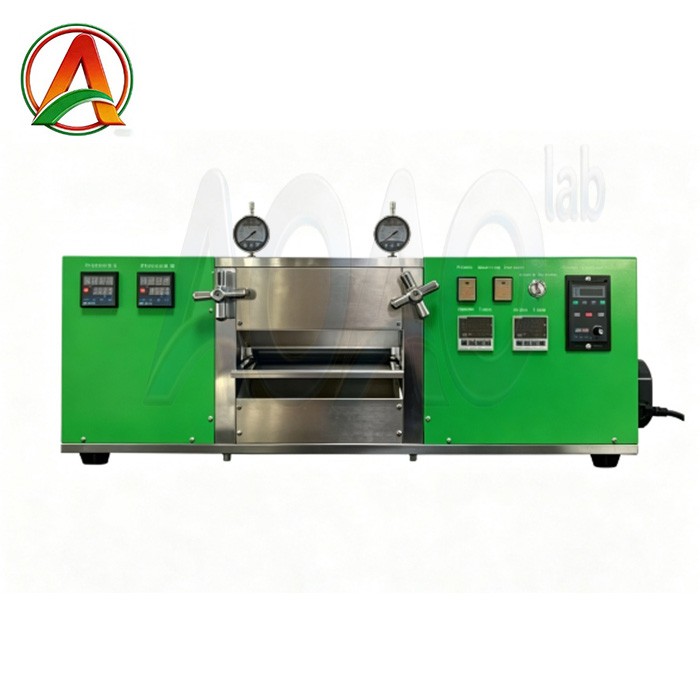

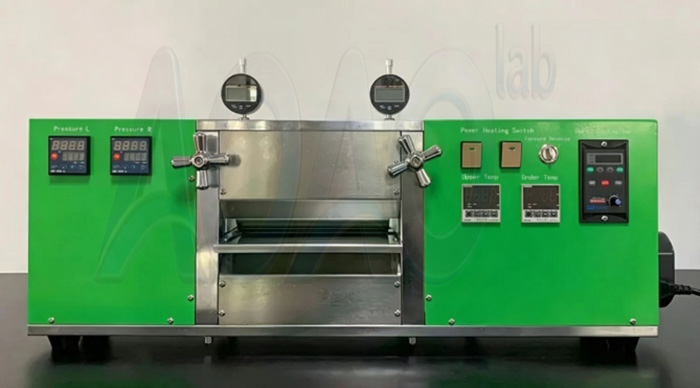

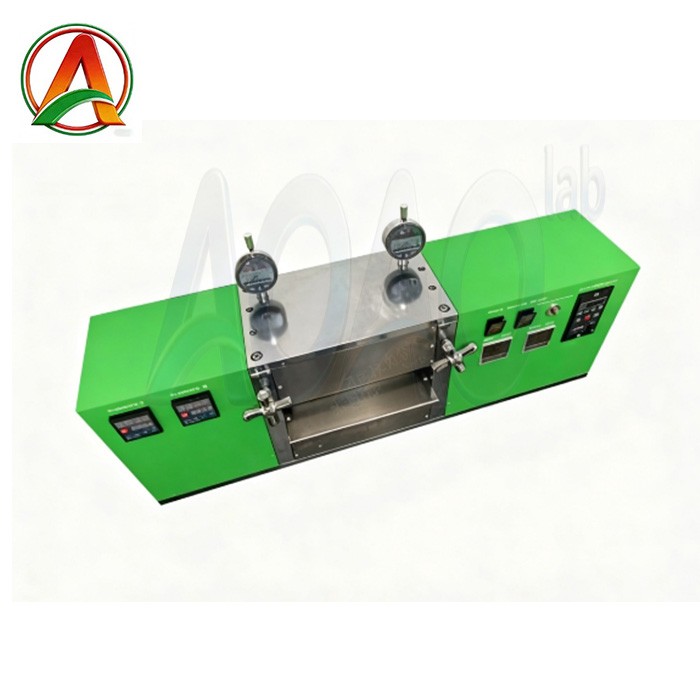

200L Hot Roller Press Machine For Battery Electrode

AOAO-JS-200L Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating

Brand:AOAO NEW ENERGY
item no.:AOAO-JS-200L
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

200L Hot Roller Press Machine For Battery Electrode

SPECIFICATIONS

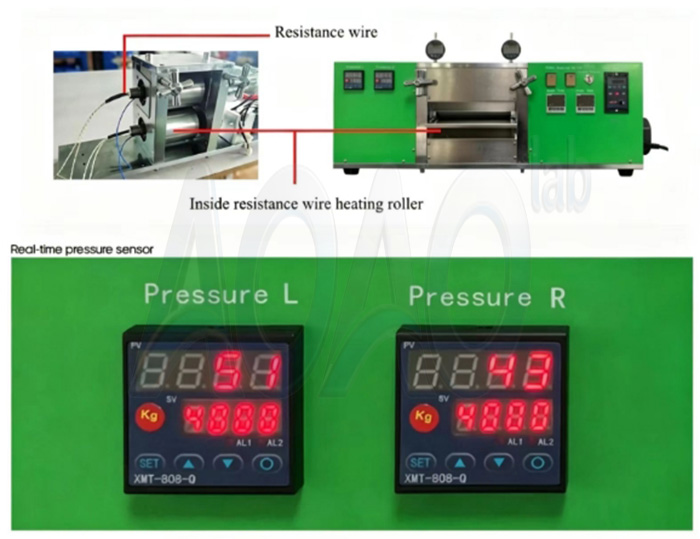

Optional Customized Service: pressure real-time display function.

1 AOAO-JS-200L Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.

2 The hot roller press machine has 200mm width steel rollers, Max 200mm for cold press, Max 180mm for hot press, the roller can be heated up to 130°C.

Model	Hot Roller Press Machine AOAO-JS-200L
Source voltage	AC 110V-220V Customized, 50HZ
Power	2000W
Warranty	One Year limited warranty with lifetime support

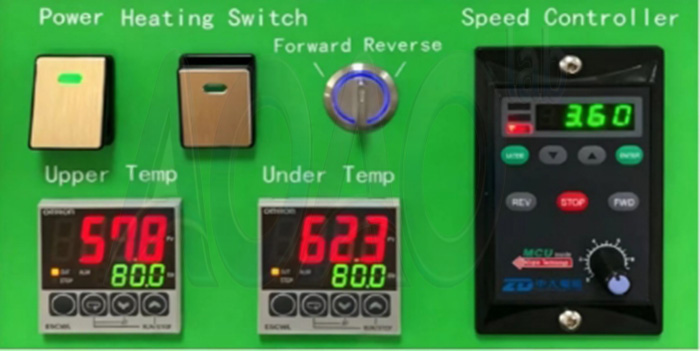

Roller temperature	RT-130℃, adjustable and digital display
Roller diameter	2 - Φ96mm
Roller surface hardness	HRC62
Roller finish degree	>0.4
Rolling press thickness	0-3mm, Adjustable
Working speed	0-40mm/s
Rolling press width	Max 200mm for cold press, Max 180mm for hot press

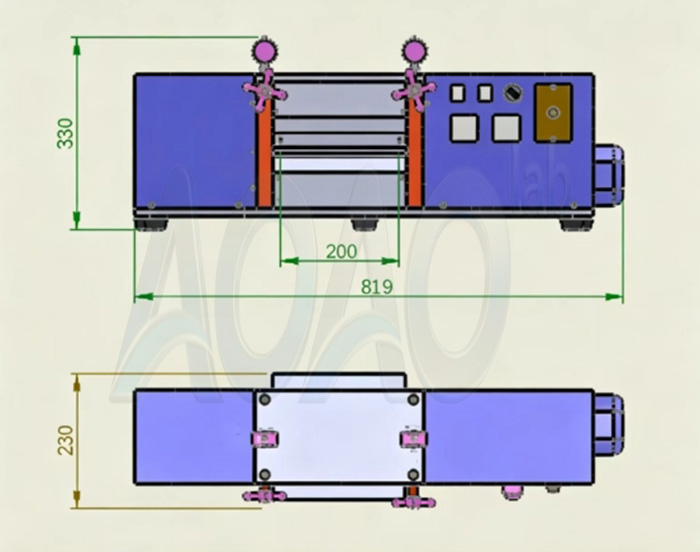

Dimension(LWH)	819230330mm
Weight	About 85kg

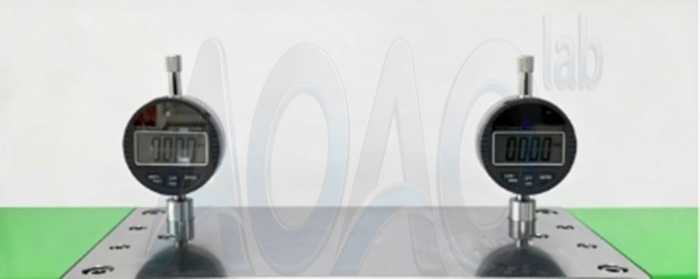

Accessories	1 “Customized power plug”-1pcs 2 “Dial gauge”-2pcs 3 “Socket head wrench”-1set 4 “Feeler gauge”-1pcs
