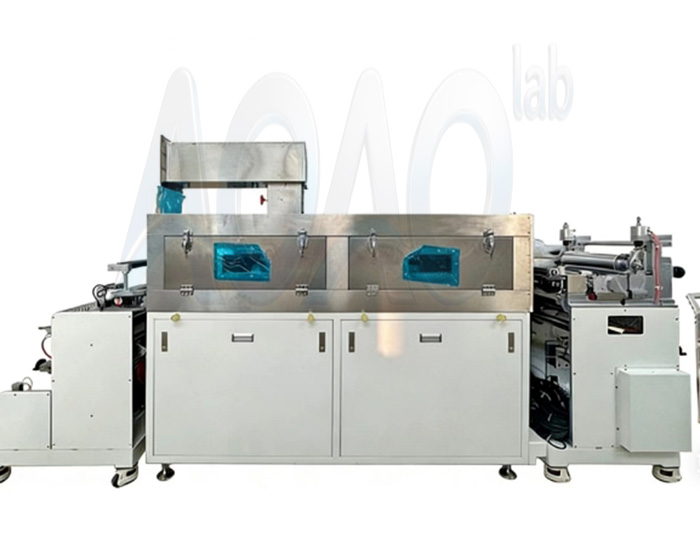

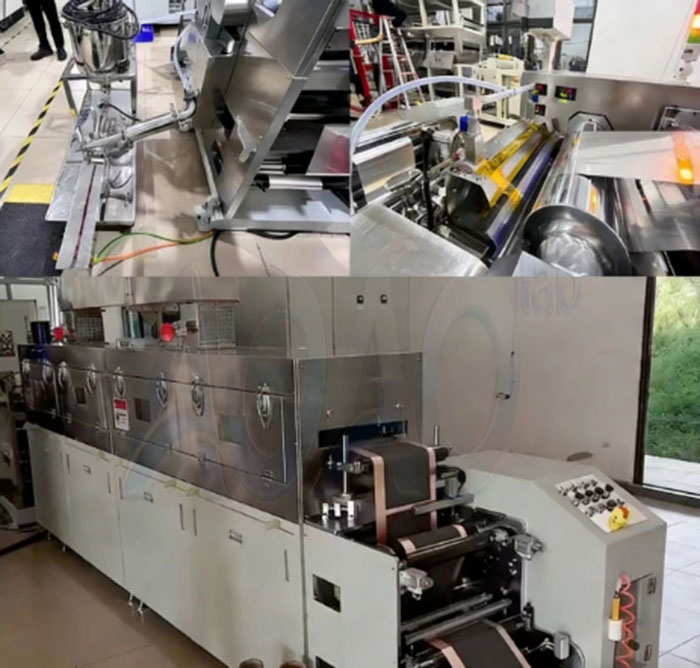

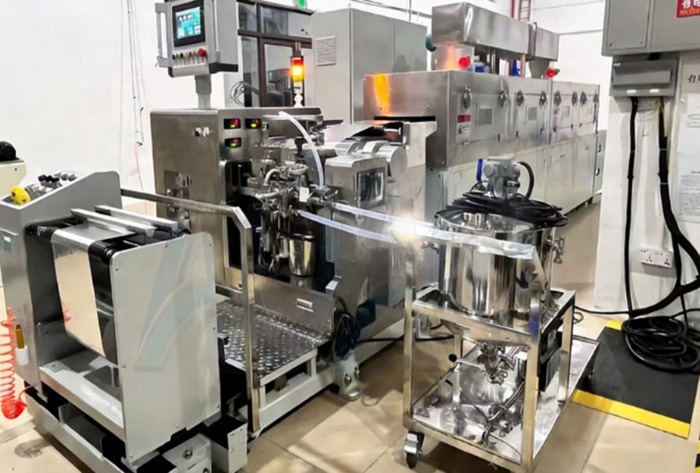

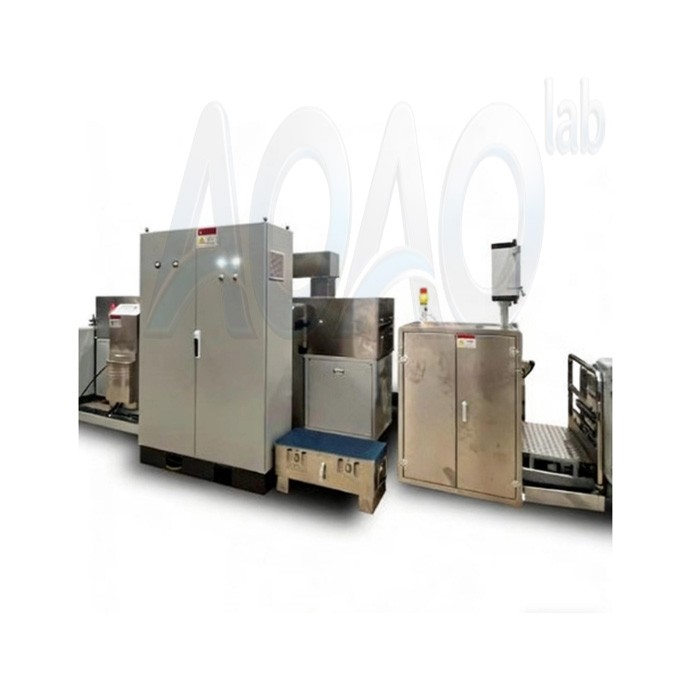

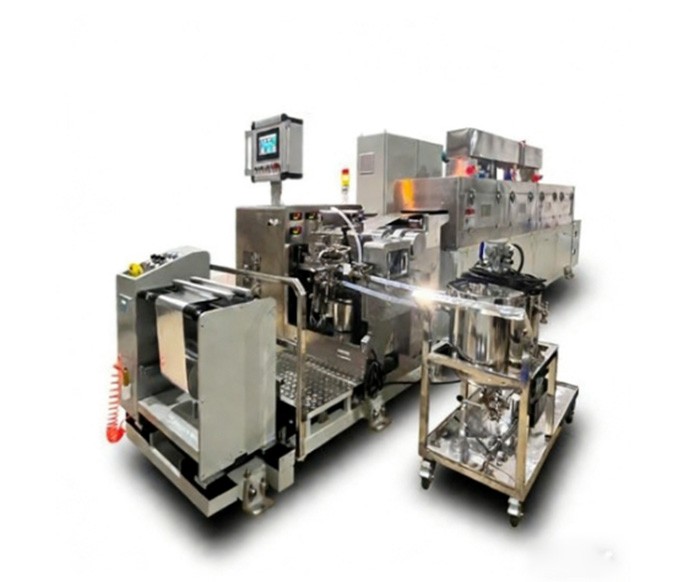

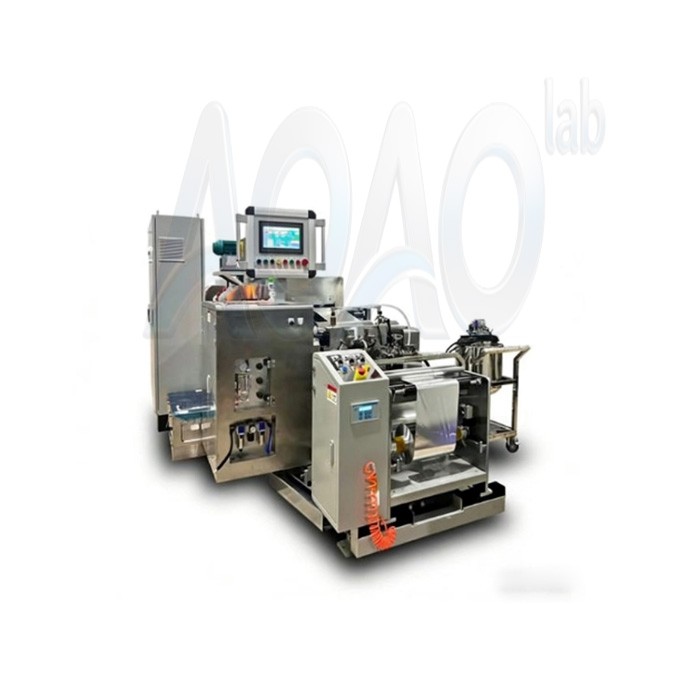

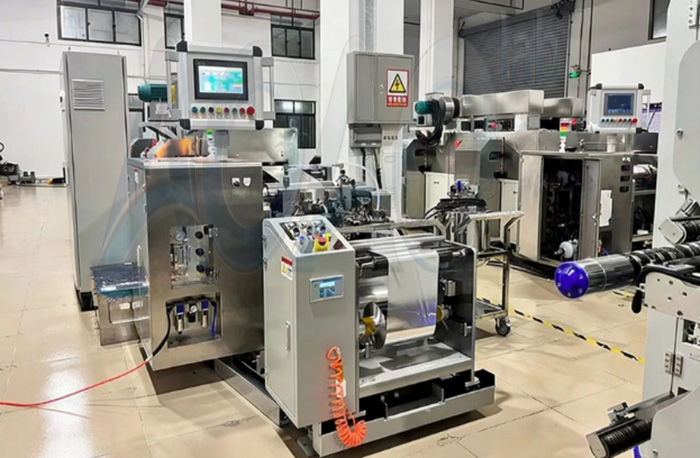

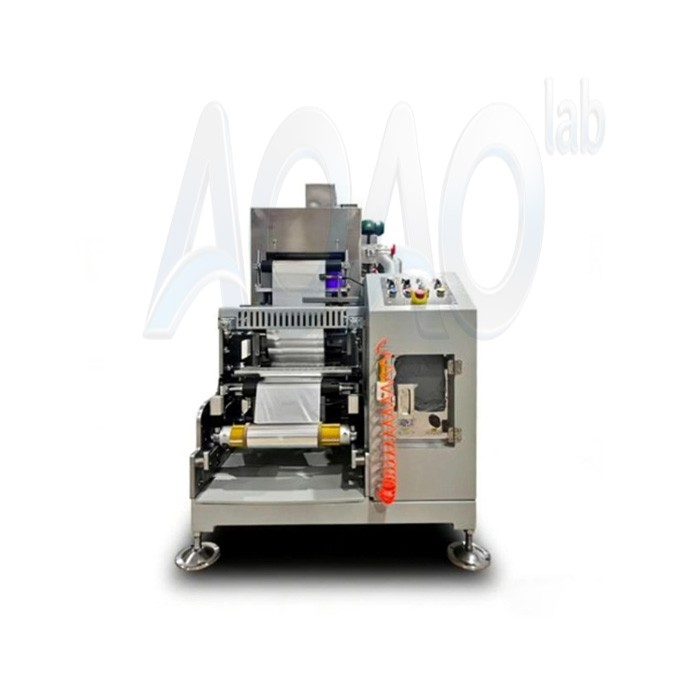

Single Side Slot Die Coating Machine For Lab

Single Side Slot Die Coating Machine For Lab

This AOAO-JS400-4 single side slot die coating machineis used for precision coating of cathode and anode

Brand:AOAO NEW ENERGY
Item No.:AOAO-JS400-4
Order(Moq):1set
Payment:L/C,T/T
Product Origin:China
Shipping Port:XIAMEN

Single Side Slot Die coating machine For Lab

SPECIFICATIONS

Equipment Functions and Principles

This single side slot die coating machineis used for precision coating of cathode and anode electrode of lithium-ion batteries. It mainly consists of unwinding part, machine head part, oven part, traction part, winding part, and electric control part. Evenly coat the stirred slurry onto the substrate, ensuring that the size, weight, etc. are within the process range. After drying treatment, roll it up and prepare for the subsequent process.

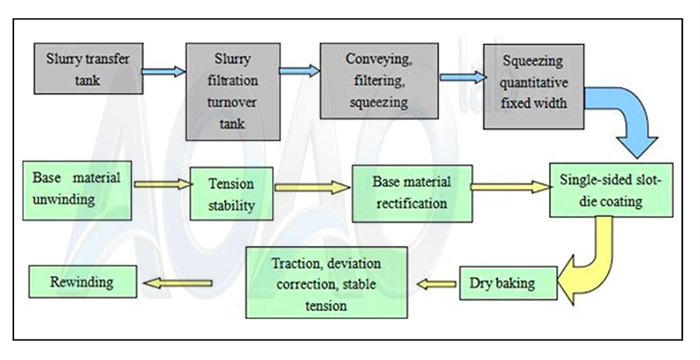

Equipment Process Flow Diagram

Base material parameters

Item	Cathode	Anode
Base material	Al foil	Cu foil
Width(mm)	160～320	160-320
Thickness(µm)	8～15	6～12

Remark：The base material used for acceptance should not have any looseness, uneven thickness and weight, surface oil stains or other phenomena that affect the performance of the tape and coating.

Slurry parameters

Item	Cathode	Anode	Tab glue
Material	LFP, NMC ,etc	Graphite	Al2O3、boehmite
Solvent	NMP	DI-Water	NMP
Solids（wt%）	52～65(LFP) 60~76(NMC)	42～50	30～40%
Specific gravity of slurry（g/cm3）	1.5～2.5	1.0～2.0	-
Viscosity（mPa.s）	3500～12000	2500～8000	1000～3000
Remark： 1) Solid content of the same batch of slurry: fluctuation ≤ ±0.5%. 2) The viscosity of the same batch of slurry: fluctuation ≤ ± 500mPa. s, any temperature fluctuation within the 22-30 range ± 2℃. 3) During acceptance, one type of cathode slurry; one type of anodeslurry.

Coating parameters

Item	Cathode	Anode
Coating mode	Continuous, Intermittent, Stripe coating	Continuous, Intermittent, Stripe coating
Coating width(mm)	150-300	150-300
Dry thickness of single-sided coating（µm）	70～350	60～350
Single coating weight (g/㎡)	30～250	20～200
Coating speed(m/min)	0.5~1	0.5~1.5

Explanation: The coating speed is related to product characteristics (material system, coating thickness, solid content, temperature), and the maximum coating speed given in the table cannot meet special coating process requirements.

Equipment specifications and parameters

No	Item	Content
1.	Roll surface width	400mm
2.	Mechanical speed (unloaded)	Max.5m/min
3.	Unwinding specifications	Roll diameter: Max φ 300mm；Load bearing: Max.100kg. Roll specification: inner diameter of 3 inches, approximately 76.2mm, length of 400 ± 3mm Roll material: metal, ABS plastic
4.	Winding specifications	Roll diameter: Max φ 300mm；Load bearing: Max.100kg. Roll specification: inner diameter of 3 inches, approximately 76.2mm, length of 400 ± 3mm Roll material: metal, ABS plastic
5.	Oven heating method	Electrical heating
6.	Oven structure	1 section×2m/section=2m，single layer
7.	Oven temperature	Max.150℃

Main components of the equipment

Name	QTY	Remark
Unwinding unit	1set	Single station, automatic unwinding, manual roll changing
Coating unit	1set	/
Coating feeding unit	1set	Including mixing drum, pump, filter, valve, etc
Oven unit	1set	Single layer，1 section×2m=2m
Traction unit	1set	/
Winding unit	1set	Single station, automatic unwinding, manual roll changing;
Controller	1set	/

Optional Function

Edge Coating	(1) The positive electrode is equipped with edge gluing mechanism, screw pump + dispensing head gluing mode, gluing parameters are as follows:
	(2) Coating glue width: 3-10mm±1mm
	(3) Coating glue thickness: 30-70um±15um single-side dry thickness
	(4) Slurry requirements: filter more than 150 mesh, viscosity 1500±300PCS, solid content 40%±5%
	(5) Covering area: 0.2~1.0mm (no metal leakage, no drum edge)
	(6) Gluing feeding system: barrel volume 10L, single-core capsule filter installed in an independent trolley Number of adhesive strips: 1 to 4
NMP Solvent Concentration Alarm	(1) The second section of the positive electrode box is equipped with an NMP concentration alarm device, a total of 1 set, and installation positions are reserved for the remaining sections.
	(2) When the concentration exceeds 35%, the equipment should give an audible and visual alarm.
	(3) When the concentration exceeds 50%, the equipment automatically stops running, and the exhaust fan automatically operates at maximum frequency.
	(4) Anode not configured, reserved installation interface.
