Battery Electrode Continuous Scraper Coating Machine

Battery Electrode Continuous Scraper coating machine

SPECIFICATIONS

This Battery Electrode Continuous Scraper Coating Machine can be used for continuous coating proofing or small-scale production experiments. This coating machine is dedicated to the continuous coating process of positive and negative electrodes of lithium-ion batteries. It is suitable for small-scale lab in colleges and universities and enterprises. It can also be used for ceramic films, crystal films, special nano films, etc. The machine body is made entirely of stainless steel, which is beautiful, durable, and easy to operate.

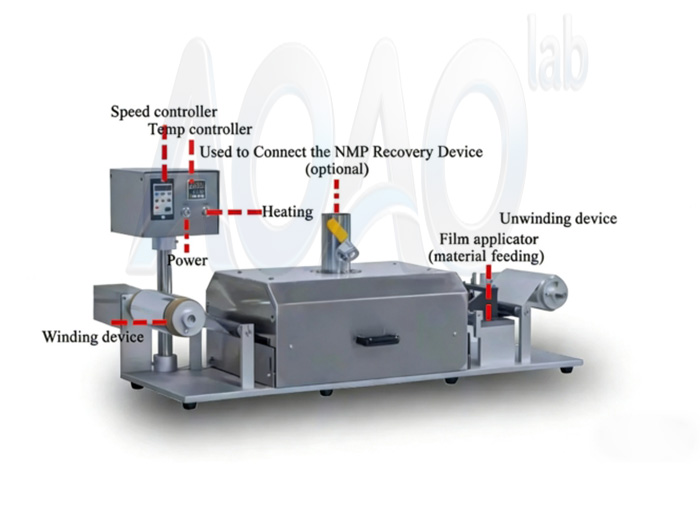

Standard configuration:

Equipped with film applicator, width 150mm (film width can be selected according to customer requirements)

Features

· The whole coating machine is assembled with high-precision modular coating station structure.

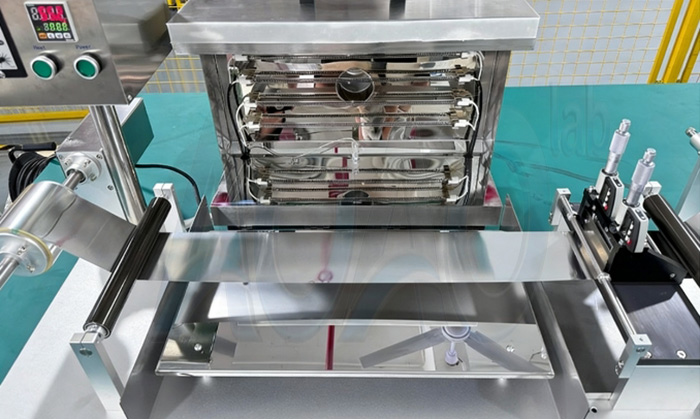

· The heating cover digital display temperature controller has independent high-precision PID temperature control mode, and the heating tube is infrared heating, which effectively ensures the uniformity of material drying.

· Control the coating thickness by precisely fine-tuning the coating gap of the upper scraper.

· The coating width is adjusted by two baffles in the slot. Automatic winding. (The coating width can be customized by the customer).

Maintenance methods and precautions

1. Before each work, use a soft cloth with alcohol to carefully wipe the coating head and the body to keep it clean.

2. Do not collide with the coating head, differentiator and other high-precision parts, handle with care, and adjust the differentiator symmetrically and evenly on the left and right.

3. Regularly check the screws, nuts, pins and other fasteners in various parts to prevent loosening and prevent product quality accidents.

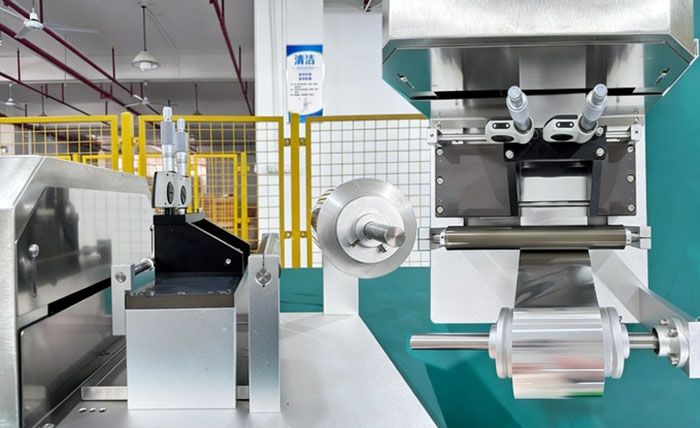

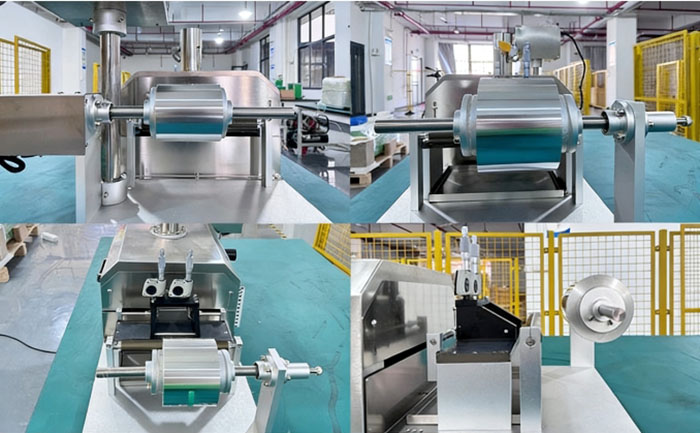

PRODUCT DISPLAY
