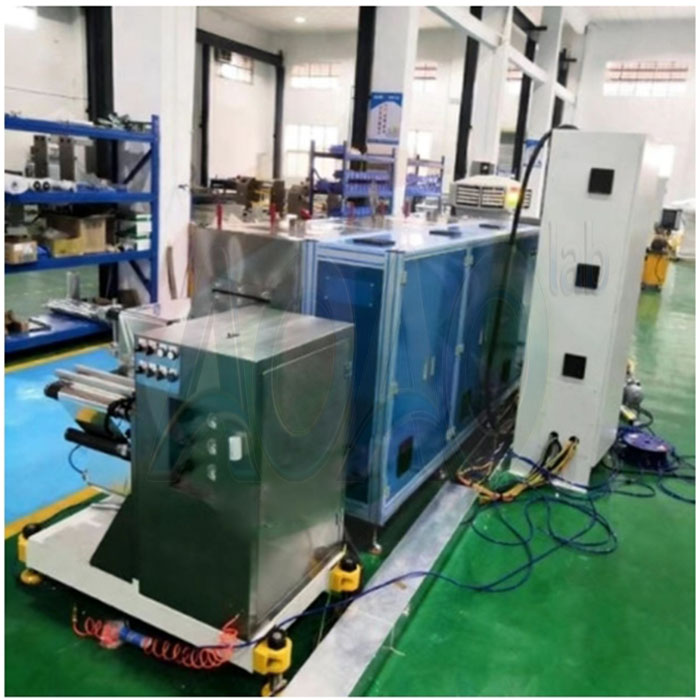

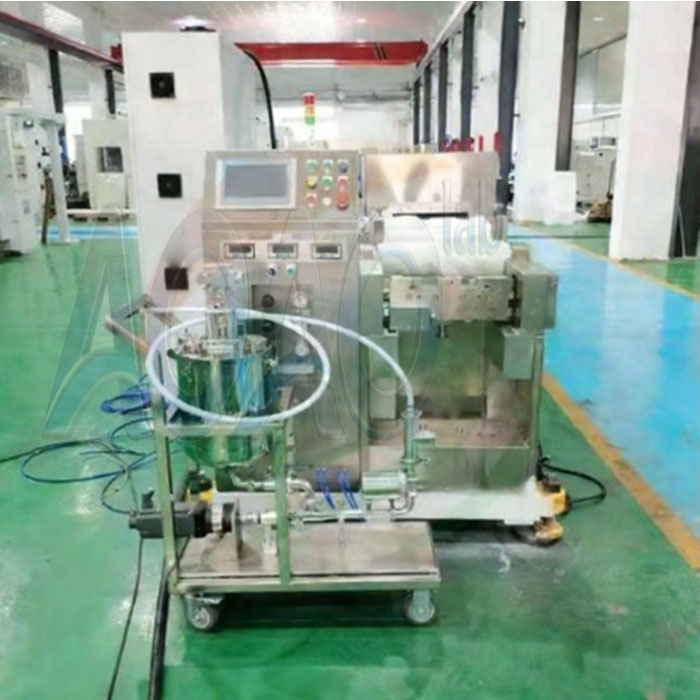

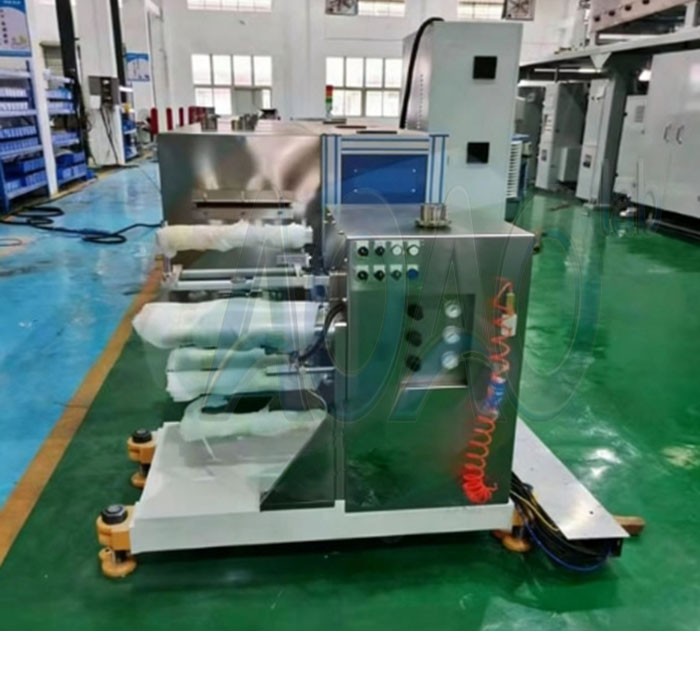

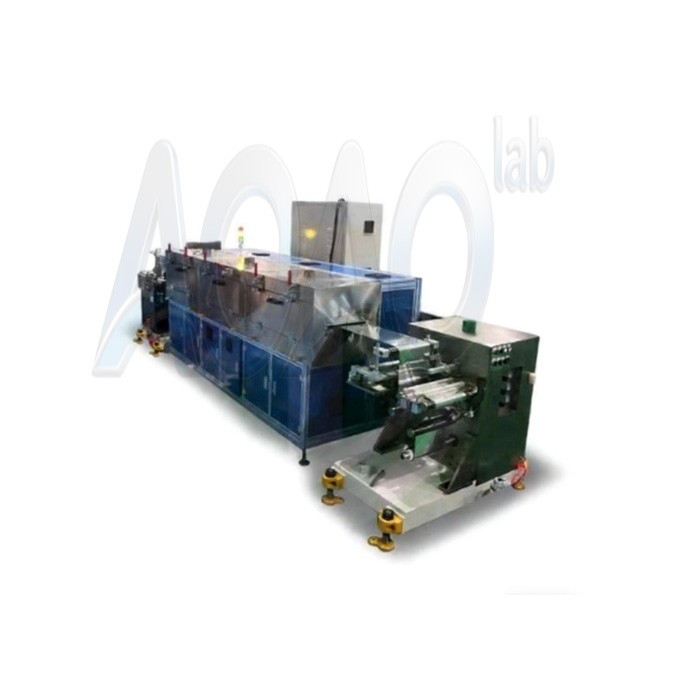

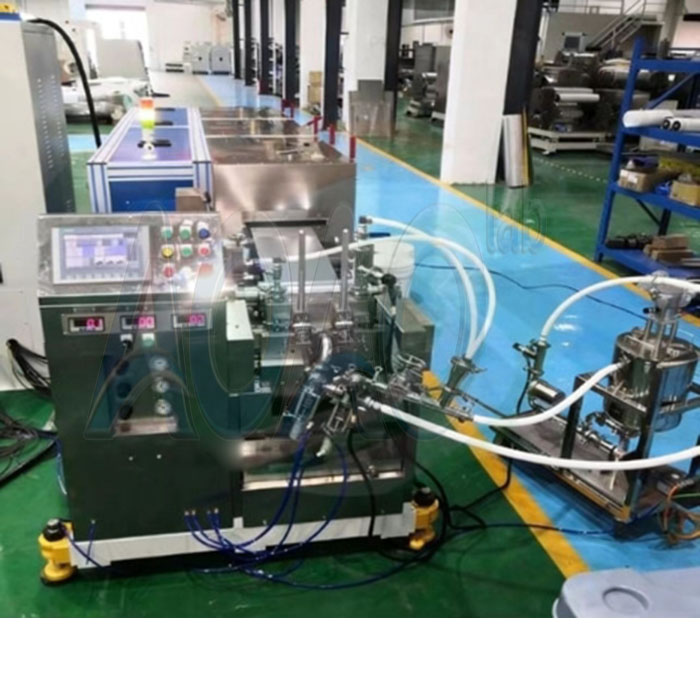

AOAO-JS350-3.0 coating machine is a professional lithium battery electrode coating equipment.

Brand:AOAO NEW ENERGY
Item No.:AOAO-JS350-3.0
Order(Moq):1
Payment:L/C,T/T
Price:$250000/Set
Product Origin:China
Shipping Port:xiamen
Lead Time:90 days

Lab Small Battery Electrode Film Roller Coater Slot Die coating machine Manufacturer

SPECIFICATIONS

1.Applicable to the coating process of oily or water-based lithium iron phosphate, oily lithium cobaltate, NMC, lithium manganate, lithium nickel cobalt manganese oxide, oily or aqueous negative carbon graphite, lithium titanate and other slurry systems;

2.Using fully automatic PID closed-loop tension control system, the tension control accuracy can reach ±1N level;

3.Imported standard parts such as Siemens PLC control system and high-precision servo motor to ensure the high consistency and stability of the coated product in terms of areal density and size. The proportion of imported standard parts to the standard parts of the whole machine is as high as 85%.

NO.	Items	Technical parameters	Remark
1.	Suitable system	Oily or water system lithium iron phosphate, lithium cobaltate, lithium manganate, NMC, lithium nickel cobalt manganese oxide, lithium titanate, carbon graphite and other systems
2.	Operating substrate thickness	Al foil：10～50um Width :150-300mm Diameter:Max:250mm Weight:Max 500kg
2.	Operating substrate thickness	Cu foil：10～50um Width :150-300mm Diameter:Max:250mm Weight:Max 500kg	Both suitable for single side sooth and double side smooth.
3.	Roller width	350 mm
4.	Coating width	100~280mm
5.	Equipment mechanical running speed	3m/min
6.	Equipment coating speed	0.1-1m/min	Depending on the drying condition
7.	Suitable viscosity of slurry	2000~16000 Cps
8.	Single side coating dry thickness range	50-250μm
9.	Minimum intermittent length	5mm
10.	Multistage minimum coating length	20mm
11.	Solvent properties	Oil solvent NMP (s.g=1.033,b.p=204℃)
11.	Solvent properties	Aqueous solvent H2O/NMP (s.g=1.000,b.p=100℃)
12.	Suitable solid content	Cathode S．C. 60%±20%
12.	Suitable solid content	Anode S．C. 50%±10%(PVDF) S．C. 50%±5%（SBR）
13.	Proportion	Cathode 1.5—2.5g/cm2 Anode 1～1.8g/cm2
14.	Coating mode	Bilayer front and back 3 different spaced intermittent transfer coating / second side automatic tracking / continuous transfer coating
15.	Direction of substrate running	Forward coating, substrate positive, reverse empty foil operation
16.	Methode of change the roller	By manual
17.	Min coating thickness	20 um,accuracy 1%,precision coating thickness (dry film) is±2 um or better throughout the coating length and width.
18.	Coating length	300 m
