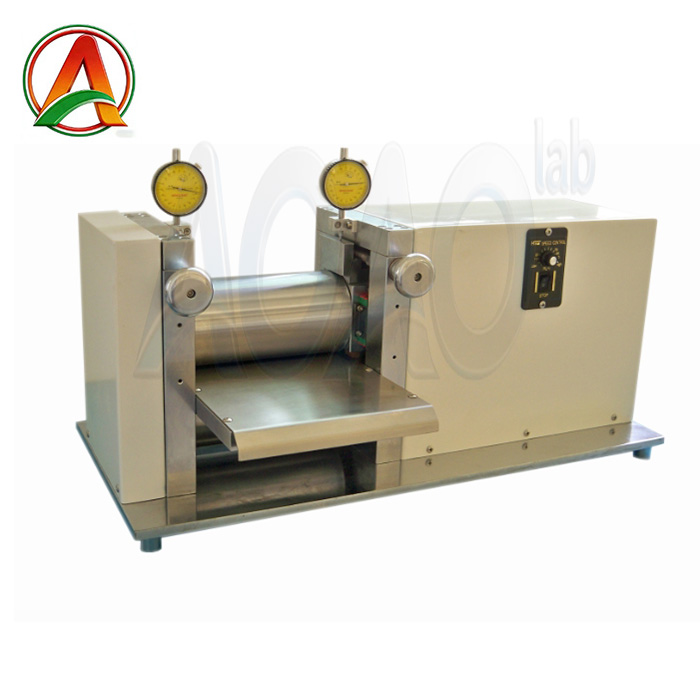

Electric Calender With 200mm Width

Working Voltage

110V / 220V AC single phase selectable

Power

200W Total

Warranty

One year limited manufacture warranty with lifetime support

Structure

1 Heavy duty steel frame, gears and handle

2 Φ100mm Dia. x 200mm width Rollers made from hardened tool steel (HRC > 62)

with Cr electroplated coating

3 Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum

Roller

Dimensions: 100mm(Dia.) x 200mm(W)

Material: Made from hardened tool steel (HRC > 62)

with Cr electroplated coating. With finish > 0.8

Rolling press accuracy

≤±0.005

Roller surface

hardening depth

5mm

Max pressure

5T

Rolling press thickness

0-2mm adjusted with Dial gauge

Rolling press width

Max 200mm, Customized

Rolling press speed

0-2m/min adjustable

Product Dimensions

700 mm(L) x 320mm(W) x 310mm(H) (28" x 12.5" x 12.2")

Weight

76kg

Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable,

compact and precise.

1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property

of the materials. Here are some results from our test:

Sample testing is available upon customer's request
