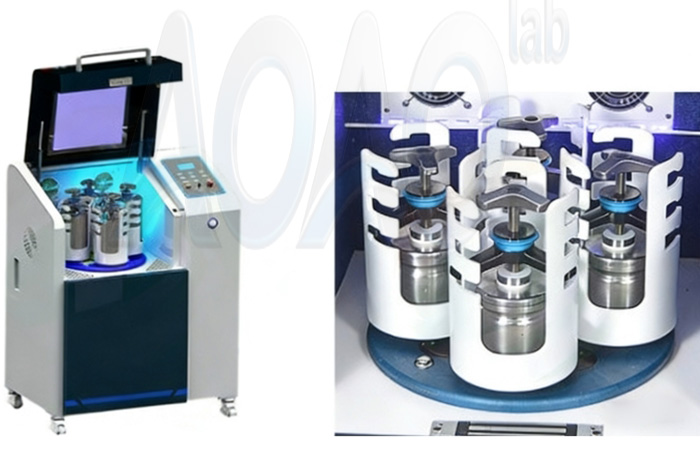

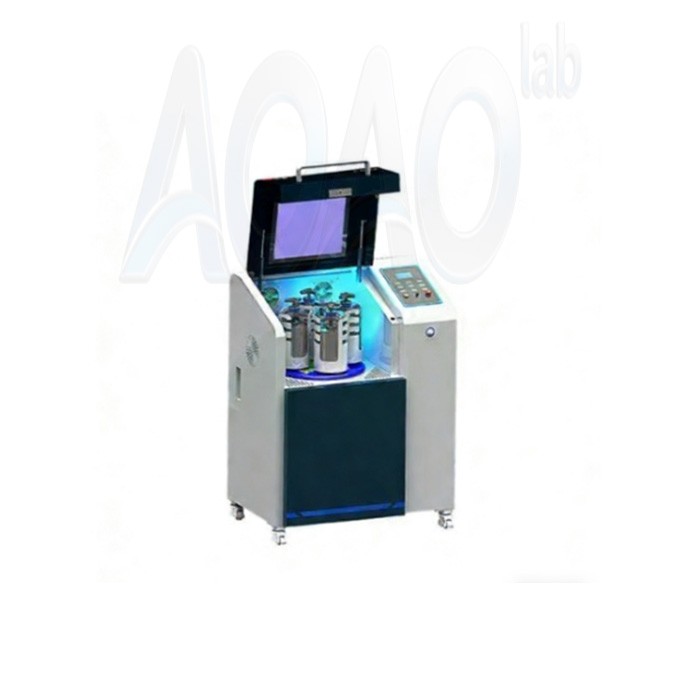

High-energy Laboratory Planetary Ball Mill

This laboratory planetary ball mill can be equipped with vacuum ball mill, the sample can be ground under vacuum.

Brand:AOAO NEW ENERGY
item no.:AOAO-PBM-C2
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN
Lead Time:15

High-energy Laboratory planetary ball mill

SPECIFICATIONS

1.This high-energy laboratory planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production. the planetary ball mill is small, full-featured, high efficiency and low noise which is the ideal equipment for scientific research units, institutions of higher learning, corporate laboratories to obtain micro particle research samples. (Four samples for each experiment).

2.It can be equipped with vacuum ball mill; the sample can be ground under vacuum.

3.The ball milling machine is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments.

4.The machine can set the speed, forward and reverse rotation time, and the total grinding time according to process requirement.

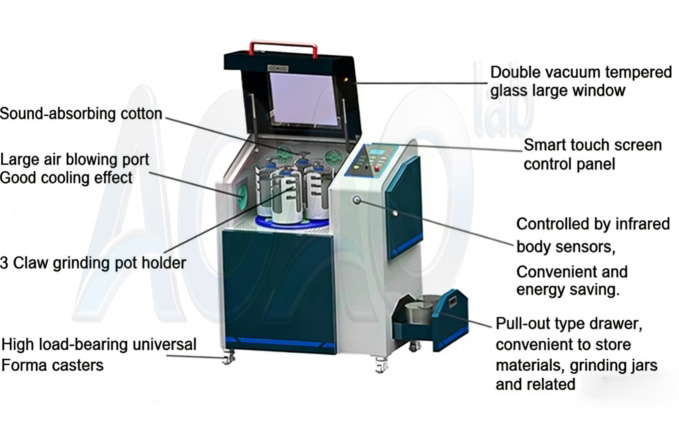

Features：

1.The equipment adopts professional appearance design, the shell adopts high-precision laser cutting, CNC bending forming, generous and delicate, high-end and stable.；

2.The planetary discs and structural components are processed by CNC machining process,Metal heat treatment process for nitriding ensures that the rotating shaft parts are wear-resistant and prevent the shaft from breaking. The transmission gear selects high temperature and wear-resistant non-metal and metal combined precision gears, which are lubricated by grease, which is safe and reliable. , Low noise, no pollution, low loss;

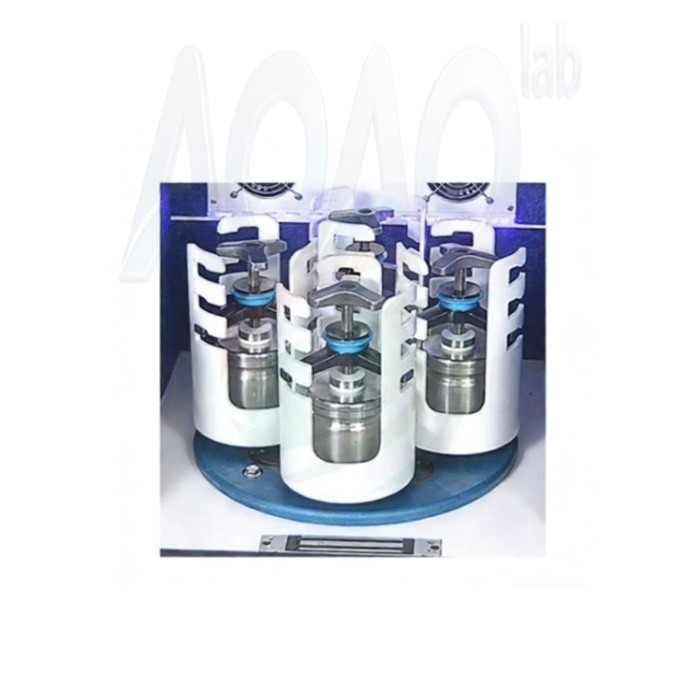

3.The ball milling tank adopts planetary motion, with high ball milling efficiency and fine particle size；

4.The inverter has under-voltage and over-current protection, which can protect electrical components such as motors；

5.Optional use of a new type of self-locking grinding tank tracking device, which can simultaneously tracking lock the grinding tank and prevent loosening, which is convenient, safe and reliable.；

6.Touch screen smart panel operation, convenient for man-machine integration operation；

7.The equipment has a low center of gravity, stable performance, and compact structure, which is convenient for equipment adjustment and shippment.

Model	AOAO-PBM-C2
Grinding tank volume （ML）	*50ML-500ML4 （can with 50ML-250ML vacuum grinding tank）**
Grinding tank material	Optional hard steel, stainless steel, zirconia, agate, corundum, tungsten carbide, nylon, polyurethane, PTFE, etc.
Grinding media	Stainless steel, agate, zirconia, corundum, etc.

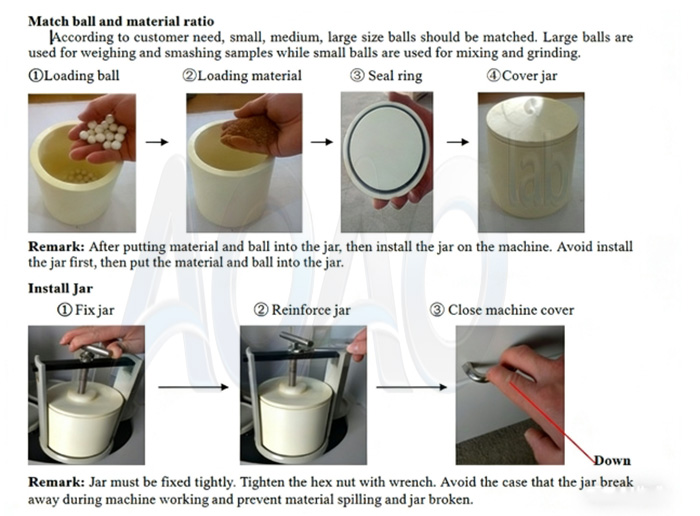

Maximum loading per tank	Material and grinding medium does not exceed 2/3 of the volume
Feeding material size	Crispy materials ≤ 10 mm, other materials ≤ 3 mm
Discharge material size	Min 0.1um（According to material characteristics）
Rotating speed	Maximum revolution 47-500rpm ,Max rotation 94-1000rpm
Speed ratio (revolution: rotation)	1:2
Speed mode	Frequency
Planetary disk drive mode	Gear drive
Lubrication method	The gears are lubricated by liquid oil, the noise is lower, and the gears are not easy to wear. Easy maintenance
Working Voltage	Single phase 220V，50HZ
Motor power and variable frequency power	1.5KW （The motor brand is Siemens, and the inverter brand is Siemens）
Way of working	Four jars work at the same time
Maximum continuous operating time	72 hours（Timer 0-9999h）
Programmable control	4.5-inch touch screen panel, better human-machine interface integration, free to set the total setting, forward rotation, reverse rotation, interval standby time, repeated alternate operation, real-time alarms for over current, over voltage, and overload protection for operating equipment . And can save 9 groups of different parameters and call them arbitrarily.
Equipment reference size（MM）	*870(L）550（W）1150（H）*
Equipment reference weight（KG）	About 260

More Ball Mill Introduction

Model		0.4L	1L	4L	12L	20L	40L	60L	100L
Move Speed（r/ min)	Revolution	30-460	30-670	30-400	30- 280	30- 220	30- 200	30- 185	30- 185
Move Speed（r/ min)	Rotation	60-920	60-335	60-800	60- 560	60- 440	60- 400	60- 370	60- 370
Motor Power（KW)		0.55	0.75	0.75	1.5	3	3	4	7
Frequency Control Power(KW)		0.55	0.75	0.75	1.5	3	3	4	7
Continuous Working Timer（min)		1～999
Positive and negative reversingtime（min)		1～99

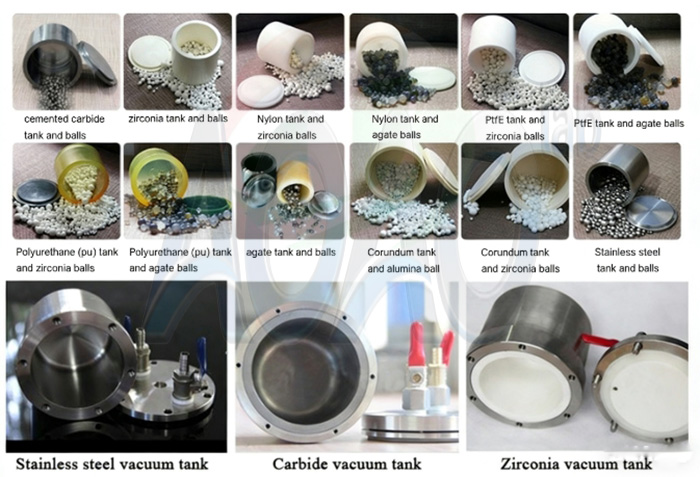

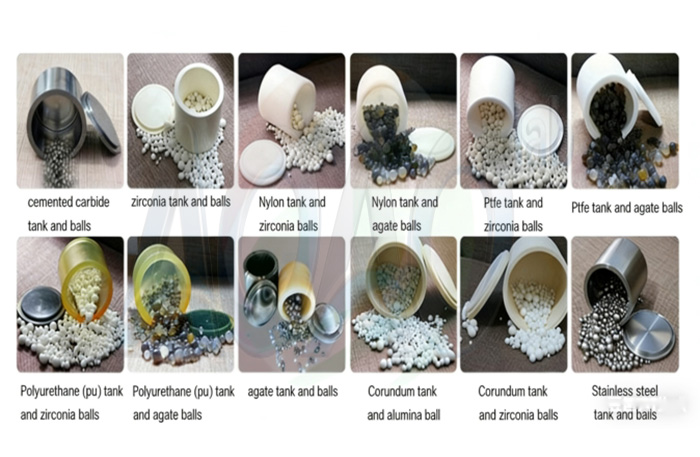

Ball Mill Jar Introduction

(1)Commonly Used Types

Jar Type	Specification（Volume L）
Agate	0.05	0.15	0.25	0.3	0.4	0.5	1	2
Stainless Steel	0.05	0.1	0.25	0.35	0.5	1	4	5	8	10
Ceramic	0.1	0.25	0.5	1	4	5	10
Nylon	0.25	0.3	0.4	0.5	1	4	5	10
PU	0.25	0.5	1	2	4	5	7	12	16
Corundum	0.5	1	4	5	10
Zirconia	0.5	1	2	4	5	8	10
PTFE	0.5	1	2	5	8	10	12
Alloy	0.5	1	4	5
