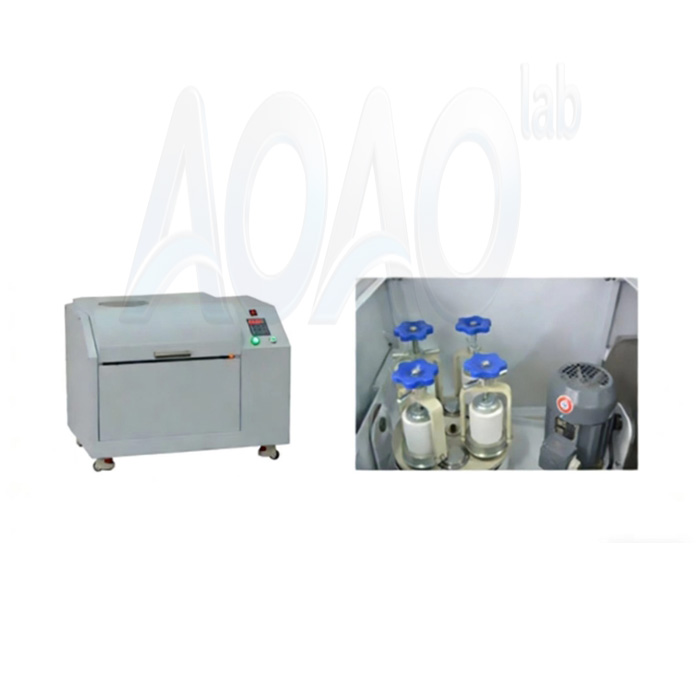

Comprehensive planetary ball milling machine

Working way

Two or four tanks simultaneously milling

Max sample loading capacity

2/3 of Tank volume

Discharge size

Mix 0.1um

Feed size

Soil material ≤10mm, other material ≤3mm

Speed ratio (revolution: Rotation)

1：2

Speed (rotation)

0.4L：0～600Rev / min , 2L：0～580Rev / min  ,4L：0～530Rev / min ,

12L： 0～350Rev / min,  20L：0～270Rev / min

Revolution and rotation cycle

1 minute

Control method

Frequency variable speed, programmable control,

automatic timing reversing, time off

Maximum continuous working time (full load)

72hours

Be equipped ordinary mill tank

Be equipped vacuum ball milling tanks

No.

AOAO-DSP-LBPBM07A

0.4L

50ml     100ml

50ml

4

AOAO-DSP-LBPBM07B

2L

50ml     100ml

250ml    500ml

50ml  100ml   250ml

4

AOAO-DSP-LBPBM07C

4L

250ml     500ml   1L

50ml  100ml    250ml    500ml

4

AOAO-DSP-LBPBM07D

12L

1L   2L   3L

1L     2L

4

AOAO-DSP-LBPBM07E

20L

3L   4L   5L

3.5L

 4
