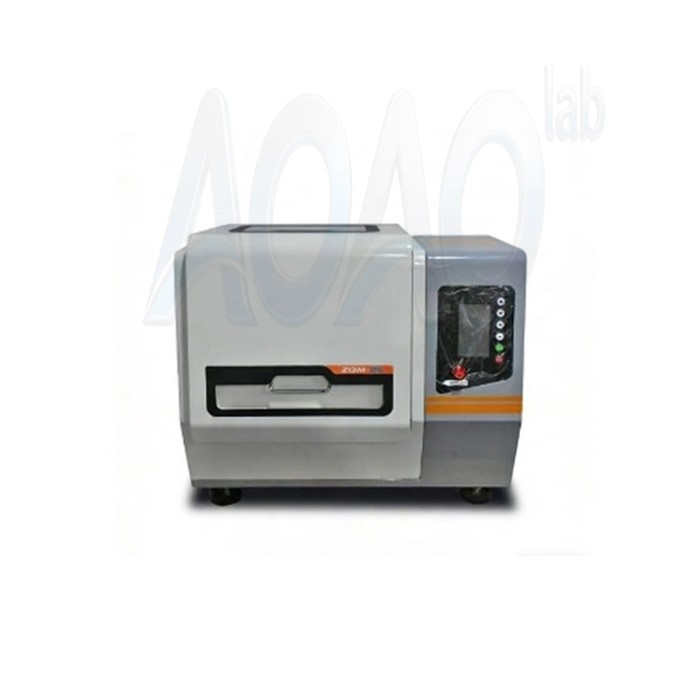

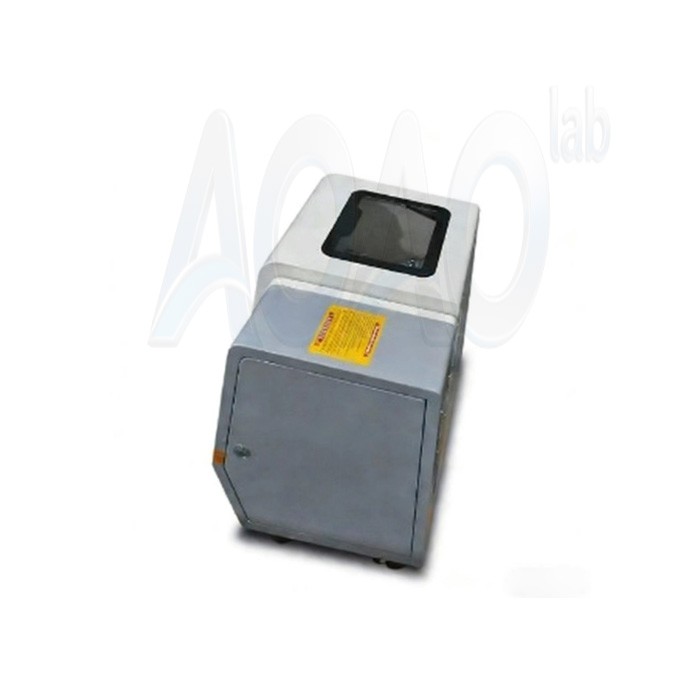

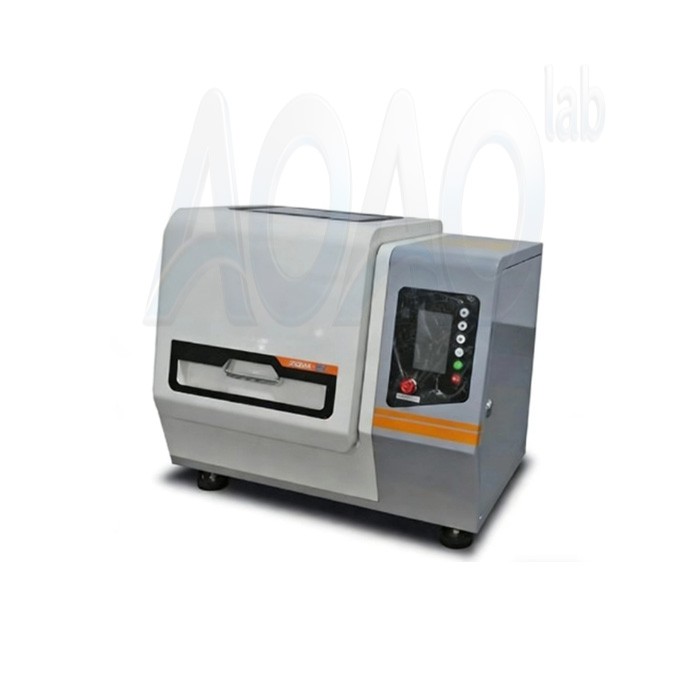

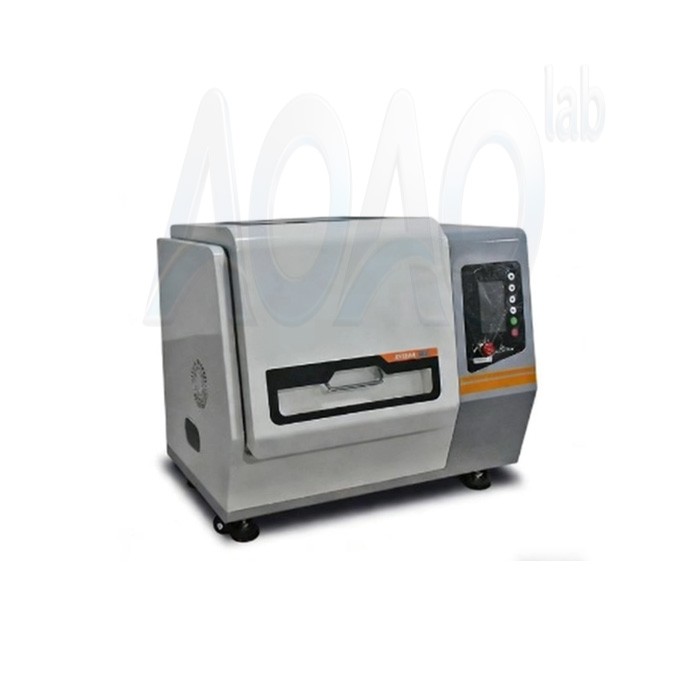

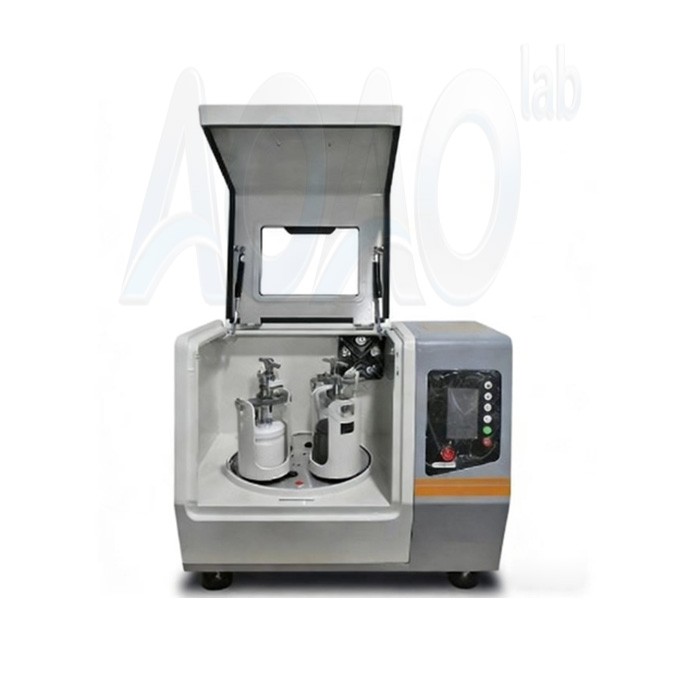

High Speed Planetary Ball Mill

Planetary ball mill is a necessary equipment for mixing, fine grinding, small sample preparation, nano material dispersion, new product development and small batch production of high-tech

Brand:AOAO NEW ENERGY
Item No.:AOAO-ZQM Series
Order(Moq):1
Payment:L/C,T/T
Product Origin:China
Shipping Port:XIAMEN

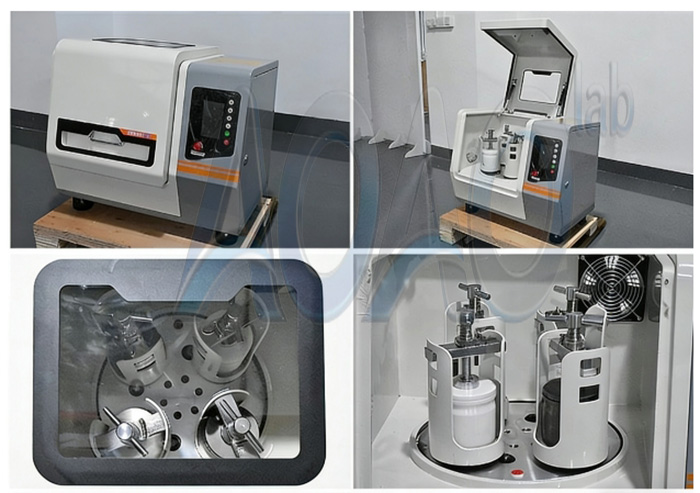

High Speed planetary ball mill

SPECIFICATIONS

planetary ball mill is a necessary equipment for mixing, fine grinding, small sample preparation, nano material dispersion, new product development and small batch production of high-tech materials. The product is small, full function, high efficiency and low noise. It is an ideal equipment for scientific research institutions, universities, and enterprise laboratories to get micro research samples (four samples can be obtained in one time). It can be equipped with vacuum ball milling tank, which can grind the samples in the vacuum state. Widely used in geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection and other departments.

planetary ball mill is suitable for wet and dry grinding of hard, medium hardness, brittleness and fiber materials. The sample fineness can be less than 100nm. It can also be used for grinding, mixing and homogenization of solids in suspension, etc., which can achieve perfect and outstanding results.

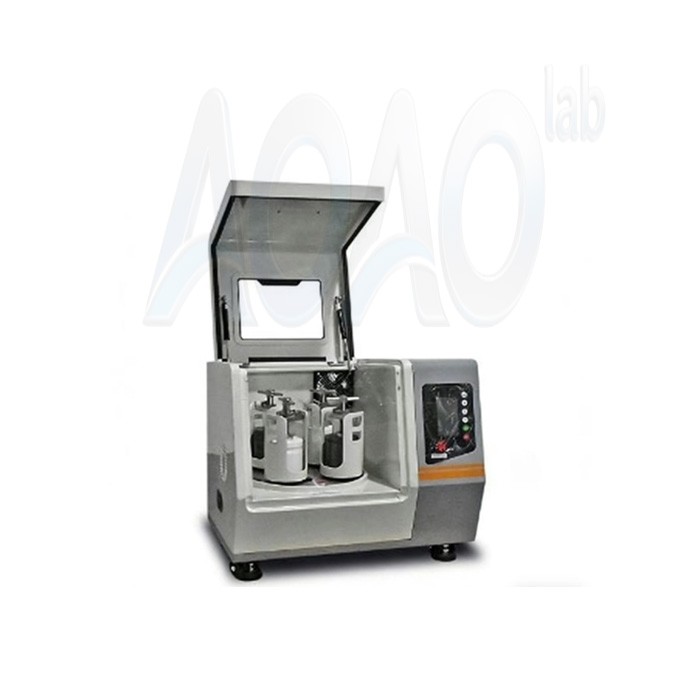

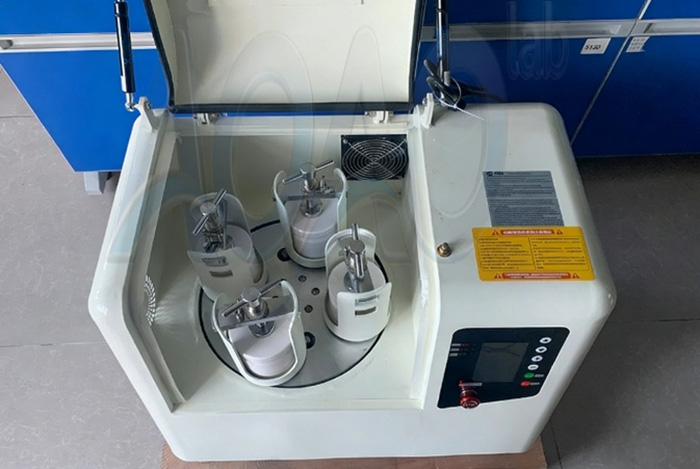

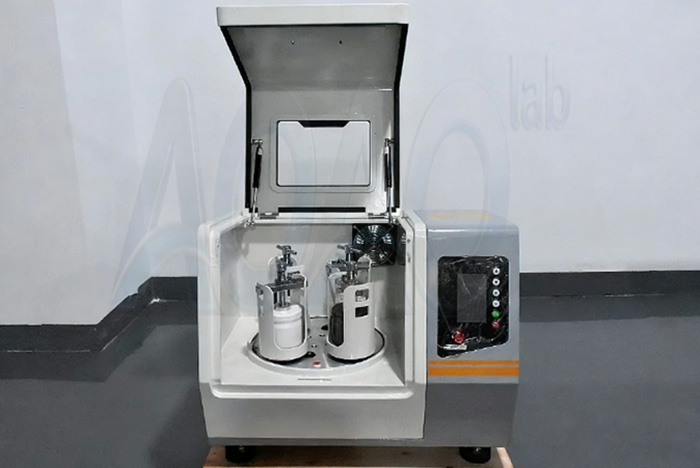

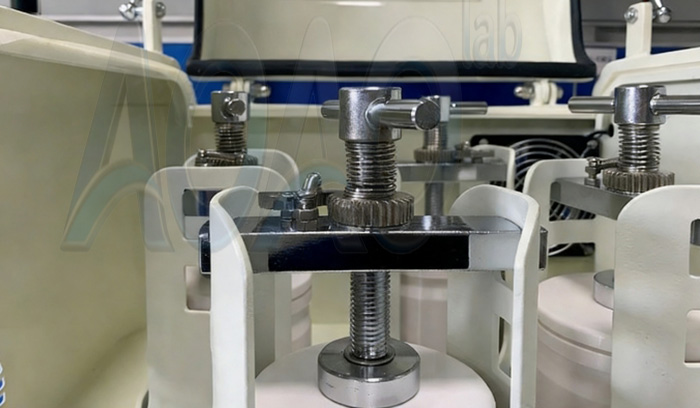

Four 50ml or 100ml ball milling tanks can be placed at the same time. There are more than ten choices of ball milling tank materials, ZQM using the latest gear noise reduction technology and fully enclosed oil seal noise isolation patent technology to control the running noise, it is more stable than the ordinary planetary mill, and its service life is increased by more than 5 times, which effectively improves the comfort of the laboratory. The high-efficiency sample processing ability, unique outlook and structure design are well received by users.

Product name	planetary ball mill (patented oil seal mute technology + intelligent operation panel)
Model	AOAO-ZQM-2L	AOAO-ZQM-4L
Grinding tank volume	25/50/100/250/500ml	25/50/100/500/1000ml

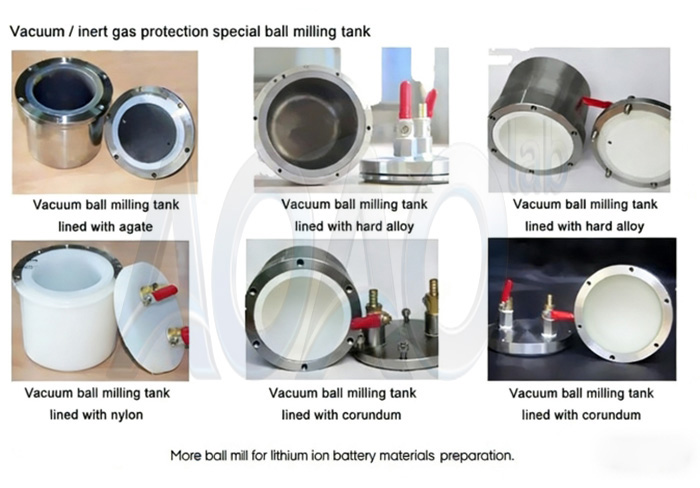

Vacuum tank	50/100/250ml	50ml/100ml/250ml/500ml/1L
Material handling capacity	16ml-160ml (according to tank volume)	16ml-330ml (according to tank volume)
Bottom bracket (optional)	Bottom bracket available 50/100/250ml	Bottom bracket available 50/100/250/500ml
Power supply	AC 110V/220V
Loading capacity	Material≤ 1/3, Balls ≤ 1/3, material and balls should be ≤ 2/3.
Application area	Medicine, food, geology, metallurgy, agriculture, glass, ceramics, aviation, chemical industry, biology, materials, lithium, electronics, plants, biology, etc.
Application sample characteristics	Hard, medium hardness, brittleness, fibrous and viscous materials
Processing principle	Impact force and friction force
Processing type	Grinding, grinding, mixing, homogenization and alloying
Main disk structure	Planetary main disc gear soaked with lubricating oil, noise oil seal treatment
Maximum feeding size (different materials)	< 5mm, soil < 10mm
Output material size	< 100nm
Main disk speed	10-400 r/min
Ball mill speed	20-800 r/min
Total grinding speed	1200 r/min
Safety protection	In operation, the door is automatically locked, and it needs to be removed after 5s of shutdown to ensure the safety of personnel.
Speed ratio	1:2
Grinding ball, optional	Configuration I: crushing stage Configuration 2: grinding stage Configuration 3: nano dispersion
Grinding tank material	Stainless steel, agate, zirconia, corundum, tungsten carbide, nylon, polyurethane, polytetrafluoroethylene, silicon carbide, etc.

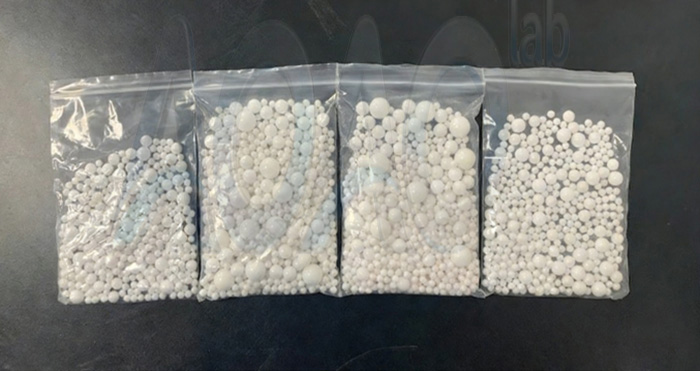

Grinding ball material	Stainless steel, agate, zirconia, corundum, nylon, polytetrafluoroethylene, optional
Ball diameter	1/2/3/5/8/10/15/20/25/30mm
Dimension	705060cm
Weight	115kg/130kg
Protection grade	IP60
Grinding method	Dry grinding / wet grinding / atmosphere protection grinding / low temperature grinding / high energy mechanical alloy grinding (optional)
Location of oil seal box	Bottom of planetary main disk
Oil seal box size	36*10CM
Oil seal quantity	220ml (must be configured before use)
Diameter of planetary disk	360mm
Storable operation mode	Program memory, power off memory
Forward and reverse operation	Yes
Time setting	00:01:00-99:59:59
Pause time setting	00:01:00-99:59:59
Emergency stop	Yes
Power off memory function	Yes
Noise	< 60dB (within 3m)
