0.4L Lab Planetary Ball Mill

Best Price For Lab Planetary Ball Mill With 0.4L Volume and Output 100nm

Brand:AOAO NEW ENERGY
item no.:AOAO-XQM-0.4L
order(moq):1
Payment:L/C,T/T,Western Union
product origin:China
shipping port:XIAMEN
Lead Time:7

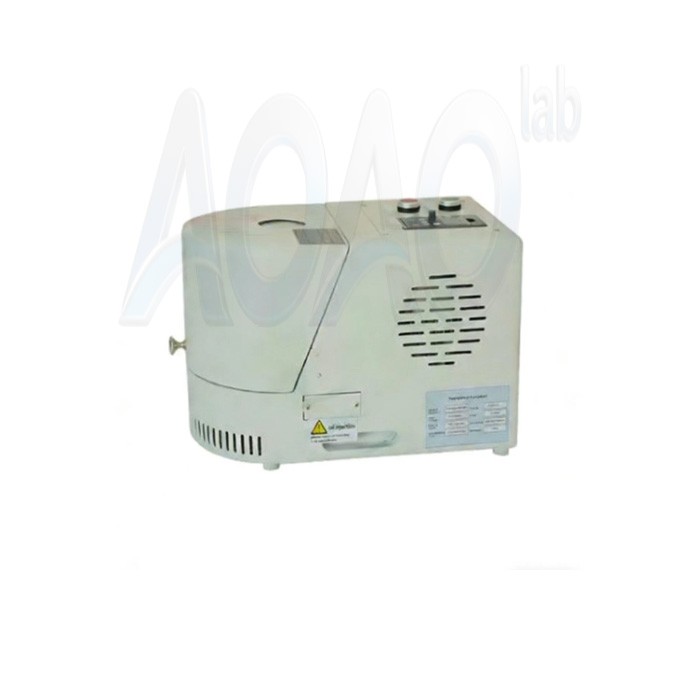

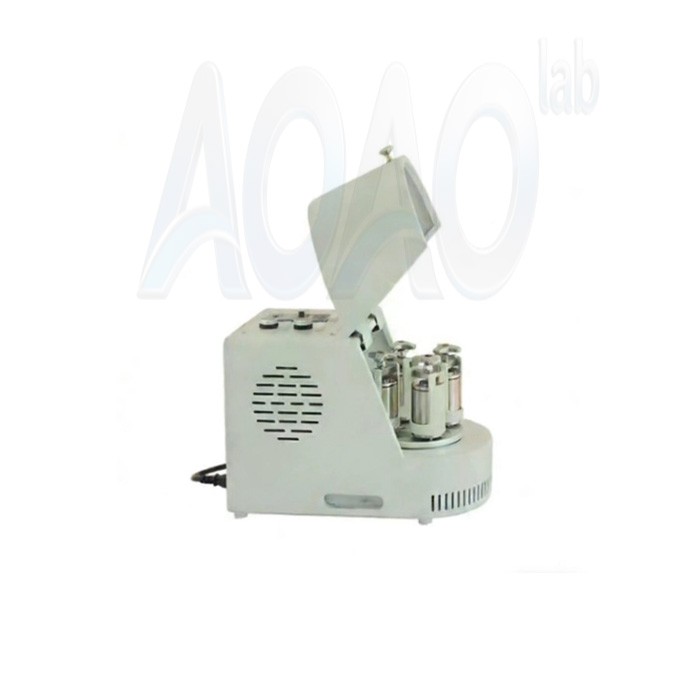

0.4L Lab planetary ball mill

SPECIFICATIONS

Working principle:

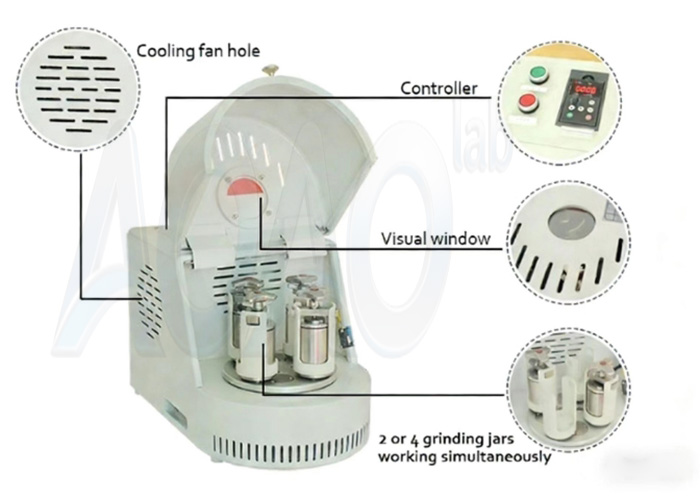

AOAO-XQM series of variable frequency planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be grinding and mixing by the mill with dry or wet method. The size of ground powder can be reduced to as small as 0.1 micrometer.

Technical Parameters:

Model	AOAO-XQM-0.4
Grinding tank volume	100ml*4
Grinding tank material	Zirconia, corundum, agate, cemented carbide, stainless steel, PTFE, PU, nylon. According to your needs.
Grinding ball material	Matching grinding ball (large, medium and small size)
Max loading volume	Material and grinding balls no more 1/3 of volume
Feeding material size	Soil material ≤ 10 mm, other materials ≤ 3 mm
Output material size	Min 0.1um
Speed	Revolution 45-435 r/min, Rotation 90-870 r/min
Speed mode	Stepless speed regulation, automatic timing forward and reverse, automatic shutdown.
Working Voltage	AC 220V
Motor frequency conversion controller power	0.25kw
Max continuous working time	72hours
Remark	The ball mill is controlled by a high-tech microcomputer chip. It can be set to forward, reverse alternately run (0-999min), and forward, pause, reverse, pause, forward alternately run (0-999min), especially suitable for cooling or intermittent operation. It can be used for dry grinding and wet grinding. It can be equipped with vacuum filling inert gas grinding or low temperature grinding. Grease lubrication is adopted at the gear transmission to reduce the running noise of the equipment.
Dimension	500300340mm
Weight	About 30kg

Model		0.4L	1L	4L	12L	20L	40L	60L	100L
Move Speed（r/ min)	Revolution	30-460	30-670	30-400	30- 280	30- 220	30- 200	30- 185	30- 185
Move Speed（r/ min)	Rotation	60-920	60-335	60-800	60- 560	60- 440	60- 400	60- 370	60- 370
Motor Power（KW)		0.55	0.75	0.75	1.5	3	3	4	7
Frequency Control Power(KW)		0.55	0.75	0.75	1.5	3	3	4	7
Continuous Working Timer（min)		1～999
Positive and negative reversingtime（min)		1～99

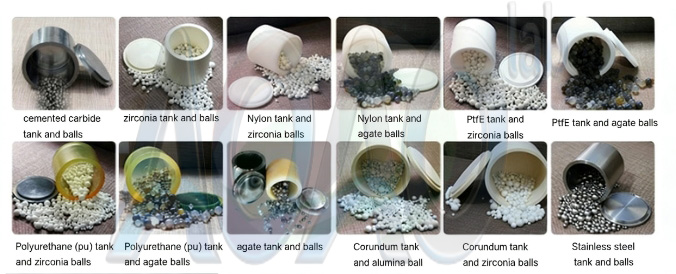

Ball Mill Jar Introduction

(1)Commonly Used Types

Jar Type	Specification（Volume L）
Agate	0.05	0.15	0.25	0.3	0.4	0.5	1	2
Stainless Steel	0.05	0.1	0.25	0.35	0.5	1	4	5	8	10
Ceramic	0.1	0.25	0.5	1	4	5	10
Nylon	0.25	0.3	0.4	0.5	1	4	5	10
PU	0.25	0.5	1	2	4	5	7	12	16
Corundum	0.5	1	4	5	10
Zirconia	0.5	1	2	4	5	8	10
PTFE	0.5	1	2	5	8	10	12
Alloy	0.5	1	4	5

(2)Jar and Ball Match

Jar	Agate	Ceramic	Stainless Steel	Nylon	Steel	Alumina	Alloy	Zirconia
Ball	Agate	Ceramic	Stainless Steel	Nylon	Steel	Alumina	Alloy	Zirconia
Agate	●
Ceramic	▲	●
Stainless Steel			●		▲		▲
Nylon	▲			●
Steel					●		▲
Alumina						●		▲
Alloy							●
Zirconia						▲		●
● means best match effect ▲means matchable
