Battery Short Circuit Tester

Testing the accidental short between anode and cathode after final sealing of pouch and cylinder cell.

Brand:AOAO NEW ENERGY
Item No.: AOAO-2681A
Order(Moq):1set
Payment:L/C,T/T
Product Origin:China
Shipping Port:XIAMEN
Lead Time:7days

Battery Short Circuit Tester

Battery Short Circuit Tester For Not Charging Semi-Finished Battery Core Checking Out

SPECIFICATIONS

Testing the accidental short between anode and cathode after final sealing of pouch and cylinder cell.

1 Simple operating, directly display result

2 Fast test speed, large resistance range

3 Overrun audible and visual alarm

4 General insulation resistance tester

Model	Battery Short Circuit Tester AOAO-2681A
Source voltage	AC110V/220V 50/60HZ
Warranty	One year limited with lifetime support
Voltage test	DC 0-15V, Resolution 10mv
Resistance range	10^5Ω-10^13Ω
Resistance test accuracy	R<10^12Ω5% R≥10^12Ω10%
Display	Mirror header indicating
Testing range setting	Manual
Testing speed	≤0.5 second
Dimension	380140320mm
Weight	7kg

Product Display

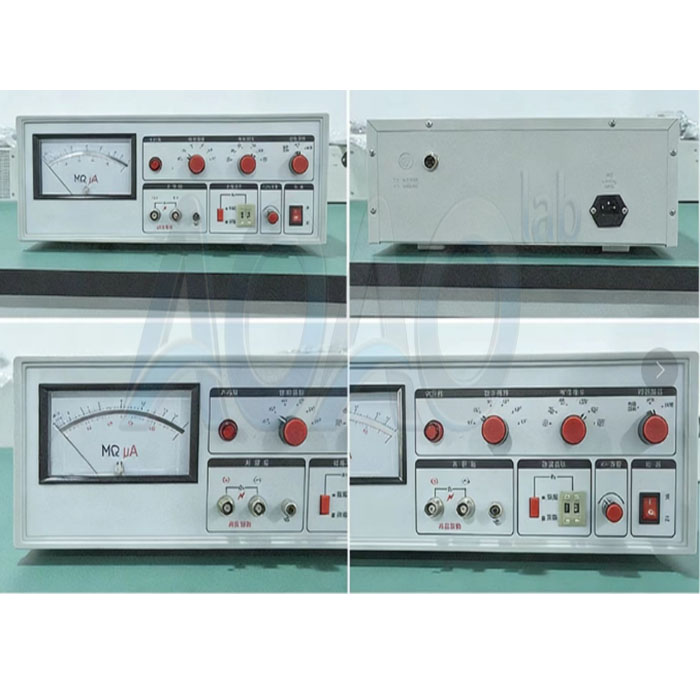

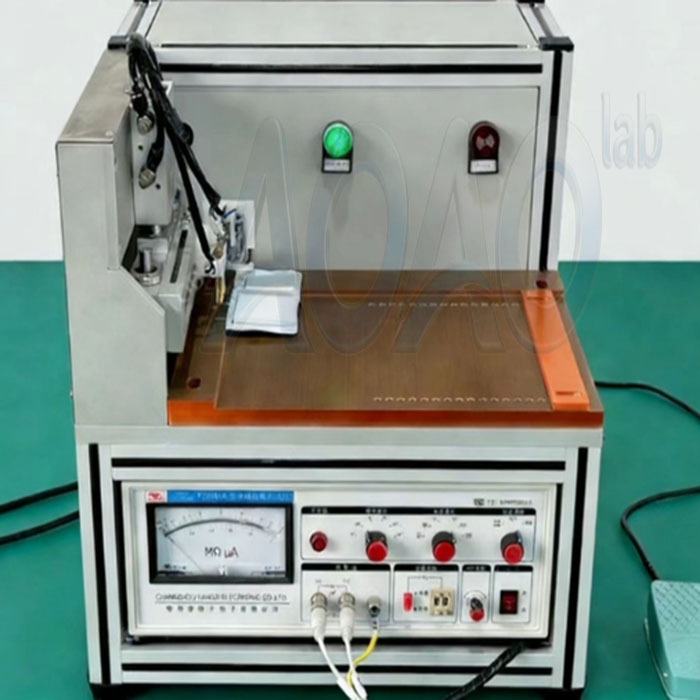

Battery Short Circuit Tester.jpg
