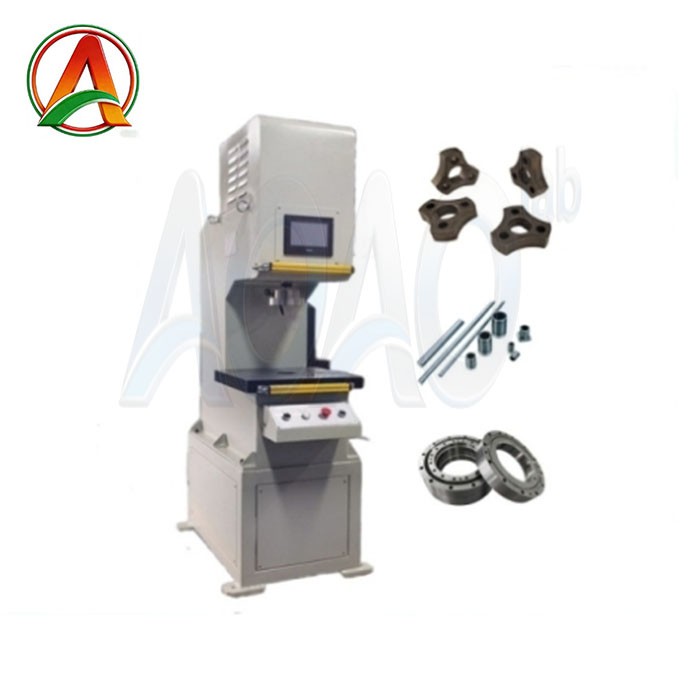

1T-12T CNC Precision Servo Electronic Press Machine

1T-12T CNC Precision Servo Electronic Press Machine

Introduction

The servo press, also known as the CNC servo electronic press or precision electric cylinder press-fitting machine, is abbreviated as the electronic press. Its working principle is that the servo motor drives the high-precision ball screw to perform precise pressure assembly operations, and the entire process realizes the closed-loop control of the press-fitting force and the press-in depth. It can also be configured with functions such as heating, real-time pressure curve display, multi-station, scanning code, and automation.

Product features

1. The position control accuracy of the common electric cylinder is ±0.01mm, and that of the new type of electric cylinder is ±0.001mm

2. The speed of a common electric cylinder is 30 to 50mm/s, while that of a new type of electric cylinder is over 100mm/S

3. The new type of electric cylinder adopts direct drive technology, reducing energy consumption by 30% without a reducer

Equipment application:

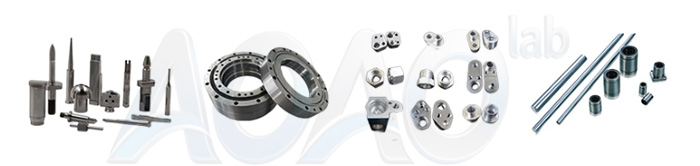

1) Assembly, forming and riveting of precision components

2) Stamping blanking of films, metal sheets and plastics

Scope of application

Applicable industries: automotive industry, motor industry, electronics industry, new energy industry, etc

Technical parameter
