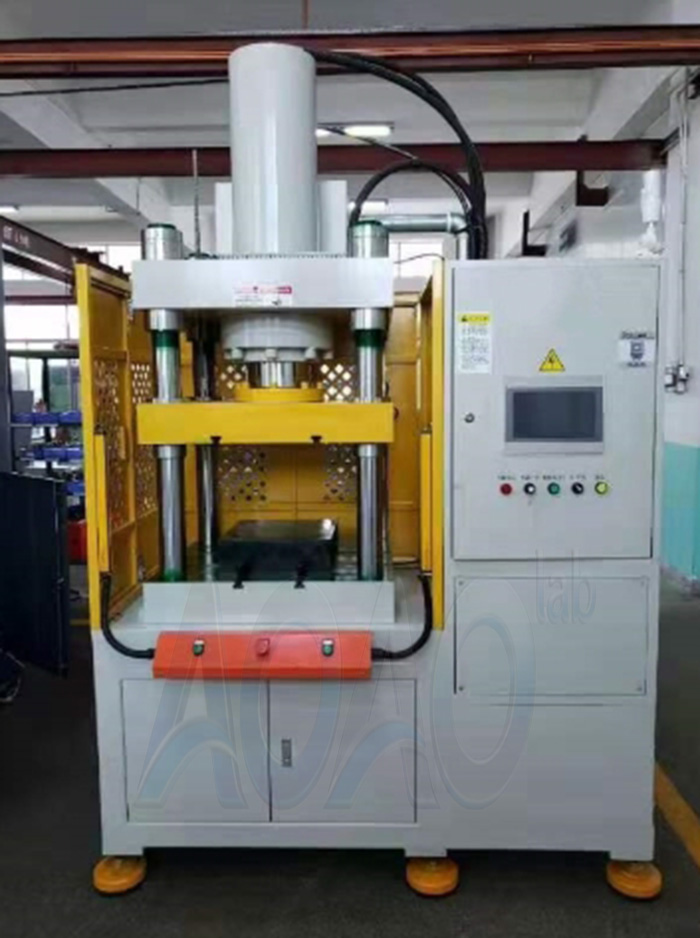

10T-100T CNC 4 Post Servo Hydraulic Press Machine

1

Output range of the oil cylinder

Tf or KN

5-30 or 50-300

2

The maximum working pressure of the oil pump

MPA

21

3

The maximum working height of the sliding speed and the lower working face

MM

400

4

Cylinder stroke

MM

300

5

The minimum working height of the sliding speed and the lower working face

MM

100

6

Effective area of the lower workbench (left and right * front and back)

MM

500*400

T-slot clamping

7

Effective area of the upper working surface (left and right * front and back)

MM

500*400

T-slot clamping

8

Throat depth

MM

200

9

The height of the lower working face from the ground

MM

900

10

The descent speed of the slider

MM/S

150

11

The feed speed of the slider

MM/S

1—20, adjustable

12

The rebound speed of the slider

MM/S

150

13

Motor power

KW

5.5KW

14

The total weight of the equipment is

KG

2000

15

Repeatability accuracy of equipment pressure

±1%

16

Minimum display unit of pressure

KN

1

17

Minimum display unit of displacement

MM

0．01

18

The display accuracy of the downward press is

MM

±0.01

19

Pressing down shows the repeat positioning accuracy as

MM

±0.03

20

The sampling speed of the system for the force sensor

Times/s

2000

21

Safety light curtain protection height

MM

300

22

Holding pressure time

MIN

0-5s

23

Parallel accuracy of the upper and lower working surfaces

MM

Within 0.15
