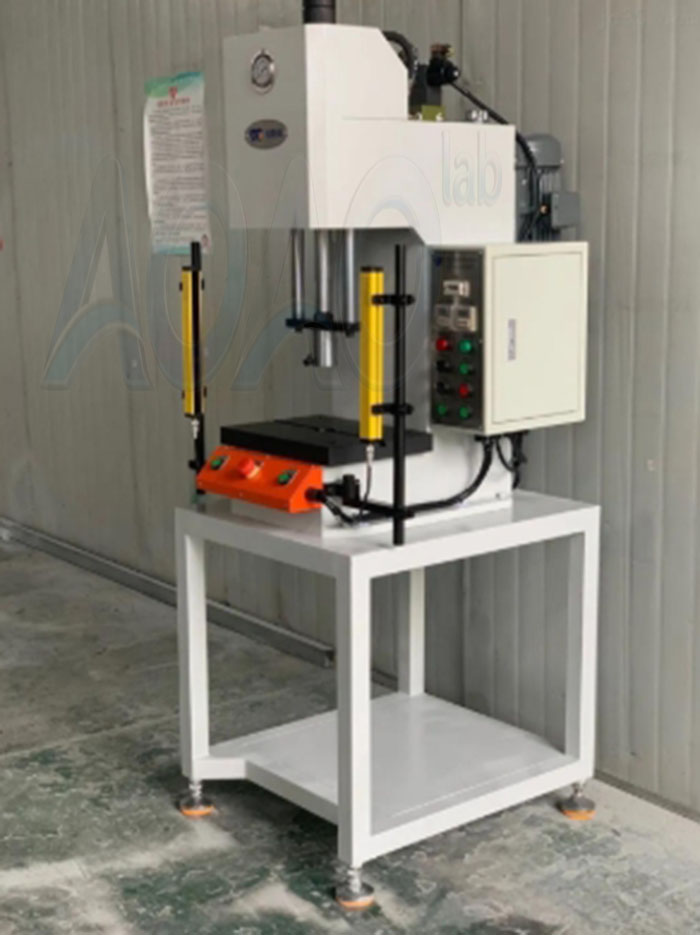

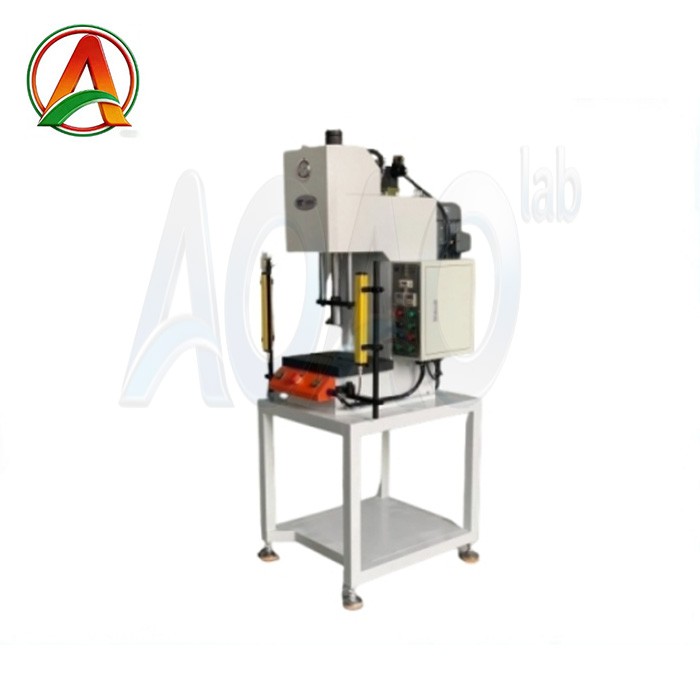

3T-10T Small Benchtop Single Column Servo Hydraulic Stamping Press Machine

Model Number:AOAO-BSW03
Compliance:CE Certified
Warranty:1 Year limited warranty with lifetime support
MOQ:1
Payment:L/C D/A D/P T/T Western Union
Delivery Time:5 days

3T-10T Small Benchtop Single Column Servo Hydraulic Stamping Press Machine

Introduction
This series of hydraulic presses are widely used in press fitting, assembly, punching, embossing,shaping,riveting of various materials. Bending, shearing, stretching, press fitting and assembly of various small parts.lt is a multi-purpose. Press.

C-type hydraulic press, simple structure, light weight, can be placed on the workbench or production line.

Features
1. Adjustable hydraulic cylinder for precise positioning of the press-fit stroke.

2. The slider is controlled by up and down timers, which is easy to operate and easy to maintain

3. The pressure adjustment range is wide, and the minimum output can be adjusted to 500kgf.

4.With manual automatic two working modes.

5.Optional rack placement.

6.Can be customized according to customer requirements.

Technical parameter

Model		BSW03-3T	BSW03-5T	BSW03-10T
Nominal pressure(T)		3	5	10
Maximum working pressure of liquid(Mpa)		21	21	1
Surface height mm		800	800	800
Maximum opening distance mm		300	300	300
Maximum stroke (mm)		200	200	200
Workbench size	Left and right mm	350	350	500
Workbench size	Before and after mm	250	250	300
Speed	Rated load speed mm/s	85	85	85
Speed	Working speed mm/s	85	85	85
Main frame size mm		500x600x1200	500x600x1230	600x700x1430
Power (KW)		2.2	2.2	2.2
