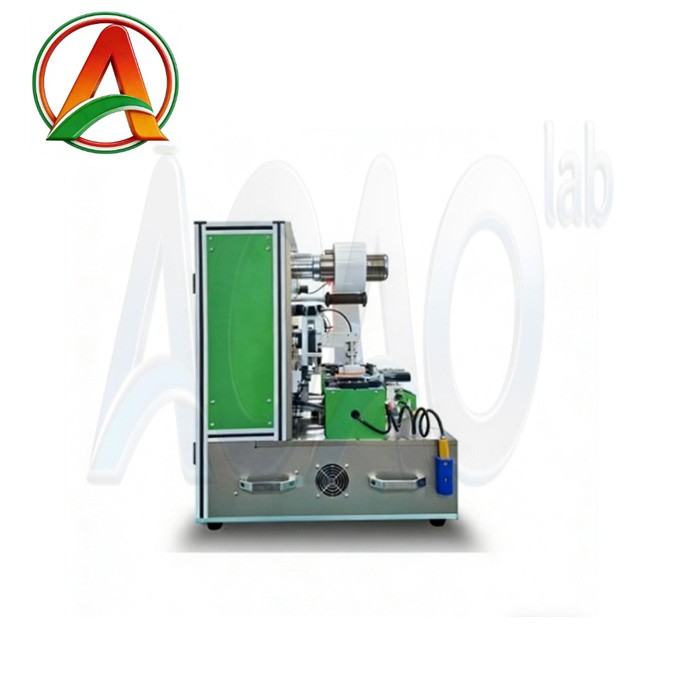

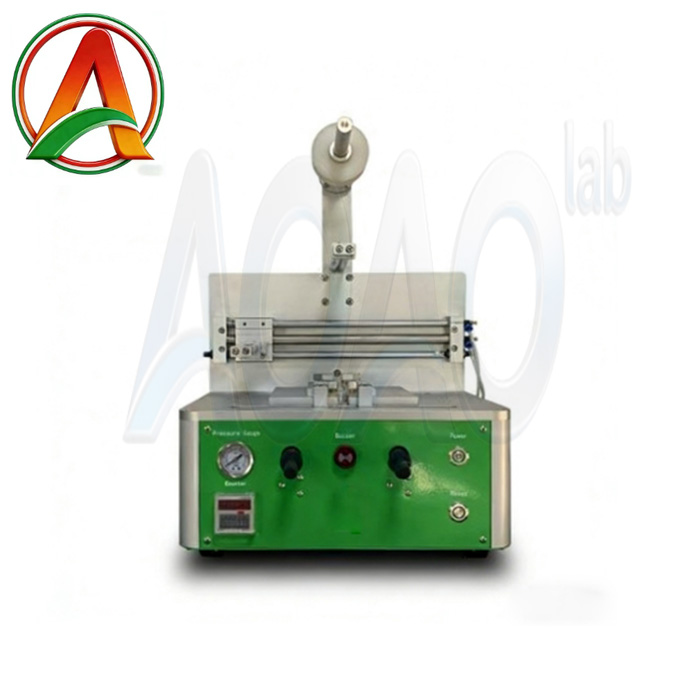

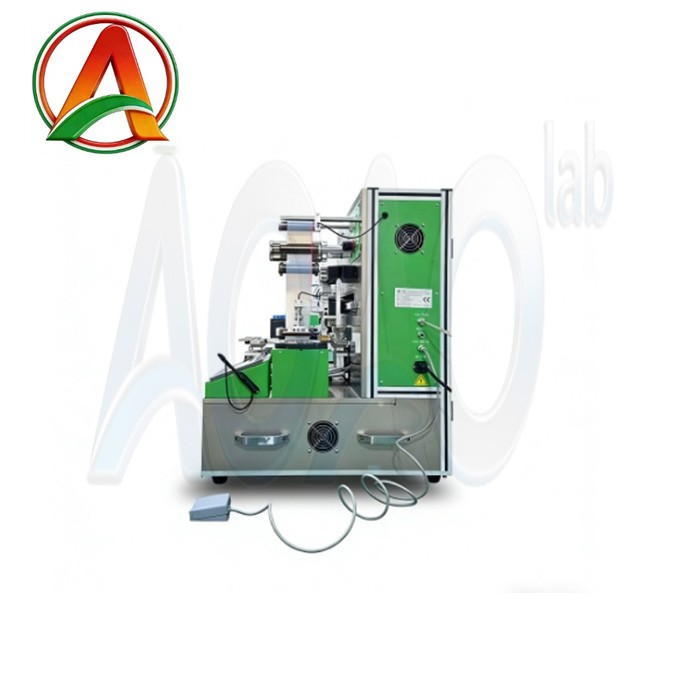

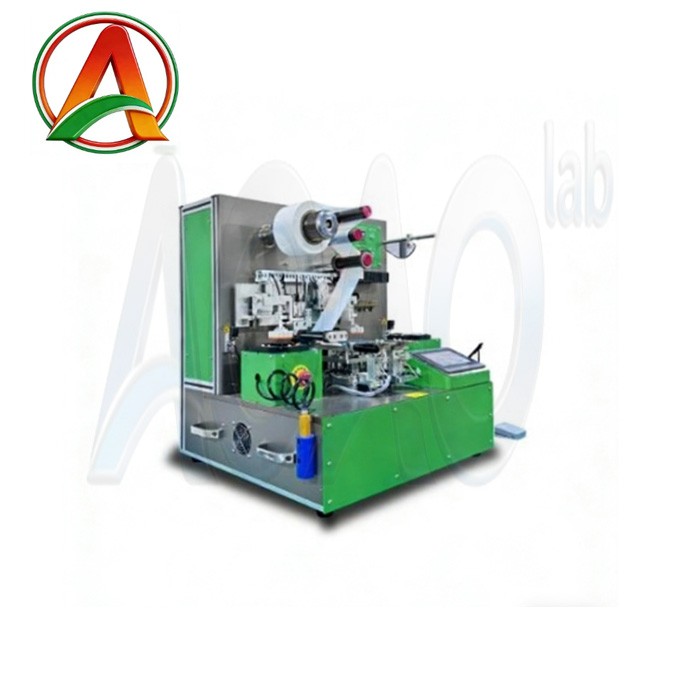

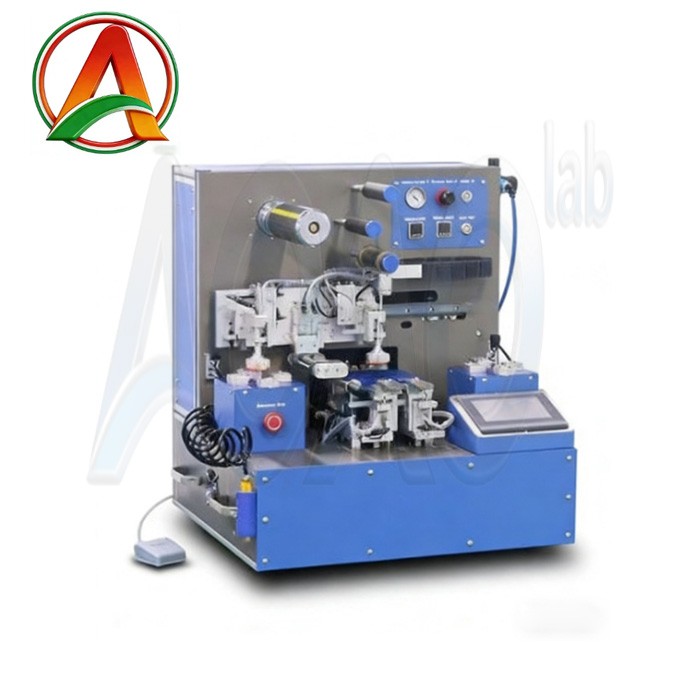

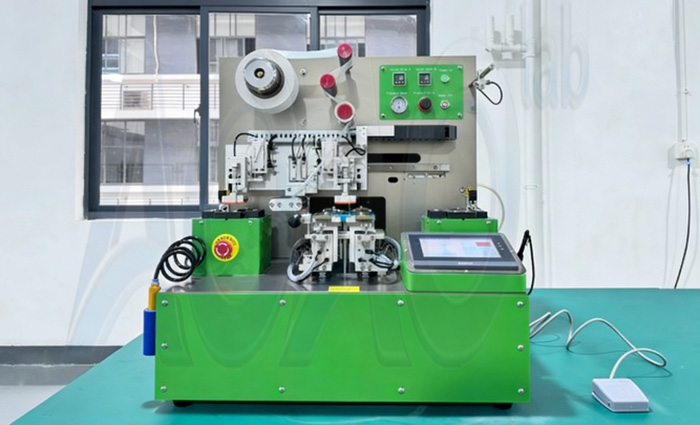

The AOAO-BDP100-S battery stacking machine is mainly used for Z-shaped stack assembly of positive and negative electrodes and separators in lithium battery cells

Brand:AOAO NEW ENERGY
item no.:AOAO-BDP100-S
order(moq):1set
Payment:L/C, T/T
product origin:China
shipping port:XIAMEN

Semi-auto Battery Electrode Stacking Machine

SPECIFICATIONS

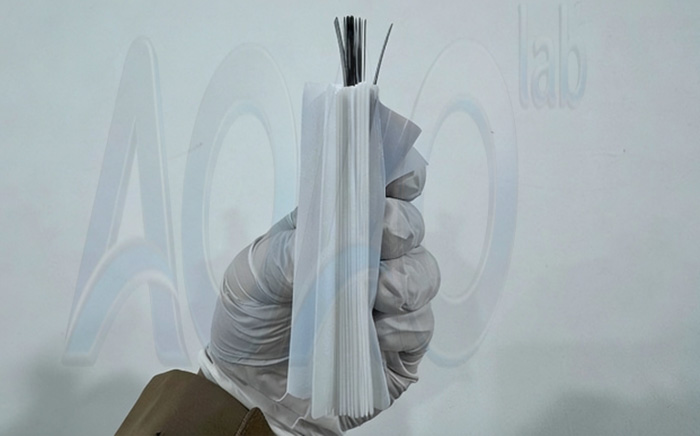

The AOAO-BDP100-S battery stacking machine is mainly used for Z-shaped stack assembly of positive and negative electrodes and separators in Lithium battery cells. Manual loading, subsequent electrode position correction, and automatic stacking process are completed, resulting in high stacking efficiency and precision. Different sizes can be achieved by adjusting the fixture, which is very suitable for the development and sample production of stacked lithium-ion batteries. The desktop structure design of this device can be placed in a glove box for use; The equipment adopts a single cantilever structure design, with automatic constant tension control of the coil isolation film.

Main features:

Automatic servo constant tension control for coil separator, Z-shaped automatic lamination.

The number of laminations can be automatically controlled according to pre-set settings.

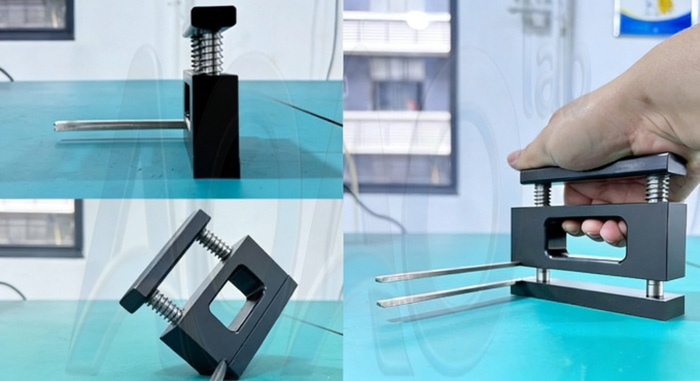

Adopting compatibility design, battery size changes can be achieved by adjusting the positioning fixture, with a large adjustment range to ensure stacking accuracy.

PLC control, HMI operation, easy to use and maintain.

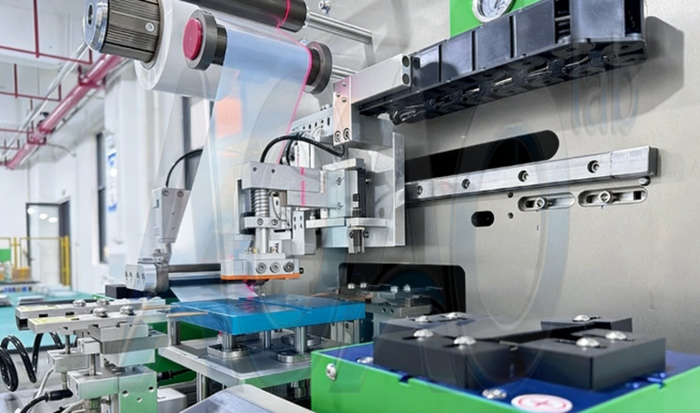

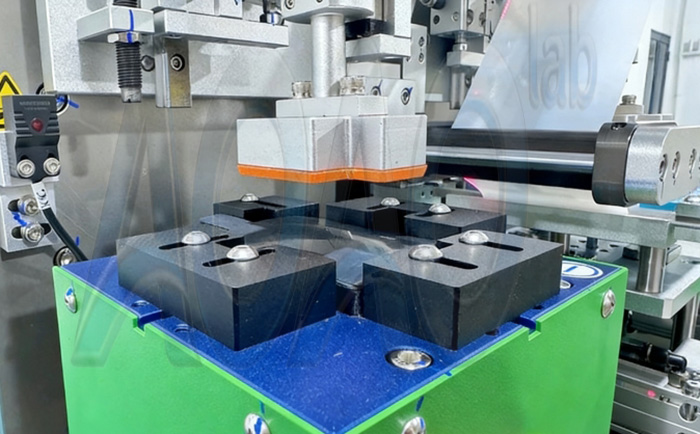

Manual loading of polarizers, automatic positioning, mechanical arm vacuum suction cup automatic suction, automatic stacking.

The left and right movement is controlled by a pulse motor, which is precise and convenient for fine-tuning.

Can be used in a glove box.

Technical parameters

Model	AOAO-BDP100-S
Stacking method	Z-shaped stacking, the separator is rolled
Operation mode	The mechanical arm automatically takes and stacks the material, and automatically pulls the diaphragm with constant tension control
Vacuum degree of suction	greater than -65Kpa
Stacking accuracy	Uniformity ≤ ± 0.3mm (relative position size between electrodes, 25 layers of stacking)
Electrode width	40-90mm
Electrode length	40-100mm (in the direction of the tab, excluding the size of the tab)
Tab length	Max.15mm
Stacking thickness	Max.15mm, the number of stacked layers Max.100 can be set
Separator roll diameter	Max 200mm
Separator core	3-inch core, clamped with an expansion shaft;
Stacking speed	4-6S/piece for stacked electrodes, 6-8S/piece for stacked metallic lithium (excluding the stacking preparation time for each cell)
Power supply	Single-phase AC220V ± 10% (customizable 110VAC), frequency 50Hz/60Hz, power 0.4KW
Gas source	0.5~0.8MPa
Equipment size	L800 * W600 * H720mm
Weight	120Kg
