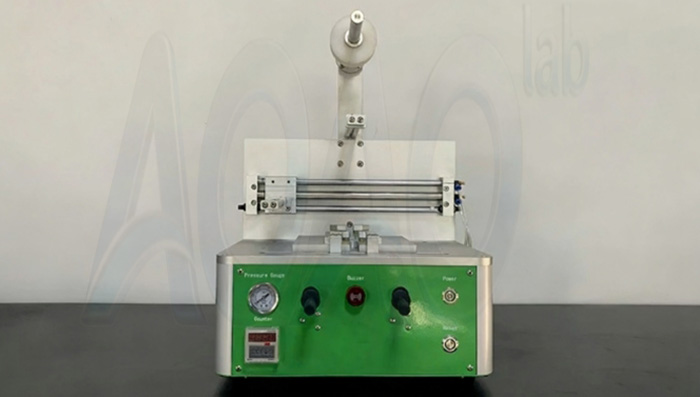

Battery Stacking Machine For Pouch Cell

The AOAO-M-DP-200 Battery stacking machine is a semi-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.

Brand:AOAO NEW ENERGY
item no.:AOAO-M-DP-200
order(moq):1set
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

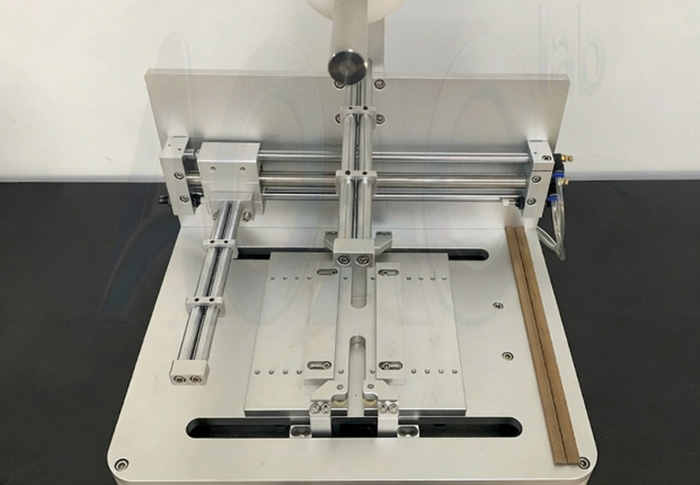

Battery Stacking Machine For Pouch Cell

SPECIFICATIONS

1 AOAO-M-DP-200 Battery stacking machine is a semi-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.

2 The battery stacking machine is used for Lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination.

Model	Battery Stacking Machine AOAO-M-DP-200
Voltage supply	AC 110v-220V Customized by requirements, 50HZ±10%
Power	100W
Warranty	One Year limited warranty with lifetime support
Stacking Layer Length	L(0-200)mm, W(0-200)mm
Max separator feeding diameter	Φ250mm
Fixed travel distance	400mm
Travel cycle	1 - 9999 cycles
Air supply	0.25-0.55MPa (40 - 80 psi)
Machine dimension(LWH)	650400700mm
Controller dimension(LWH)	200300380mm
Weight	40kg
Package size for stacking machine	660740430mm
Package size for control box	470330520mm
