Lithium Ion Battery Electrode Stacking Machine
item no.:AOAO-S-DP200-B
order(moq):1set
Payment:L/C,T/T,Western Union,
product origin:China
shipping port:XIAMEN
Lead Time:25days
Lithium Ion Battery Electrode Stacking Machine
SPECIFICATIONS

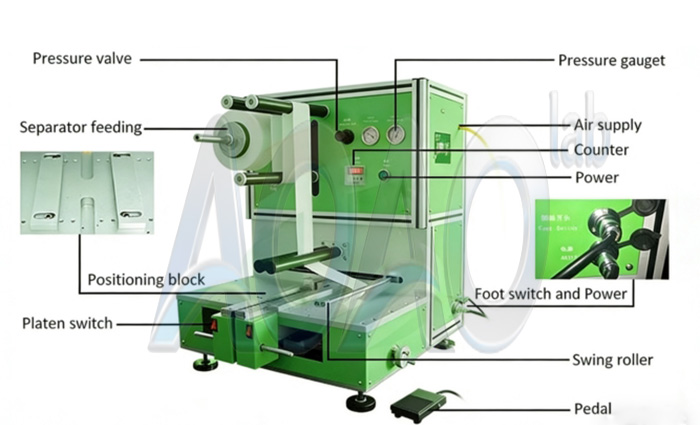

The device is suitable for Lithium battery Z-type lamination process. The device is equipped with correction device, diaphragm release tension control device and auxiliary positioning device, PLC control panel. Only need to manually feeding the electrodes, through the control button to control the cylinder to complete the stack. Simple operation and high efficiency.
Model | Semi-auto stacking machine AOAO-S-DP200-B |
Warranty | One year limited and list time support |
Maximum Separator diameter | φ220mm |
Applicable electrode size | L(0 ~ 210) mm, W(55~ 260) mm |
Separator width | 200mm |
Correction accuracy | 0.05mm |
Power supply | AC220V / 50Hz |
Compressed air source | 0.5MPa ~ 0.7MPa |
Dimension | 58 *58 *69 cm |
Net Weight | 77 kg |
Packing size | 75*75*93cm |

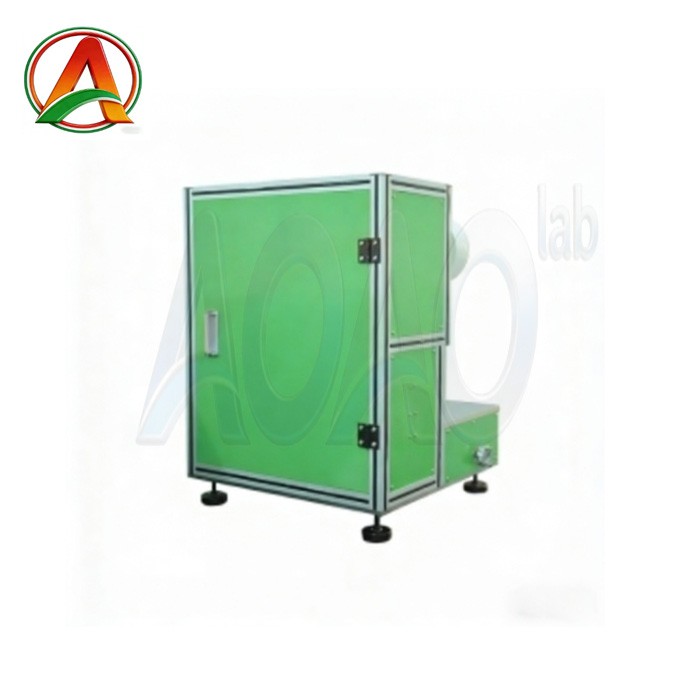

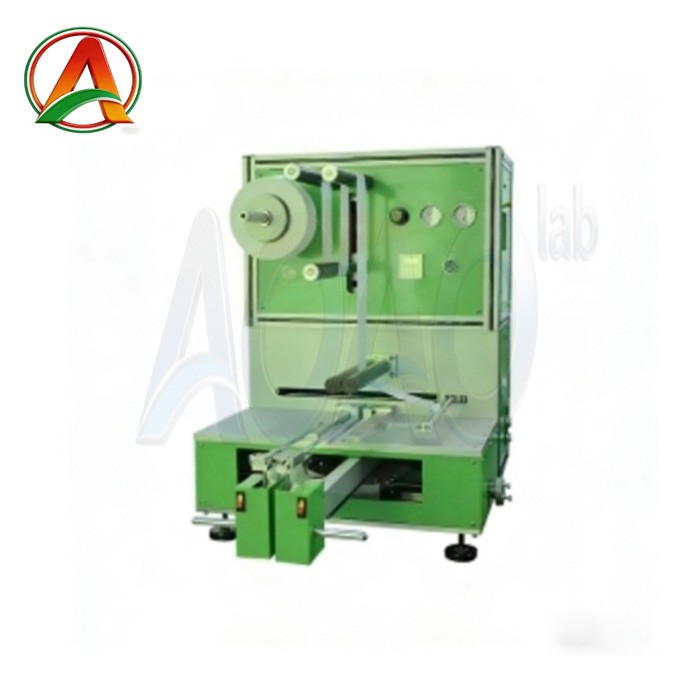

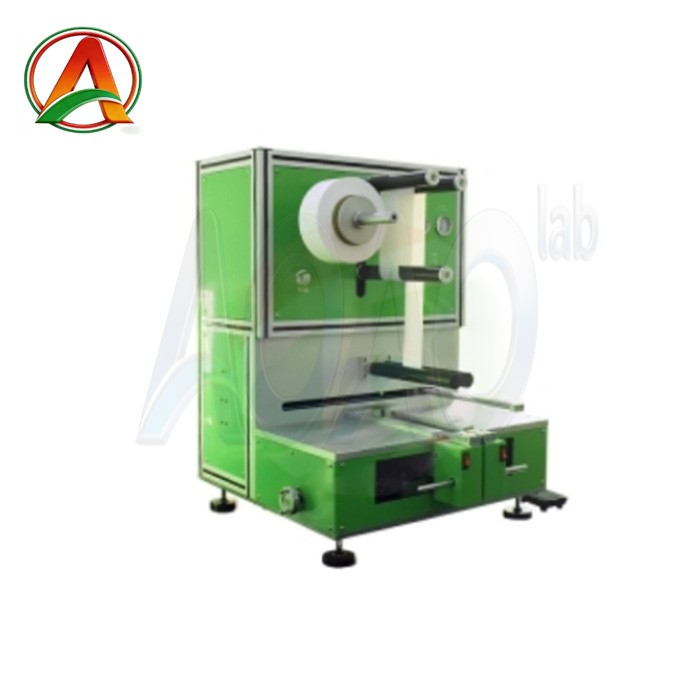

PRODUCT DISPLAY
