Pneumatic Coin Cell Crimping Tool Machine

Model Number:AOAO-QDF-20
Dimension(L*W*H):L290mm*W205mm*H330mm
Compliance:CE Certified
Warranty:Two years limited warranty with lifetime technical support
Payment:T/T, Western Union, PayPal, Credit Card, Cash, Alipay, L/C etc.
Delivery Time:5 days

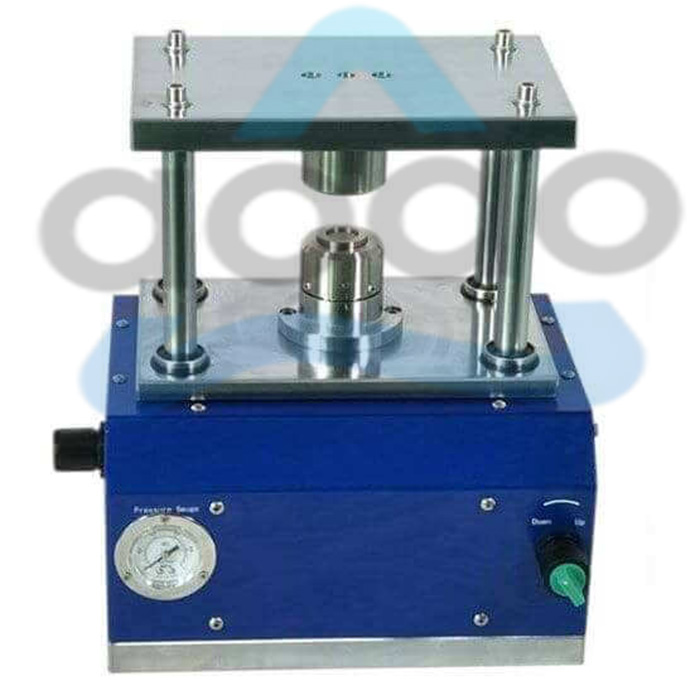

Pneumatic Coin Cell Crimping Tool Machine

1. AOAO-Pneumatic Coin Cell Crimping is a newly designed coin-cell sealing machine with lighter weight. It’s mainly used for coin cell battery material lab researching,

Capacitor sealing research,also be used in small batch trial production in factories.

equipped with different die,also used for disassemble battery,press electrode sheet,press battery powder,etc.

2. In addition, customers can easily replace the original die for disassembling purpose.

3. It can also be worked in glove box with smaller volume.

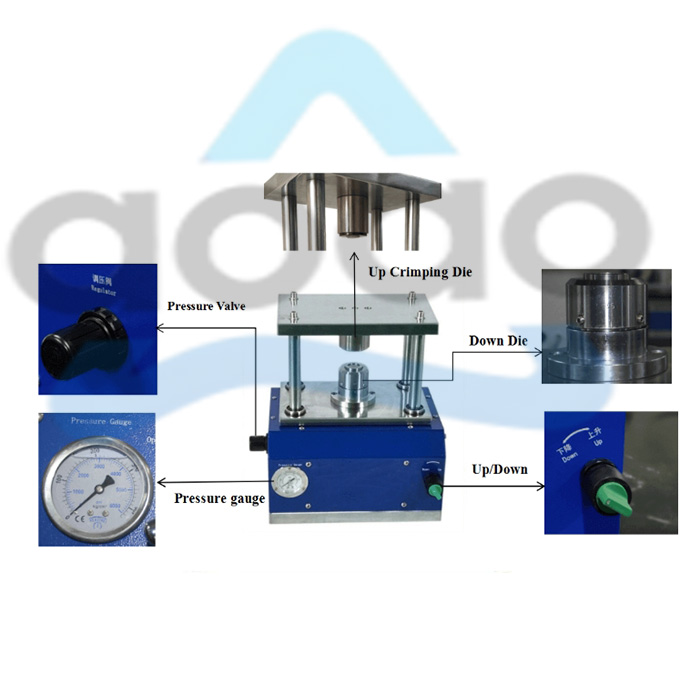

Machine Model	Pneumatic Coin Cell Crimping Machine AOAO-QDF-20
Gas source	0.6 0. 8mpa argon, nitrogen cylinders, or compressed air(Not suggest to use compressed air in glove box)
Exhaust design	Specially designed exhaust port, can external via connected by kf40 and other devices
Gas consumption	The gas consumption of single seal is about 480 ml
Crimping pressure	Manual control valve, maximum pressure 1mpa.recommended pressure 0.7mpa.accuracy ±0.5%
Crimping stroke	30mm
Crimping die	Standard crimping die is CR20xx, with optional die sets
Disassembling die	Optional or added various specifications such as CR16, CR20, CR24,CR30, etc.
Machine size	L290mmW205mmH330mm
N.W	25Kg
Structural material	High strength chromium steel, the surface after environmental plating and spray treatment will never rust.
Remark	With the function of preventing short circuit of battery crimping
