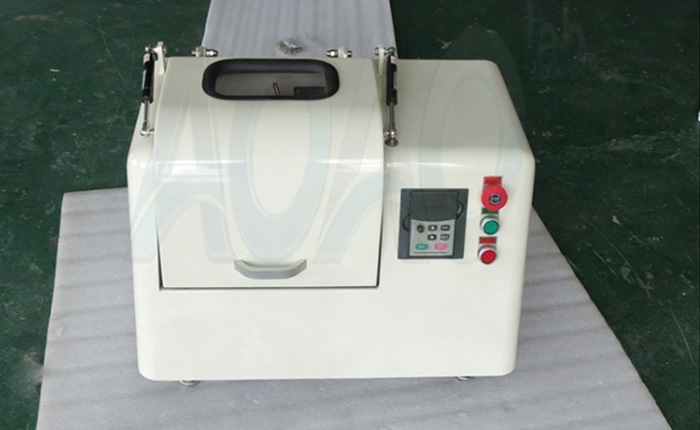

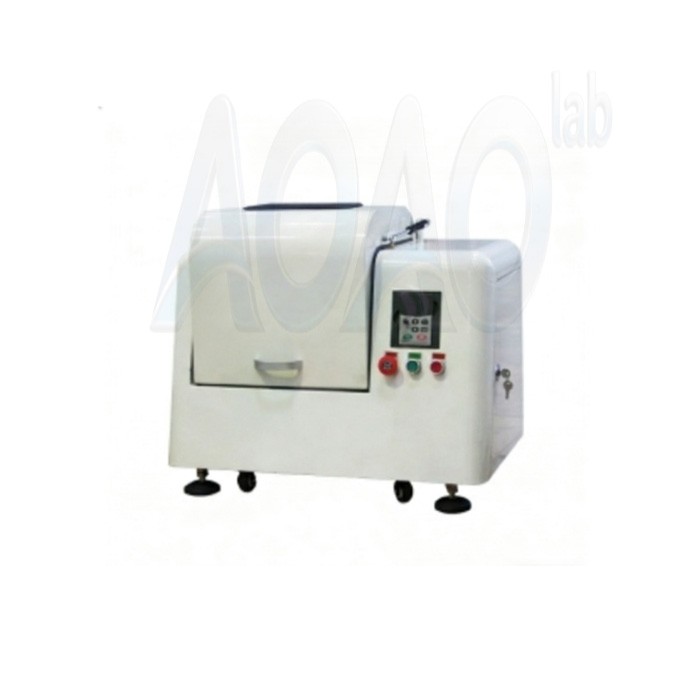

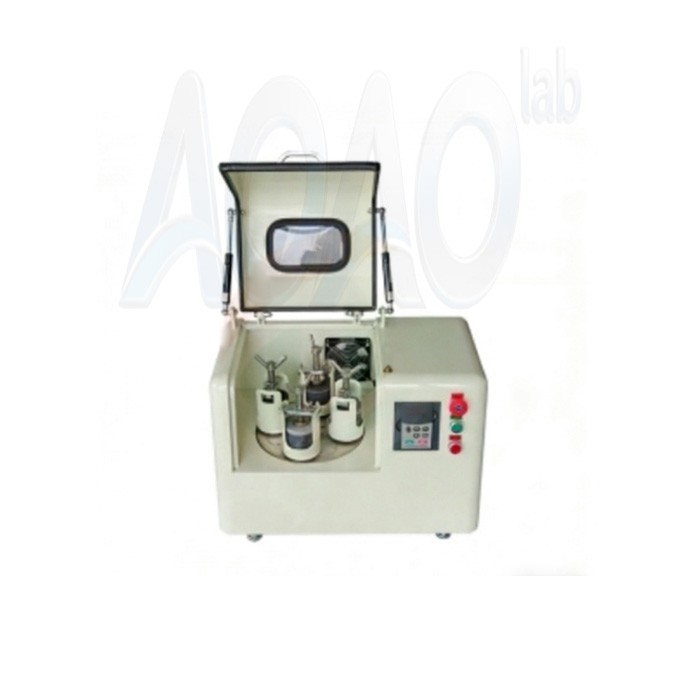

(Oil Seal Mute) Planetary Laboratory Ball Mill

(Oil Seal Mute) Planetary Laboratory Ball Mill

The laboratory planetary ball milling machine is Used in college, university, scientific research units and enterprises laboratory for rapid batch study sample grinding to the colloidal fineness

Brand:AOAO NEW ENERGY
item no.:AOAO-YXQM-0.4L
order(moq):1
Payment:L/C,T/T,Western Union
product origin:China
shipping port:XIAMEN
Lead Time:7

(Oil Seal Mute) Planetary Laboratory Ball Mill

(Oil Seal Mute) Small Planetary Laboratory Ball Mill Grinder Machine

1 The laboratory planetary ball milling machine is Used in college, university, scientific research units and enterprises laboratory for rapid batch study sample grinding to the colloidal fineness (sample diameter usually is less than 1 mm , solid particles is generally not more than 3 mm, soil allows 10 mm, Grinding min size up to 0.1um), it is can also be used in the mechanical alloying, and blending, homogenization and scattered.

2 Adopt gear oil seal, Increase service life and reduce noise.

3 Suitable for dry, wet and vacuum grinding mill.

SPECIFICATIONS

Model	(Oil Seal Mute) planetary ball mill AOAO-YXQM-0.4L
Source voltage	AC110V/220V 50/60HZ
Total power	0.55KW
Warranty	One year limited with lifetime support
Voice processing	Oil seal mute processing technology
Ball milling tank volume	50-100ml
Milling tank materials	Metal material: 304 stainless steel, cemented carbide (YG8)
	Nonmetallic material : ceramic/corundum/alumina, zirconia, agate
	High polymer material : nylon, polyurethane, ptfe
Ball mill medium	Stainless steel, ceramic/corundum/alumina, zirconia, agate, cemented carbide
Max charge of tank	No more 1/3 of the volume
Filling materials size	Crispy material is less than 10 mm, other less than 3 mm
Single tank fill quantity	50ml tank with 16ml material 100ml tank with 33ml material
Output material size	Min 0.1um
Grinding mode	Dry/wet/high-energy alloying grinding/vacuum/cryogenic grinding, last two model need customized
Max continuous working time	72 hours
Revolution speed	Revolution : 0-450r/min Rotation : 0-900r/min Speed ratio : 1:2
Dimension	600400500mm
Weight	60kg

Model		0.4L	1L	4L	12L	20L	40L	60L	100L
Move Speed（r/ min)	Revolution	30-460	30-670	30-400	30- 280	30- 220	30- 200	30- 185	30- 185
Move Speed（r/ min)	Rotation	60-920	60-335	60-800	60- 560	60- 440	60- 400	60- 370	60- 370
Motor Power（KW)		0.55	0.75	0.75	1.5	3	3	4	7
Frequency Control Power(KW)		0.55	0.75	0.75	1.5	3	3	4	7
Continuous Working Timer（min)		1～999
Positive and negative reversingtime（min)		1～99

Ball Mill Jar Introduction

(1)Commonly Used Types

Jar Type	Specification（Volume L）
Agate	0.05	0.15	0.25	0.3	0.4	0.5	1	2
Stainless Steel	0.05	0.1	0.25	0.35	0.5	1	4	5	8	10
Ceramic	0.1	0.25	0.5	1	4	5	10
Nylon	0.25	0.3	0.4	0.5	1	4	5	10
PU	0.25	0.5	1	2	4	5	7	12	16
Corundum	0.5	1	4	5	10
Zirconia	0.5	1	2	4	5	8	10
PTFE	0.5	1	2	5	8	10	12
Alloy	0.5	1	4	5

(2)Jar and Ball Match

Jar	Agate	Ceramic	Stainless Steel	Nylon	Steel	Alumina	Alloy	Zirconia
Ball	Agate	Ceramic	Stainless Steel	Nylon	Steel	Alumina	Alloy	Zirconia
Agate	●
Ceramic	▲	●
Stainless Steel			●		▲		▲
Nylon	▲			●
Steel					●		▲
Alumina						●		▲
Alloy							●
Zirconia						▲		●
● means best match effect ▲means matchable
