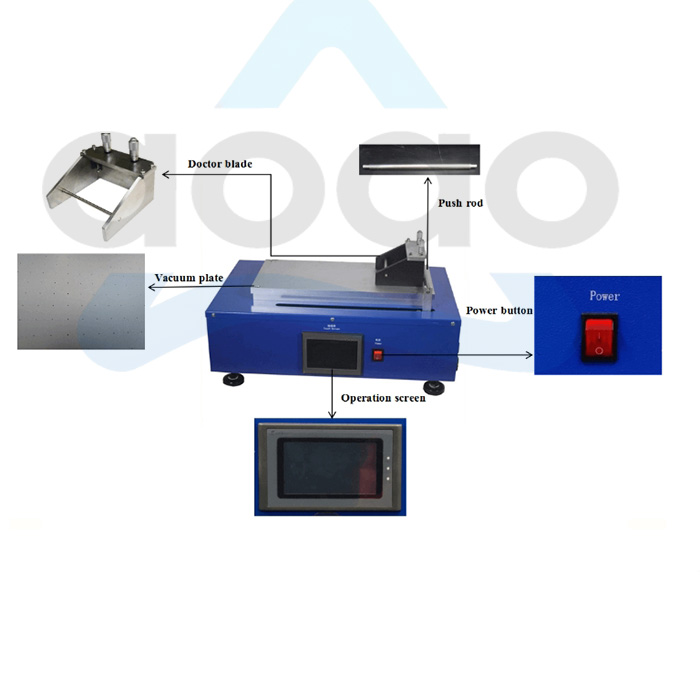

Lab Electrode Coater With Vacuum Chuck & 100-250mm Doctor Blade

Model Number:AOAO-DTM260
Dimension(L*W*H):Stroke Length:100-800 mm
Net Weight:50 kg (135 lbs)
Compliance:CE Certified
Warranty:One Year limited warranty with lifetime support
Payment:T/T, Western Union, PayPal, Credit Card, Cash, Alipay, L/C etc.
Delivery Time:5 days

Lab Electrode Coater With Vacuum Chuck & 100-250mm Doctor Blade

Key Features

· Bottom heating drying system for efficient and uniform drying.

· Adjustable coating speed ranging from 0 to 100mm/sec.

· Digital temperature control drying system for precise heating management.

· Adjustable stroke range (10-250mm) via a travel switch, with a vacuum aluminum plate for easy and quick placement or removal of substrates.

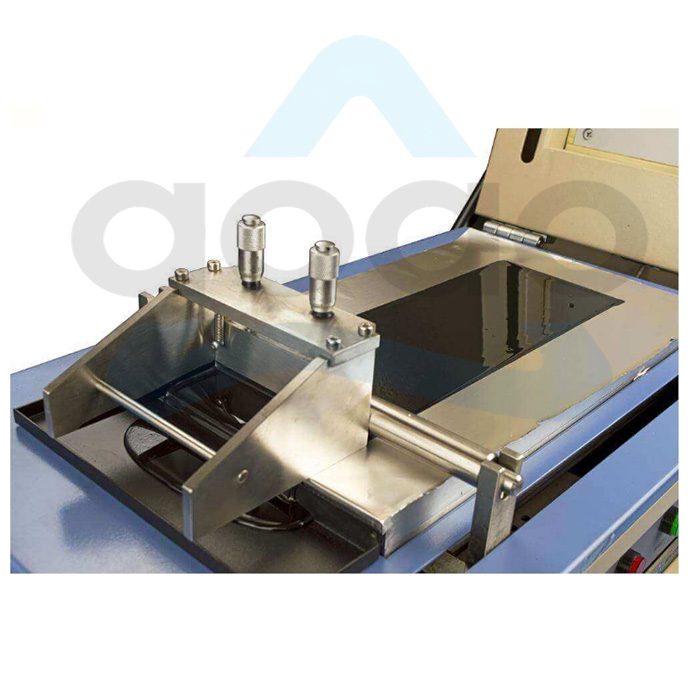

· Equipped with an adjustable film applicator for enhanced coating precision.

Technical Specifications

Parameter	Specification
Coating Speed	0-100 mm/sec (adjustable)
Maximum Stroke	250mm
Vacuum Plate	Equipped with a vacuum aluminum plate
Vacuum Plate Size	365mm × 200mm × 30mm (L × W × H)
Blade Adjustable Range	0.01 - 3.5mm
Power Supply	220V / 50Hz
Machine Weight	50kg
Machine Dimensions	500mm × 310mm × 260mm (L × W × H)
