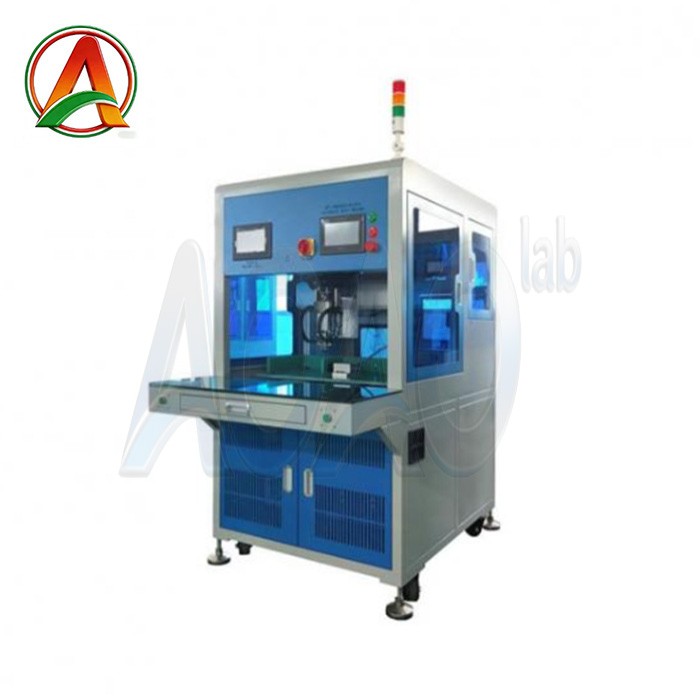

The AOAO-960XZ Single-Sided Automatic Spot Welding Machine is a high-efficiency battery pack assembly system designed for cylindrical cell welding applications. The machine integrates automatic welding, multi-axis servo motion control, and a rotary welding head, enabling precise and consistent welding of nickel tabs across various battery configurations.

This system is specifically engineered to handle pure nickel strips with thickness ranging from 0.1 mm to 0.3 mm, ensuring strong weld quality and stable electrical performance. With its programmable control system and high-speed welding capability, the machine is suitable for both small-batch production and large-scale battery pack manufacturing.

Core Advantages

Automatic Welding System

● The machine operates with a fully automated welding process, significantly improving production efficiency while reducing operator dependency. Welding parameters can be precisely controlled and stored for repeatable production.

Rotary Welding Head Design

● The integrated rotary welding head supports angle adjustment within ±45°, allowing flexible welding positions for complex battery pack structures and improving accessibility in multi-row configurations.

Pure Nickel Welding Capability (0.1–0.3 mm)

Optimized for battery manufacturing, the system supports:
● 0.1–0.2 mm pure nickel strip direct welding
● 0.21–0.3 mm nickel strip (slotting or projection required)
● Copper-nickel alloy welding with structured slot design
● This ensures compatibility with a wide range of battery pack designs.

Technical Specifications

Main Components List

Application Scenarios

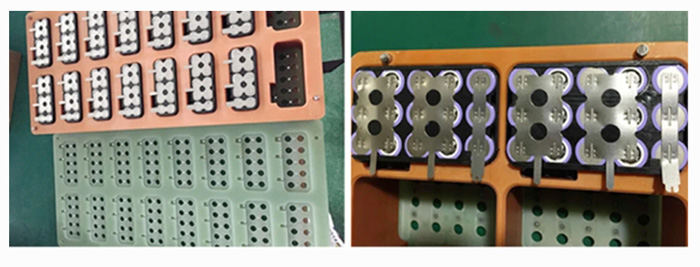

The equipment is suitable for welding cylindrical Lithium battery packs, including:

● Power tool batteries
● E-scooter battery packs
● Energy storage battery systems
● Electric vehicle battery modules
● Balance scooter battery packs

Compatible with multiple cylindrical cell formats: 14500 / 18500 / 18650 / 18730 / 21700 / 26650 / 32700

Welding System & Control Features

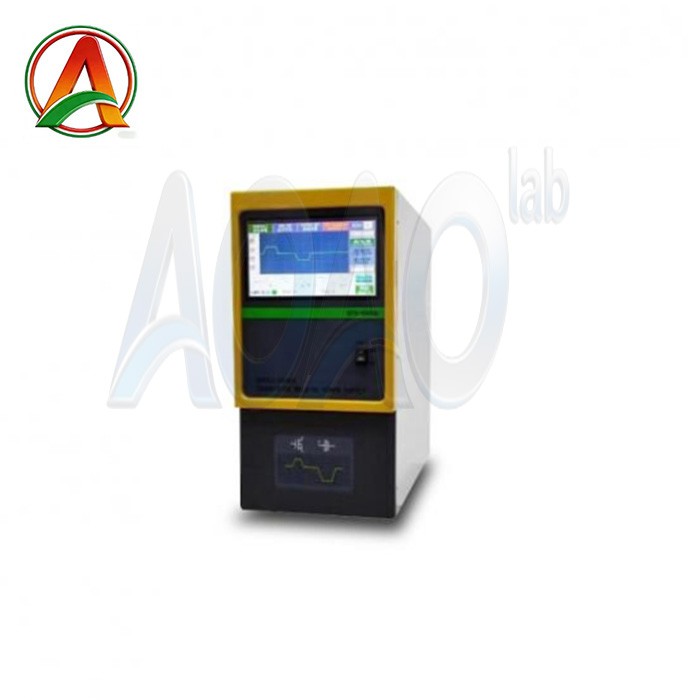

● High-speed transistor welding power supply (2–10 ms welding time)
● Low heat input to prevent battery damage
● Real-time welding monitoring (current deficiency or spark detection)
● Automatic alarm and machine stop in case of abnormal welding
● Independent current setting for positive and negative terminals
● Welding completion signal to optimize cycle time
● Flexible Programming Methods
● Matrix input method
● Array input method
● USB data import (CAD-based welding path import/export across machines)

Human-Machine Interface

The system is equipped with a 7-inch color touchscreen, supporting both Chinese and English interfaces. It allows:

● Welding parameter setting
● Program storage (0–199 groups)
● Quick model switching
● Fault diagnosis and alarm display

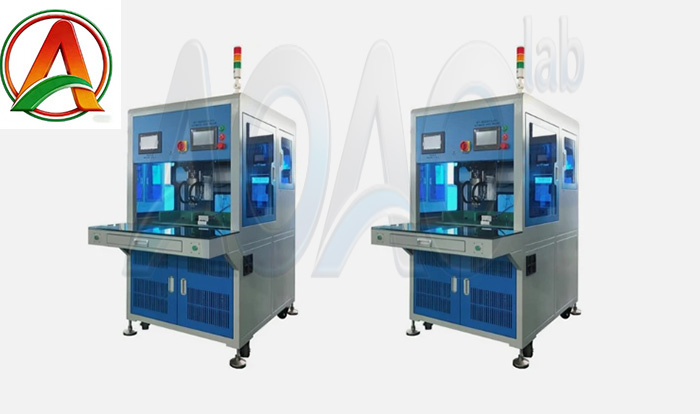

PRODUCT DISPLAY
