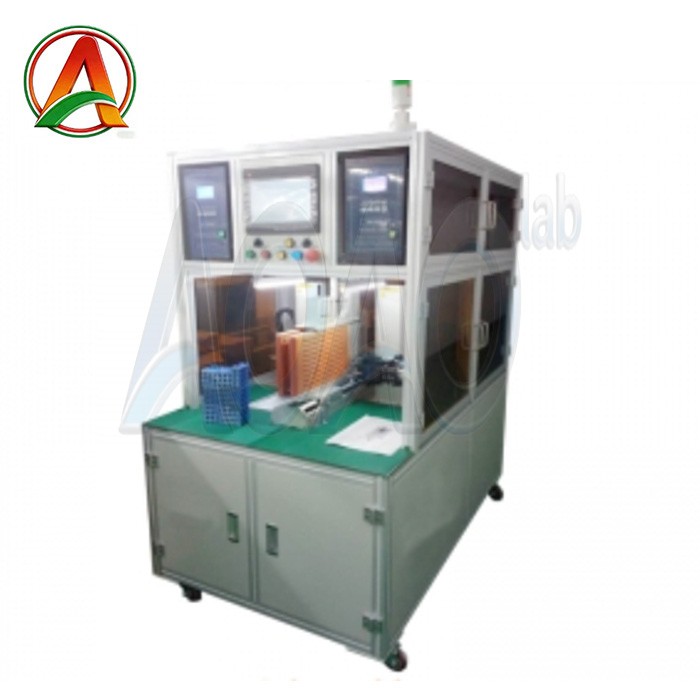

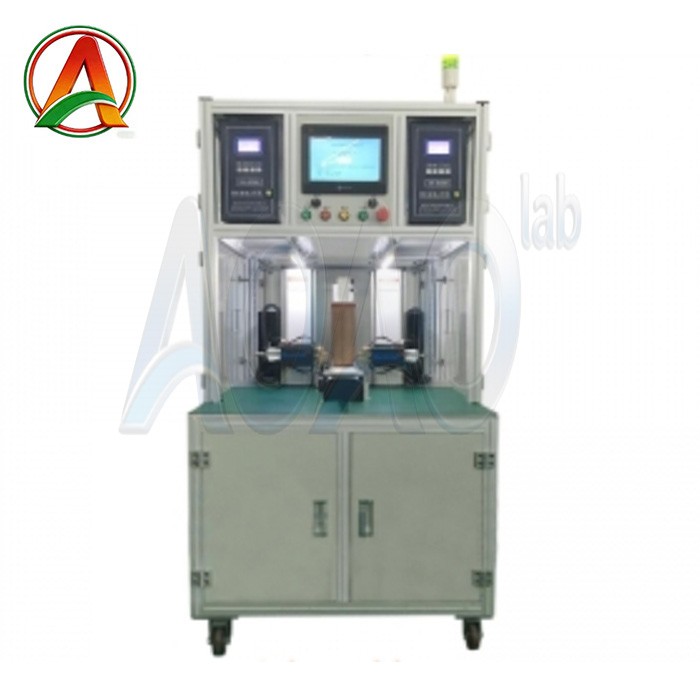

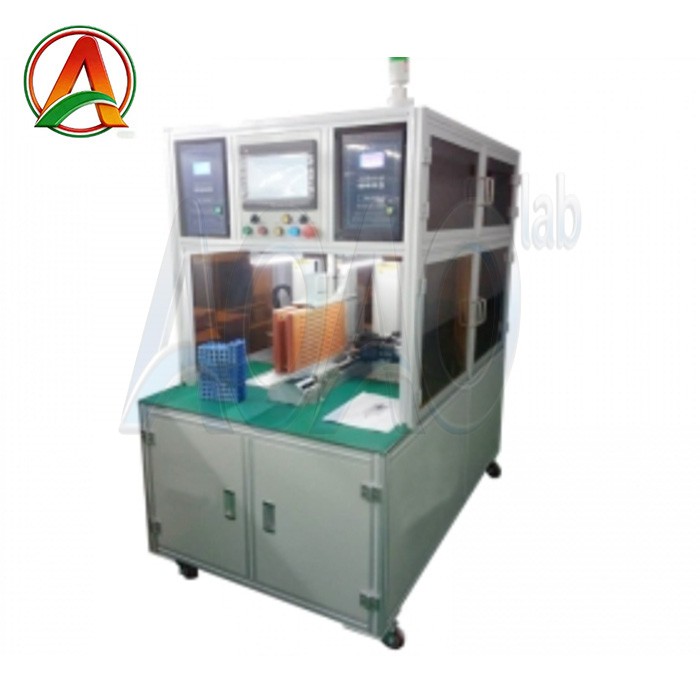

Automatic 18650 Battery Pack Welding Machine Double Side Welding

Automatic 18650 Battery Pack Welding Machine Double Side Welding

Brand:AOAO NEW ENERGY
item no.:AOAO-DH20000
order(moq):1set
Payment:L/C,T/T,Western Union, Paypal
product origin:China
shipping port:XIAMEN
Lead Time:7days

Automatic 18650 Battery Pack Welding Machine Double Side Welding

SPECIFICATIONS

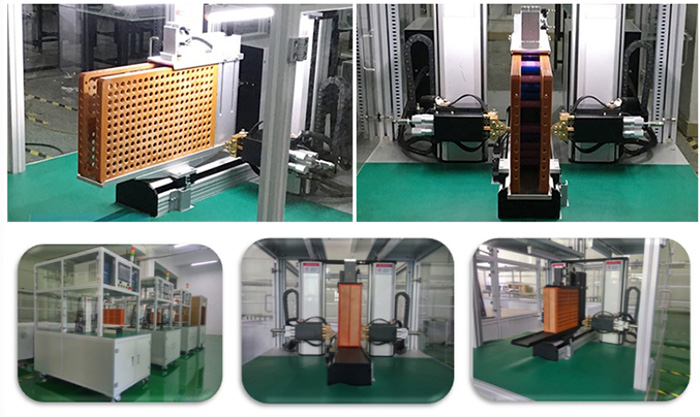

This machine is used for18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.

Features :

1.Support break point start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.

Model	Automatic Battery Pack Welding Machine AOAO-DH-20000
Y-axis travel	500mm
Z-axis travel	300mm
Spot welding speed	0.5s / point; 3200pcs / h
Maximum speed of motor drive	1000mm/s
The maximum number of batteries loaded	200pcs (standard 18650 lithium battery)
Number of groups for storing files	99 groups
Operating system	Embedded system + man-machine screen
Transmission	Stepper + imported precision linear guide (optional servo + screw)
Power supply	Single-phase 220V ± 10% / 50Hz ± 10%
Air supply	0.3 ~ 0.4Mpa
Weight	400KG
Dimensions	900mm1300mm1800mm
Welding machine parameter	Power supply : AC220V±10% 50Hz Max output current : 8000A Max power : 35kva Welding current checking Dimension : 185(W)270(H)425(D)mm
