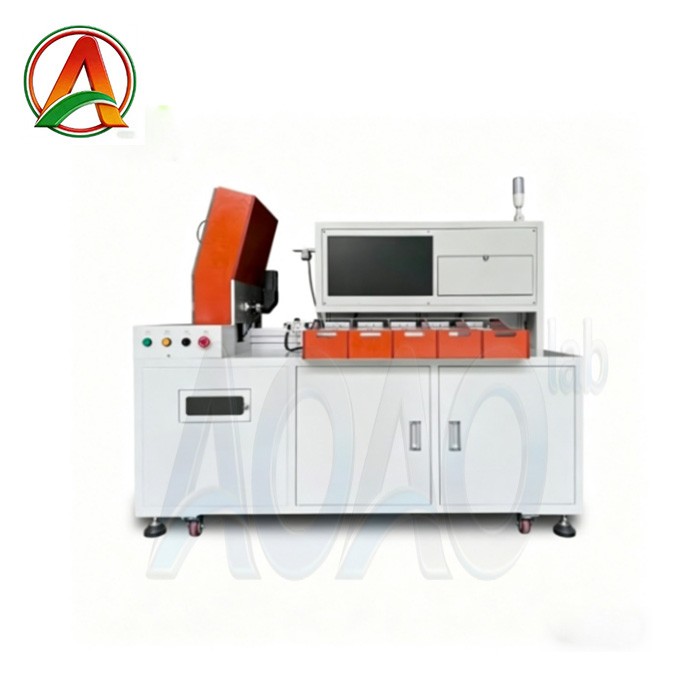

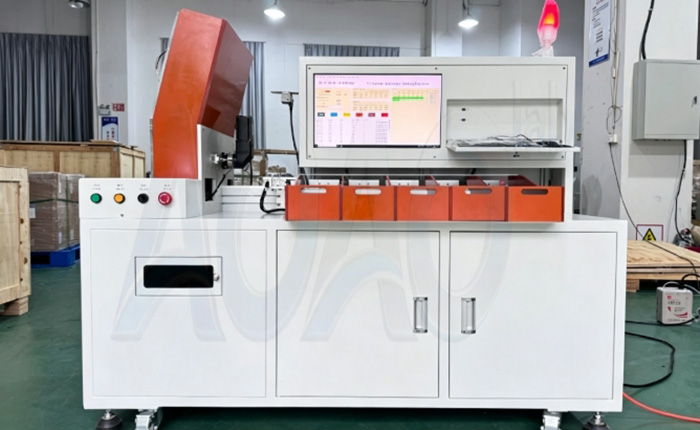

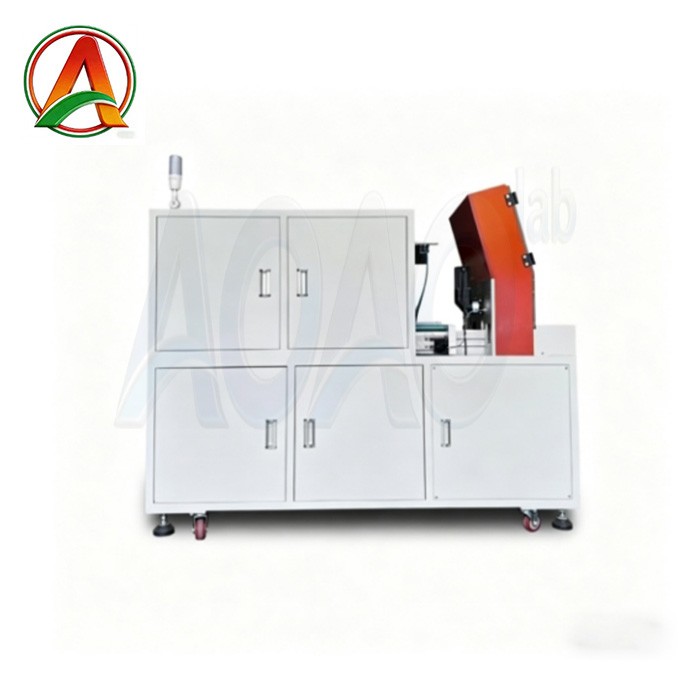

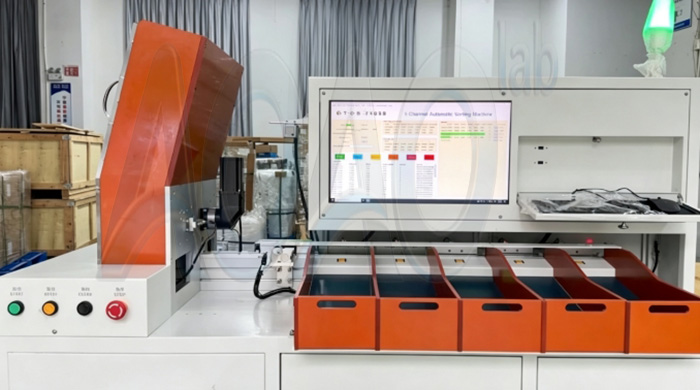

5 Channel Auto Sorting Machine for 32140 Cells

5 Channel Auto Sorting Machine for 32140 Cells

Brand:AOAO NEW ENERGY
item no.:AOAO-FX-5-B
order(moq):1set
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

5 Channel Auto Sorting Machine for 32140 Cells

SPECIFICATIONS

Equipment overview

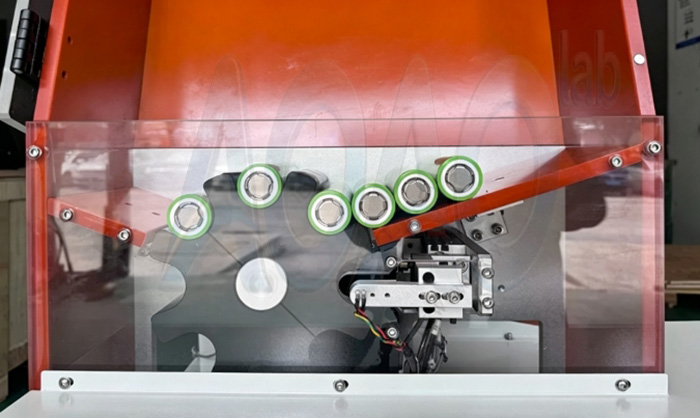

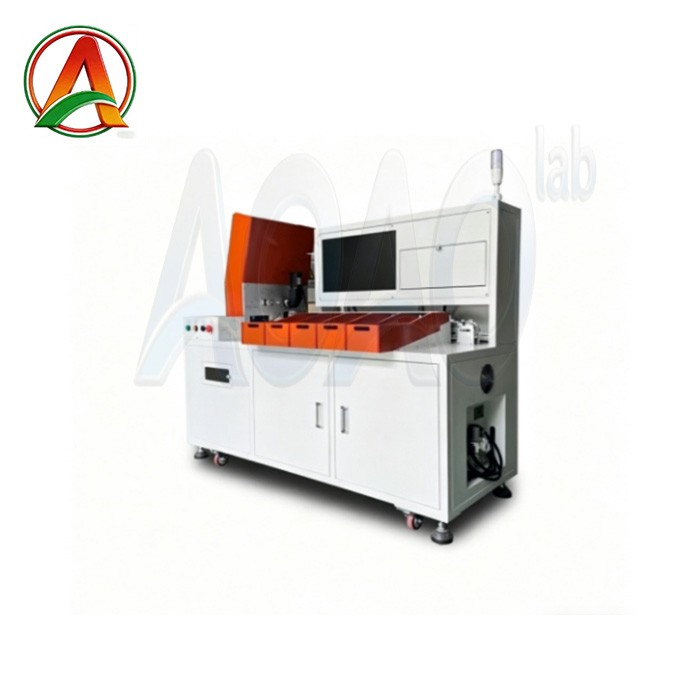

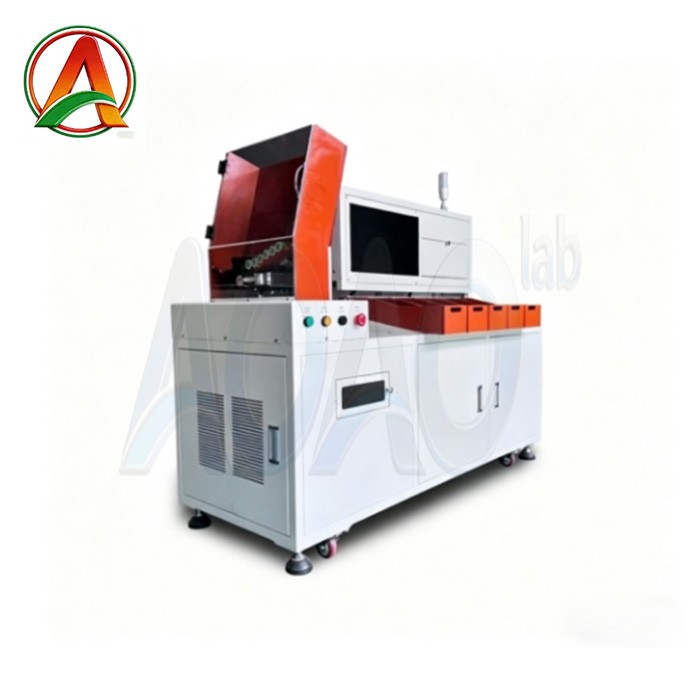

AOAO-FX-5-B 5-channel battery sorting machine is suitable for sorting and testing 32140 cells. This machine uses the tank hopper to load materials, which can analyze and save the battery test data, and eliminate the bad batteries. The sorted and paired batteries are collected by the receiving tank, which is convenient for the operator to manage.

Functional characteristics

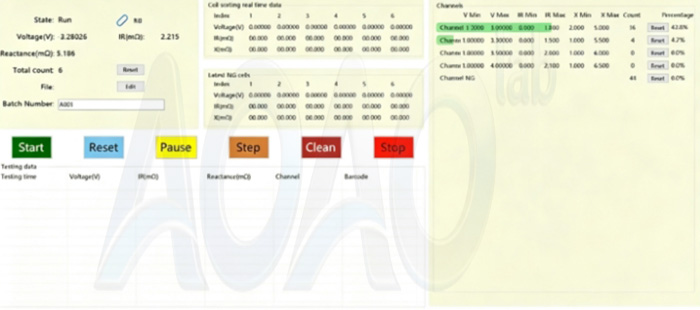

● With the integration of industrial control, all parameters of the battery can be traced, convenient data management, simple operation. Battery voltage, battery internal resistance, group information and other management functions.

● Suitable for various types of batteries, easy to change.

● Built-in high precision and general HK3561 internal resistance tester, high test accuracy, fast speed.(Optional tester: Hioki BT4560)

Technical parameters

Model	AOAO-FX-5-B
Equipment efficiency	40～50PPM
Utilization rate	≥95%
Channel number	5（4 chanel for different range，1 channel for NG）
Instrument internal resistance detection accuracy	±0.5% rdg, Display resolution is 0.01 milliohm
Instrument voltage detection accuracy	±0.05% rdg, Display resolution: 0.1 millivolts
Repeated error in internal resistance detection	< 1 milliohm (AC internal resistance detection method)
Voltage detection repetition error	< 1 millivolt
Control system	PC Industrial Computer (Embedded system)
Input power consumption	1KW
Input power supply	AC220V/50HZ
Compressed air source	≥0.6Mpa
Display	Philips 21.5-inch display
Device appearance Reference dimensions	LWH=16207101360mm
Machine weight	350KG
