Precision Automatic Winder for Electrode Assembly of Cylindrical Battery 18650

SPECIFICATIONS

1 The Battery Winding Machine is a semi-automatic winding machine used for lithium cylinder battery precision winding for production line.

2 The battery winding machine can suitable for different model of battery by changing winding blade, The change work is simple operation.

Advantages :

1 Adopt single needle structure, movement type to achieve drop needle and needle at same time, Feeding electrode more easily, reduce electrode out.

2 Artificial feeding electrode, automatic winding, automatic needle change, automatic termination of adhesive tape and automatic blanking.

3 Adopt Embedded controller to realize the battery winding tension control, Using MATLAB to analyzer battery separator diameter and roller core change, to generate the best fitting curve control winding process.

4 With electrode dust removal system

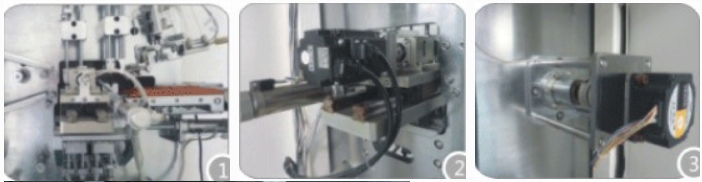

Product Display
