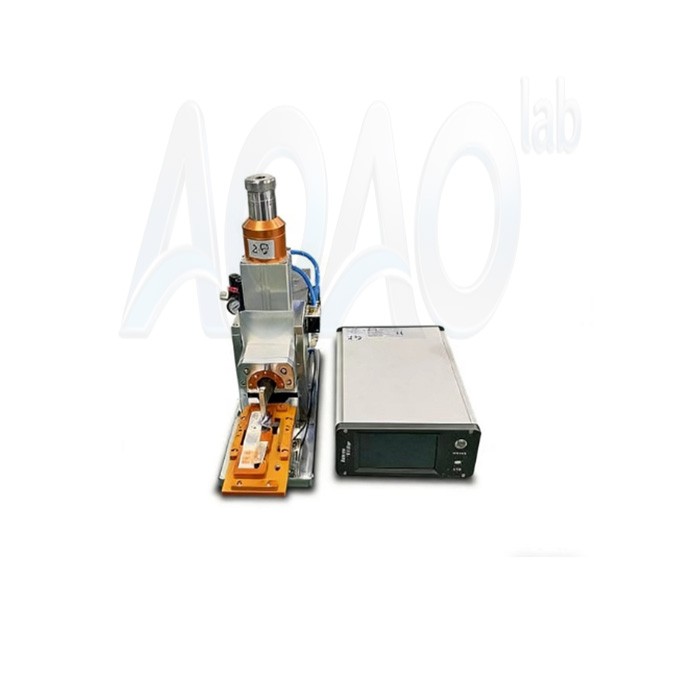

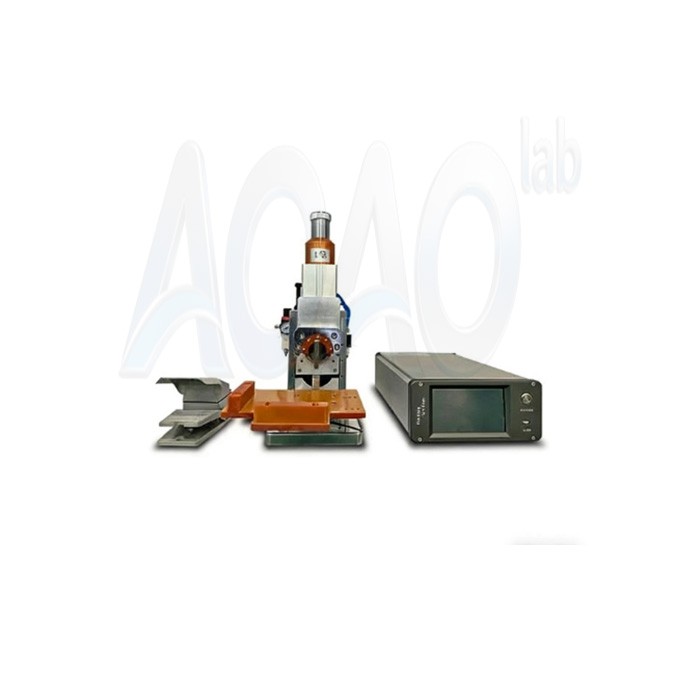

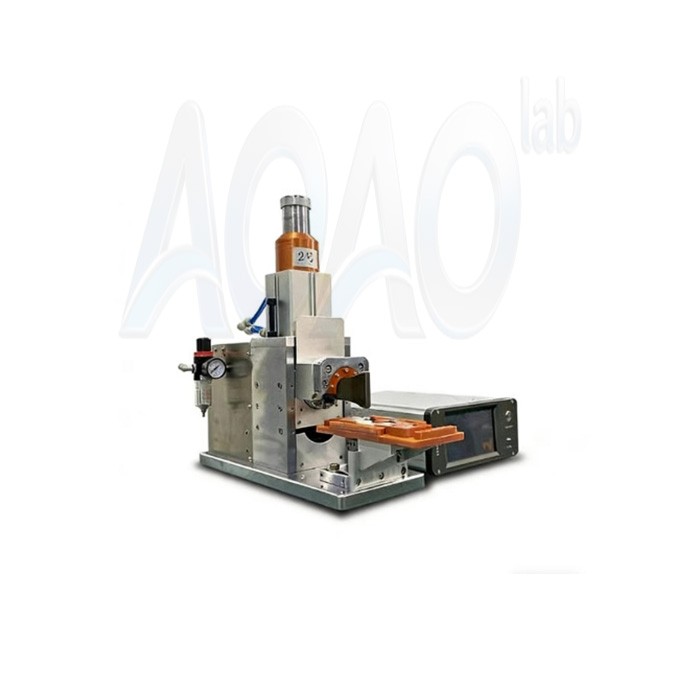

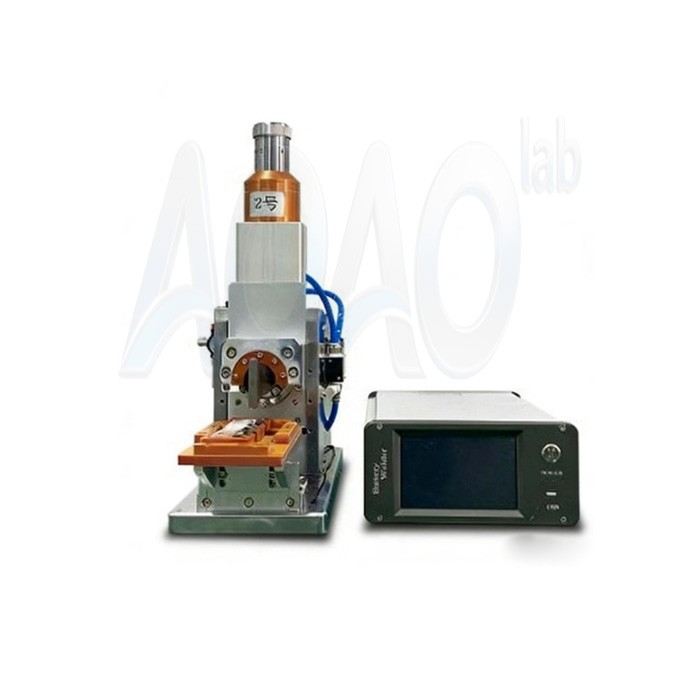

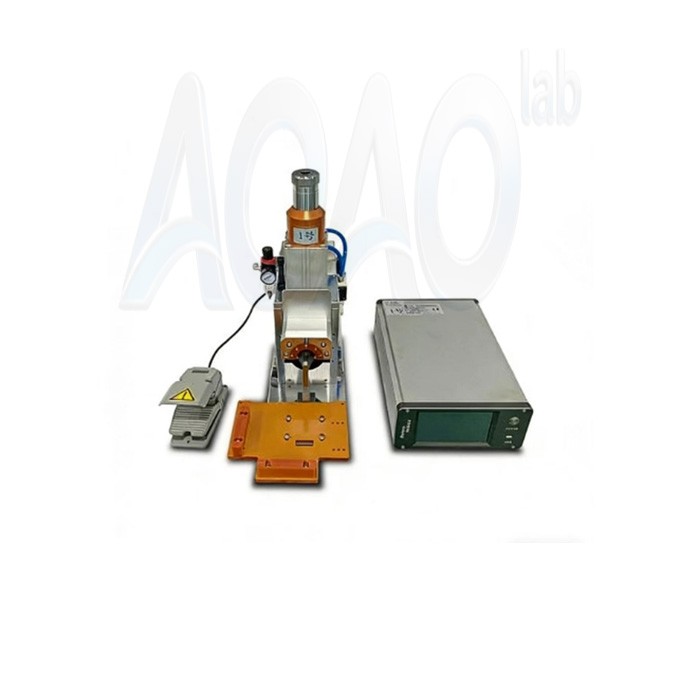

Ultrasonic Metal Welding Machine for Prismatic Cell
This AOAO-USW-4000W/6000W ultrasonic metal welding machine is suitable for prismatic cell battery tab pre-welding, battery tab and connector welding, battery tab and lid welding.
Brand:AOAO NEW ENERGY
item no.:AOAO-USW-4000W/6000W
order(moq):1
Payment:L/C, T/T
product origin:China
shipping port:XIAMEN
Ultrasonic Metal Welding Machine for Prismatic Cell
SPECIFICATIONS
This AOAO-USW-4000W/6000W ultrasonic metal welding machine is suitable for prismatic cell battery tab pre-welding, battery tab and connector welding, battery tab and lid welding.
Product Features
1.Automatic frequency tracking and intelligent amplitude segmentation
2.Multiple control modes such as time, energy, time+energy, etc
3.Frequency, amplitude, power, energy, time+energy upper and lower limit alarm prompt
4.Standard communication protocol for reading welding data
5.Parameter setting password protection
Product model | Ultrasound frequency | Ultrasound power | Use volage | Application |
AOAO-USW-4000W | 20KHz | 4000W | 220V,50/60Hz | Pre-welding 10-80 layers, welding area within 200mm2; Final welding, PACK aluminum to nickel, welding surface 50mm2 internal welding, etc. |
AOAO-USW-6000W | 20KHz | 5000-6000W | 220V,50/60Hz | The final welding is within 60 layers, and the welding area is 80mm2 |
Product characteristics
Real-time automatic tracking of ultrasonic frequency, constant amplitude compensation | Frequency, amplitude, power, energy, time energy upper and lower limits of alarm |
Time, energy, time energy and other control modes | The mechanical structure of the machine head adopts the German X-rail structure, which has extremely high precision |
Parameter to set password protection | The unique ultrasonic welding unit design maximizes the conversion of ultrasonic energy to the welded product |
Standard communication protocol reads welding machine data |

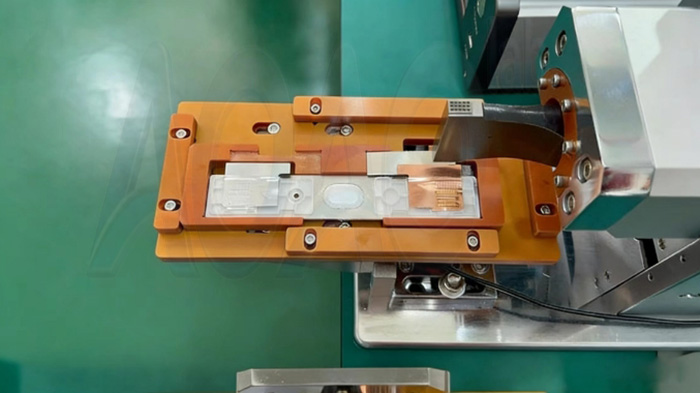

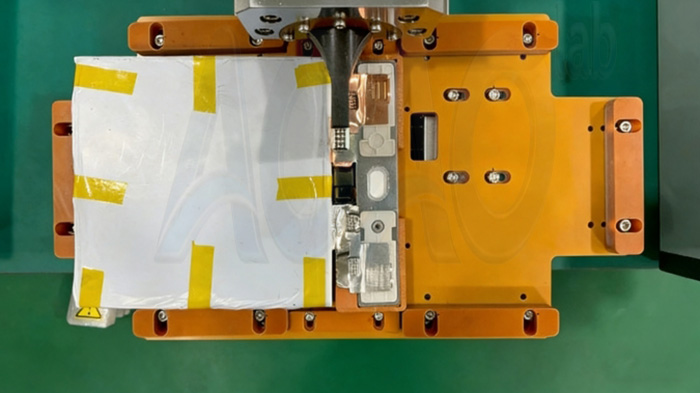

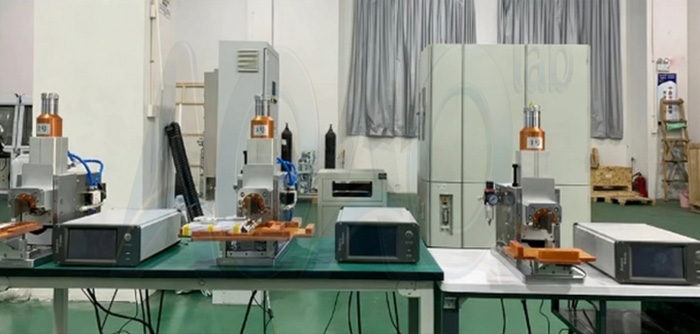

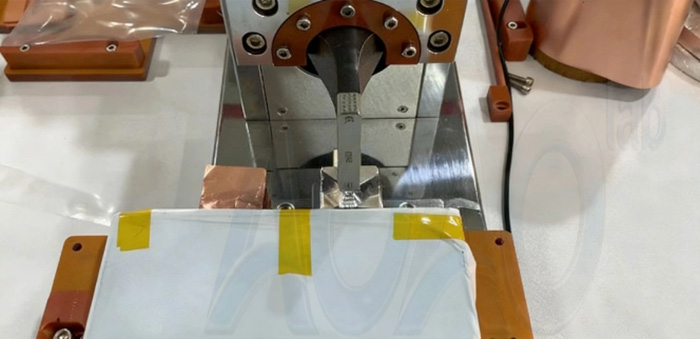

Product Display
