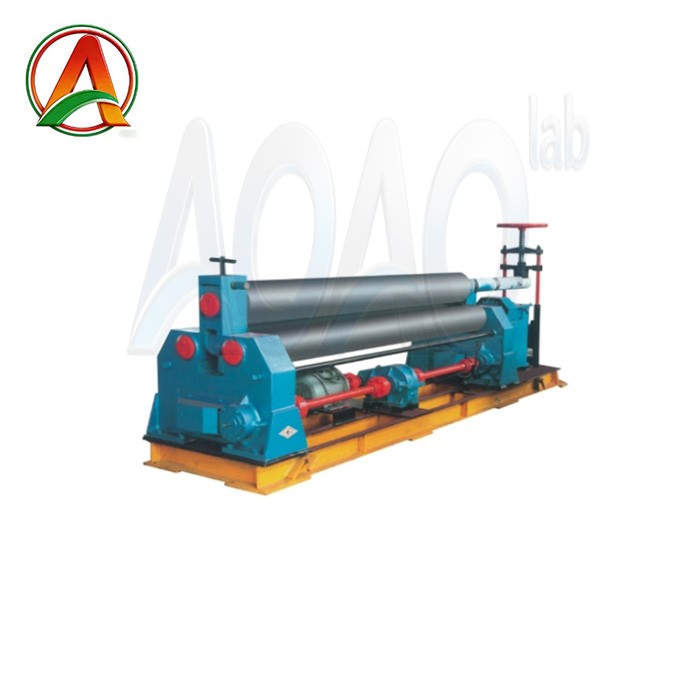

Symmetrical Mechanical Plate Bending Rolling Machine With Three Rollers
Model Number:AOAO-W11
Compliance:CE Certified
Warranty:1 Year limited warranty with lifetime support
MOQ:1
Payment:L/C D/A D/P T/T Western Union
Delivery Time:5 days
Symmetrical Mechanical Plate Bending Rolling Machine With Three Rollers
Features
W11 three-roller rolling machine use mechanical driven mechanism,upper roller,special side wheel can be installed according to customers' specialrequirement,in order toprocess differ-ent kind of material,such as anglesteel rolling,round steel pipe rolling and etc
Technical parameter
Type | Max. Thickness of plate | Max. Width of plate | Plate yield limit | Rolling speed | Min dia. In full load | Dia. Of upper roller | Dia. of lower roller | Center distance of lower roller | Main motor power | Weight | Dimension |
Unit | mm | mm | mpa | M/min | mm | mm | mm | mm | KW | T | mm |
W11-6x1500 | 6 | 1500 | 265 | 7.16 | 380 | 180 | 160 | 210 | 5.5 | 2.6 | 3310x1210x1330 |
W11-6x2000 | 6 | 2000 | 265 | 7.16 | 380 | 180 | 160 | 220 | 5.5 | 3.1 | 3810x1210x1330 |
W11-6x2500 | 6 | 2500 | 265 | 7.16 | 500 | 190 | 170 | 260 | 7.5 | 4.6 | 4310x1210x1330 |
W11-6x3200 | 6 | 3200 | 265 | 6.45 | 500 | 240 | 200 | 310 | 11 | 7.2 | 5200x1400x1200 |
W11-8x2000 | 8 | 2000 | 265 | 7.16 | 450 | 190 | 170 | 260 | 7.5 | 4.1 | 3810x1210x1330 |
W11-8x2500 | 8 | 2500 | 265 | 6.46 | 500 | 2450 | 200 | 310 | 11 | 5.5 | 4500x1420x1610 |
W11-12x2000 | 12 | 2000 | 265 | 5 | 500 | 240 | 200 | 310 | 11 | 5.5 | 4050x1420x1610 |
W11-12x2500 | 12 | 2500 | 265 | 5 | 750 | 260 | 220 | 330 | 11 | 6.3 | 5000x1500x1300 |
