Solid State Battery Manometer

Solid State Battery Manometer

SPECIFICATIONS

1. Product use

1) It is widely applicable to the charge and discharge test of various halides, sulfides and other solid or semi-solid under the same (non) pressure and pressure conditions.

2) The mold can be equipped with two/three electrode all-solid-state battery for testing.

2. Product features

1) The unique thread/O-ring compression design makes the product have good sealing performance.

2) The external metal support is made of stainless steel, which can ensure that the pressure does not change during the test.

3) The mold is small and easy to assemble. It is convenient for assembly and high-throughput test in glove box.

4) The positive and negative poles are led separately to prevent short test process.

5) Expandable test of three-electrode all-solid-state battery.

Easy to use and assemble, easy to operate in glove box

Pressure bearing can reach more than 500Mpa

Pressure test mold parameters:

Material: The main body is made of PEEK or ceramic (optional)

Withstand voltage: above 500Mpa

Appearance: diameter 69mm, height 108mm

Electrode diameter 10mm (JYG-10) (can be customized as required)

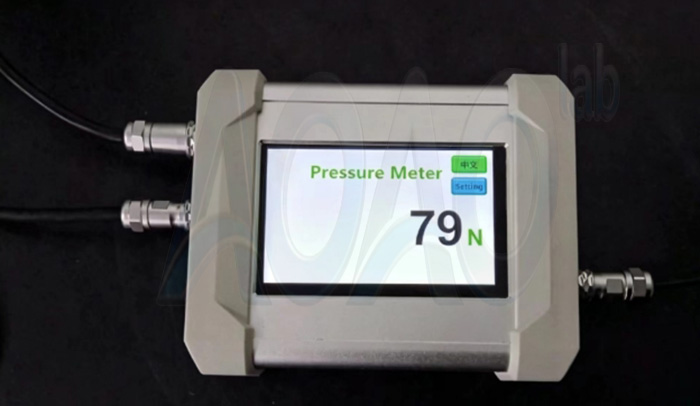

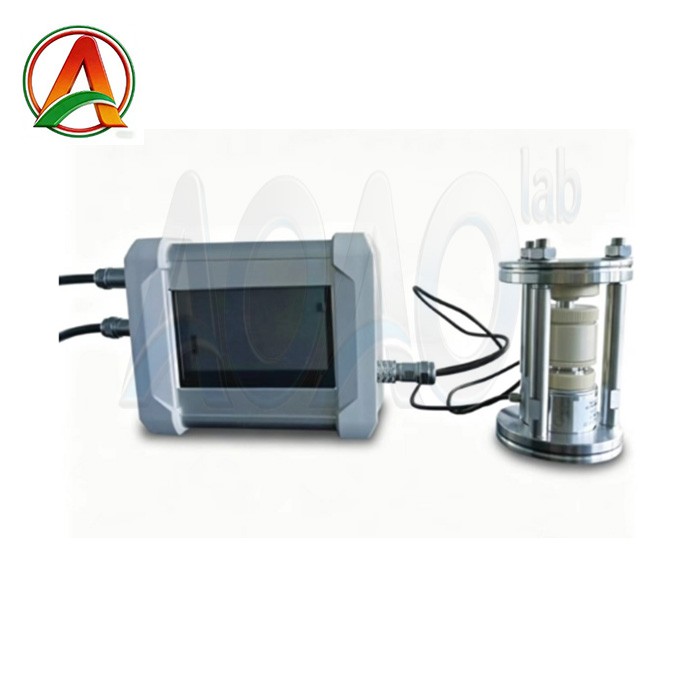

3. Online pressure test system (JYGS-10)

1) Real-time online monitoring of pressure changes and display

2) Sensitivity; 1.5mv/v

3) Sensor accuracy is about 0.1%

4) Curve real-time recording function

5) Connect computer test

(1) Size: 154 * 127 * 49mm (L * W * H) (200Mpa) Weight: about 1KG

(2) Diameter 69mm, height 108mm (500Mpa)

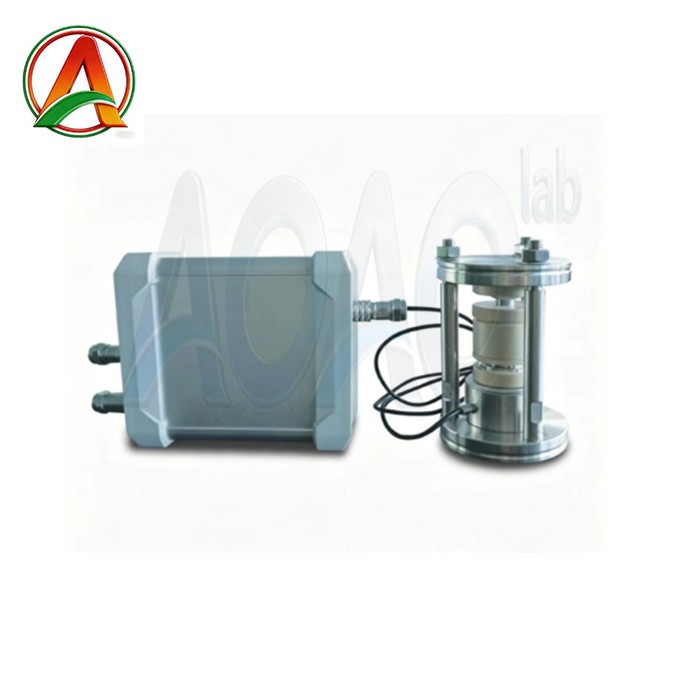

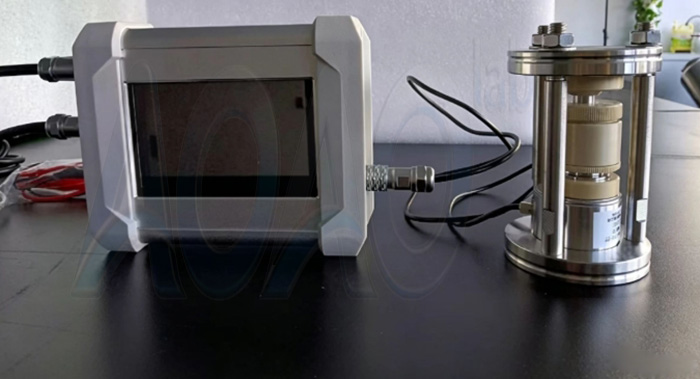

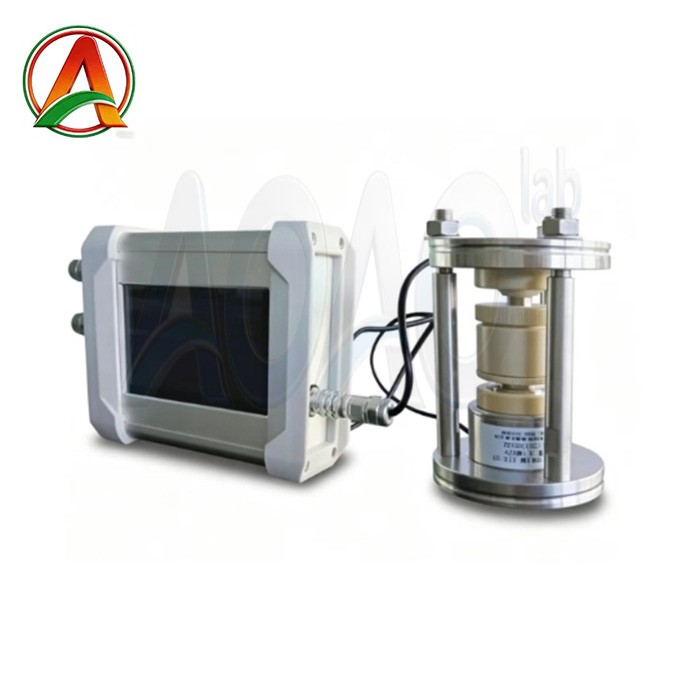

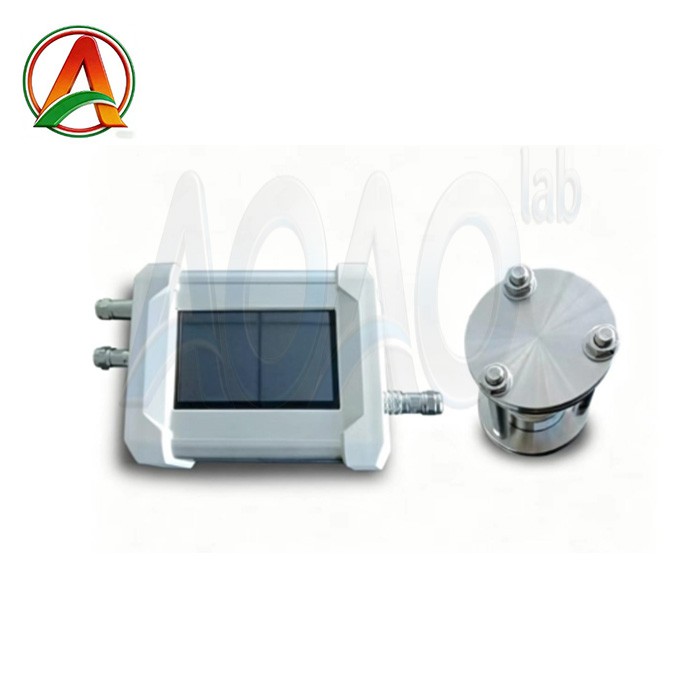

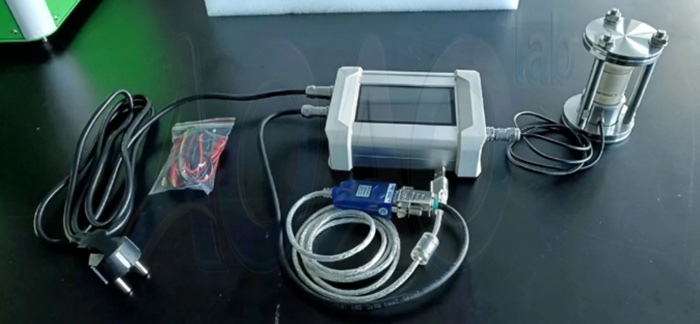

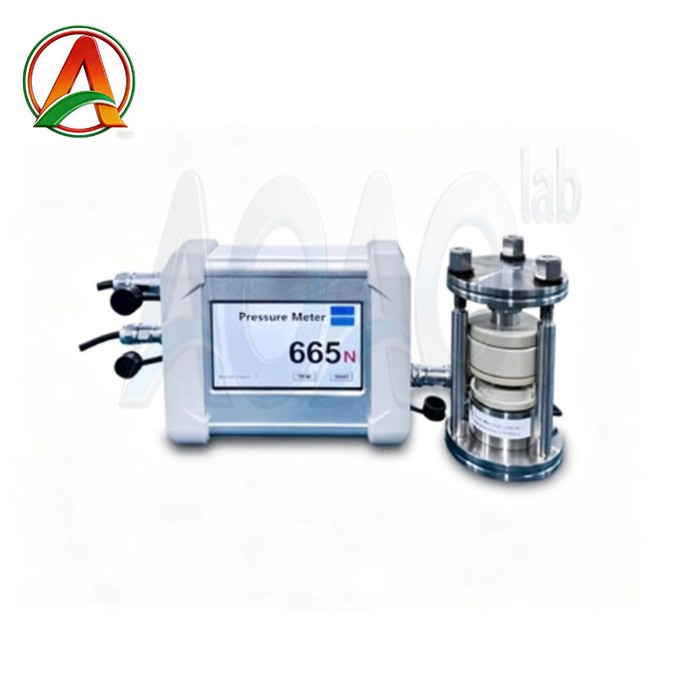

PRODUCT DISPLAY
