AOAO Solid State Battery Split Cell Test Kit

Brand:AOAO NEW ENERGY

item no.:AOAO-YCGT-Series

order(moq):1

Payment:L/C,T/T

product origin:China

shipping port:xiamen

AOAO Solid State Battery Split Cell Test Kit

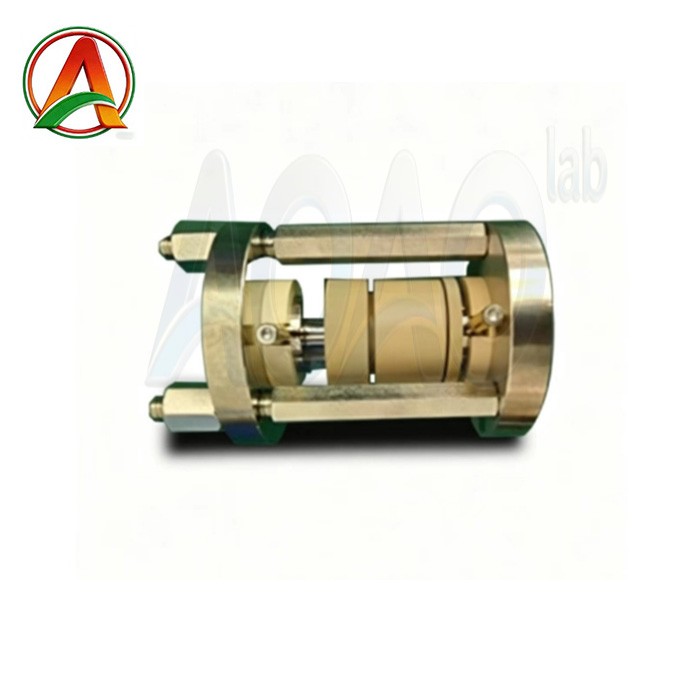

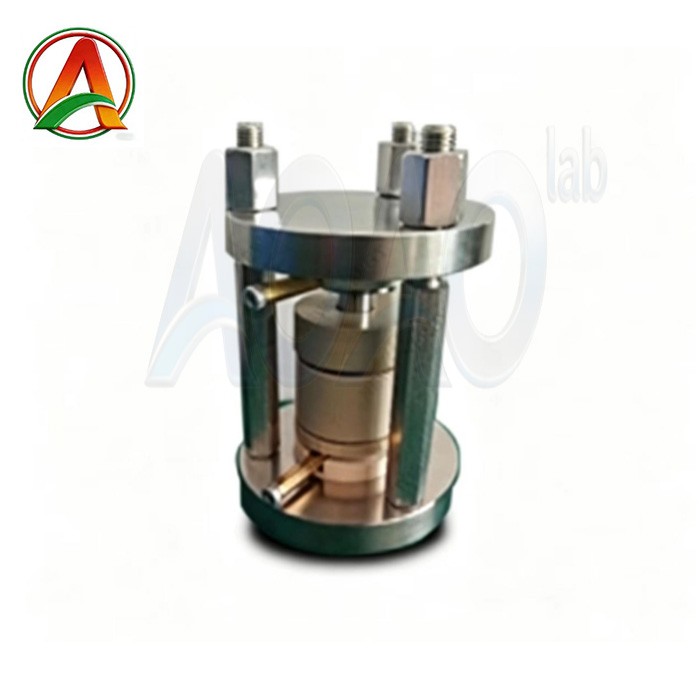

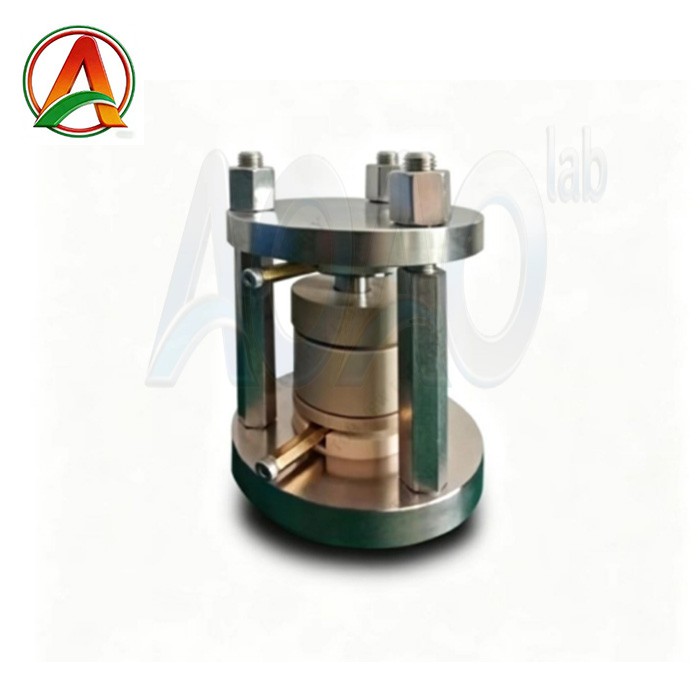

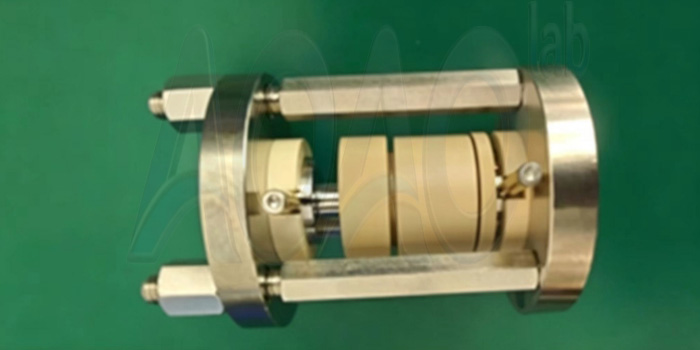

Ⅰ. AOAO-YCGT-10 Solid State Battery Split Cell Test Kit

(1) Optional inner diameters: 10, 12, 13, 16 (mm), for other sizes, please contact us for customization.

(2) For 10 mm inner diameter, optional PEEK or zirconia ceramic sleeves. Sleeves are interchangeable.

(3) Fixture outer diameter: 70 mm. Height from base to the top of the three-column assembly: 109 mm.

AOAO Solid State Battery Split Cell Test Kit.jpg

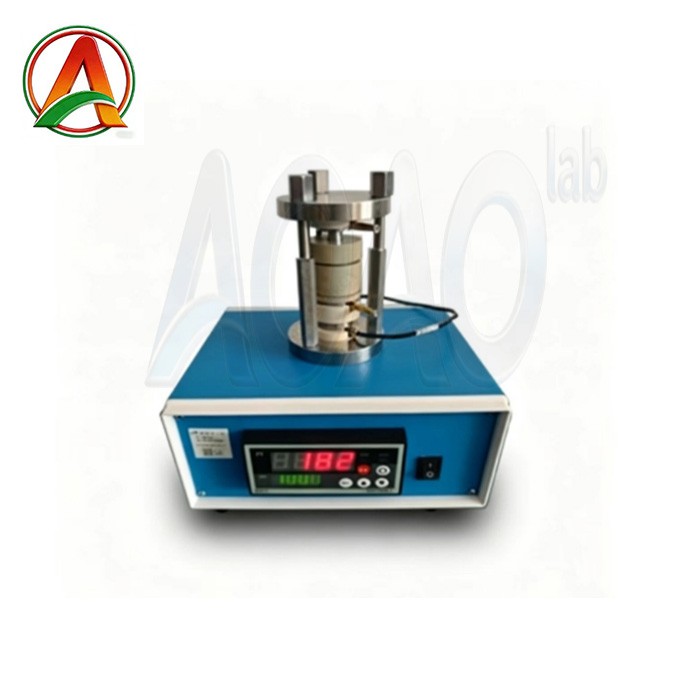

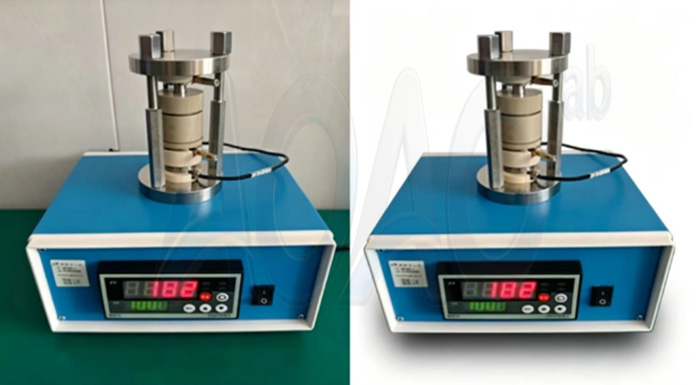

Ⅱ. AOAO-YCGTXS-10 Solid State Battery Split Cell Test Kit with Pressure Sensor

(1) Optional inner diameters: 10, 12, 13, 16 (mm), for other sizes, please contact us for customization.

(2) Optional pressure sensor with 5-ton or 2-ton load cell capacity.

(3) For 10 mm inner diameter, optional PEEK or zirconia ceramic sleeves. Sleeves are interchangeable.

(4) Fixture outer diameter: 70 mm. Height from base to the top of the three-column assembly: 123 mm.

Model: AOAO-YCGTXS-10
Optional Sleeve 1	10mm, PEEK Sleeve
Optional Sleeve 2	10mm, Zirconia Ceramics Sleeve
Optional Sleeve 3	16mm, PEEK Sleeve
Optional pressure sensor 1	Display＋5 ton pressure sensor（without test device）
Optional pressure sensor 2	Display＋2 ton pressure sensor（without test device）

AOAO Solid State Battery Split Cell Test Kit.jpg

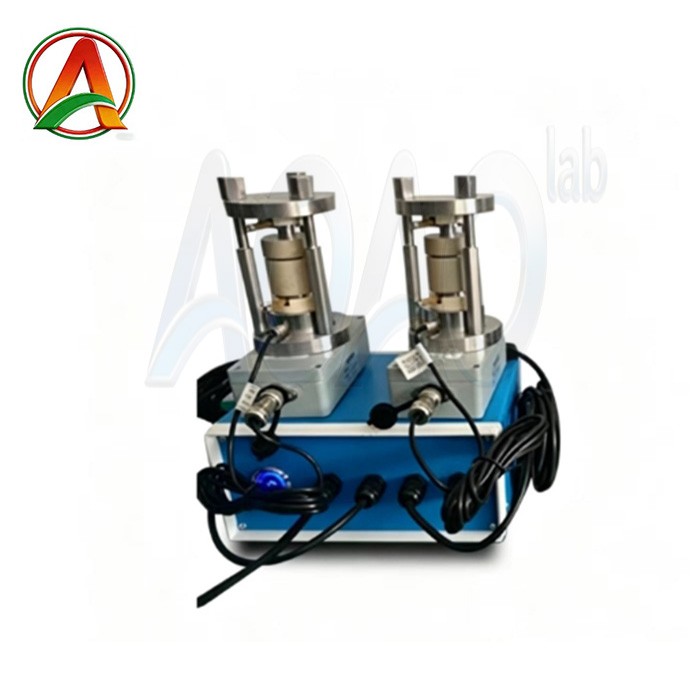

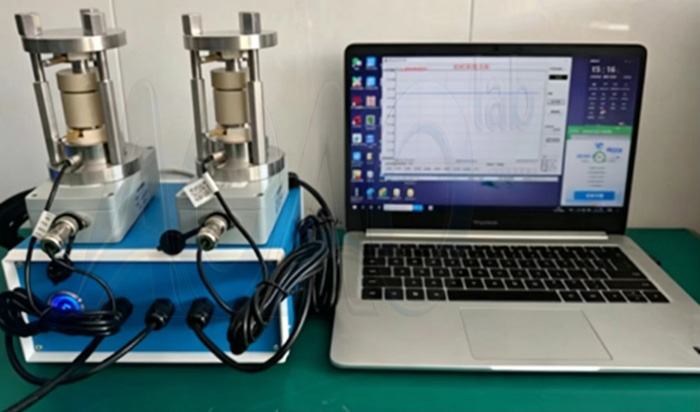

Ⅲ. AOAO-YCGTQX-10 Solid State Battery Split Cell Test Kit with Pressure Curve Analysis

(1) Optional inner diameters: 10, 12, 13, 16 (mm), for other sizes, please contact us for customization.

(2) Optional pressure sensor with 5-ton or 2-ton load cell capacity.

(3) For 10 mm inner diameter, optional PEEK or zirconia ceramic sleeves. Sleeves are interchangeable.

(4) Fixture outer diameter: 70 mm. Height from base to the top of the three-column assembly: 123 mm.

(5) one computer can connect to 10 testing devices.

Model: AOAO-YCGTQX-10
Optional Sleeve 1	10mm, PEEK Sleeve
Optional Sleeve 2	10mm, Zirconia Ceramics Sleeve
Optional Sleeve 3	16mm, PEEK Sleeve
Optional pressure sensor 1	Software analysis, converter, 5 tons sensor (without test device). Discount for the 2nd to 10th set.
Optional pressure sensor 2	Software analysis, converter, 2 tons sensor (without test device). Discount for the 2nd to 10th set.

AOAO Solid State Battery Split Cell Test Kit.jpg

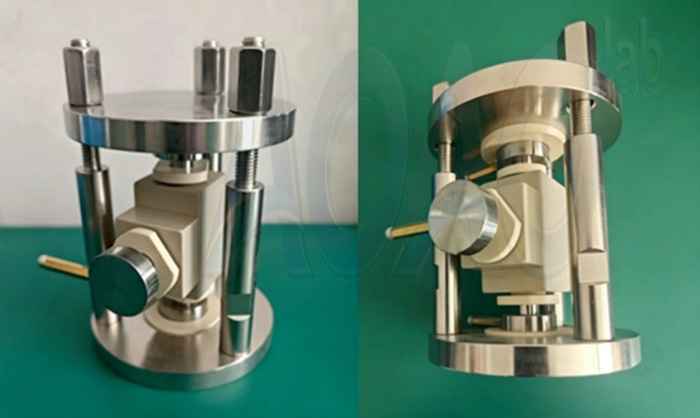

Ⅳ. AOAO-YCGT-10-3 Three-electrode Solid State Battery Split Cell Test Kit

(1) Inner diameter: 10 mm.

(2) Fixture outer diameter: 90 mm. Height from base to the top of the three-column assembly: 133 mm.

AOAO Solid State Battery Split Cell Test Kit.jpg

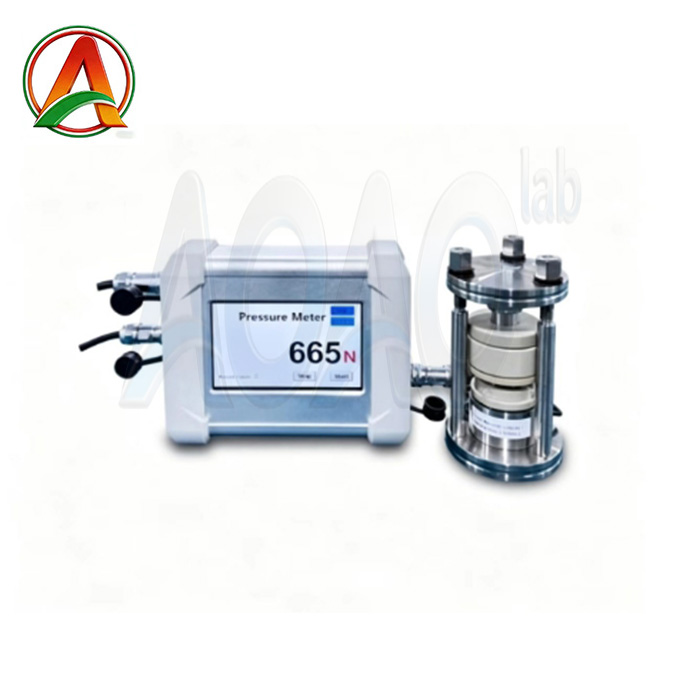

PREVIOUS：Solid State Battery Manometer NEXT：AOAO Solid-State Battery CT Testing Device
