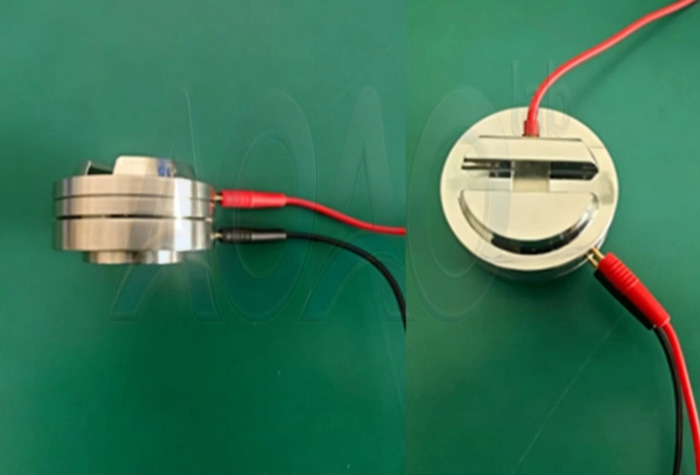

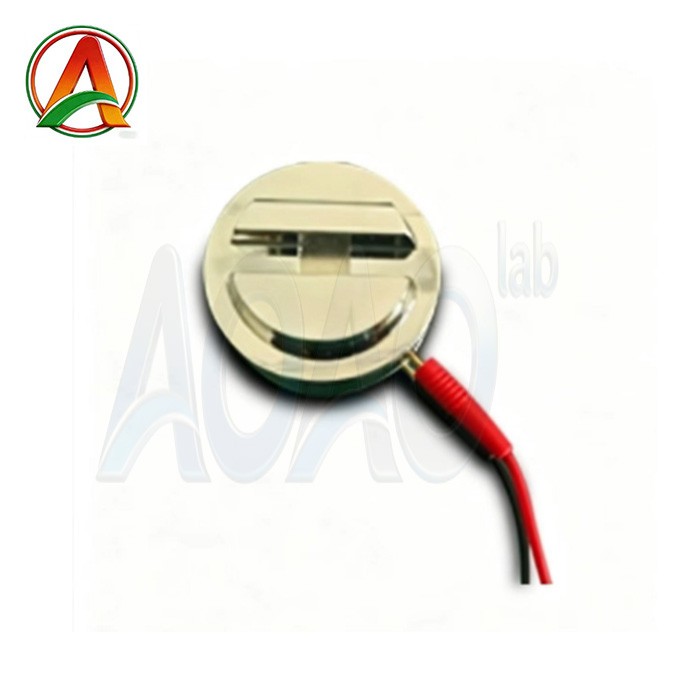

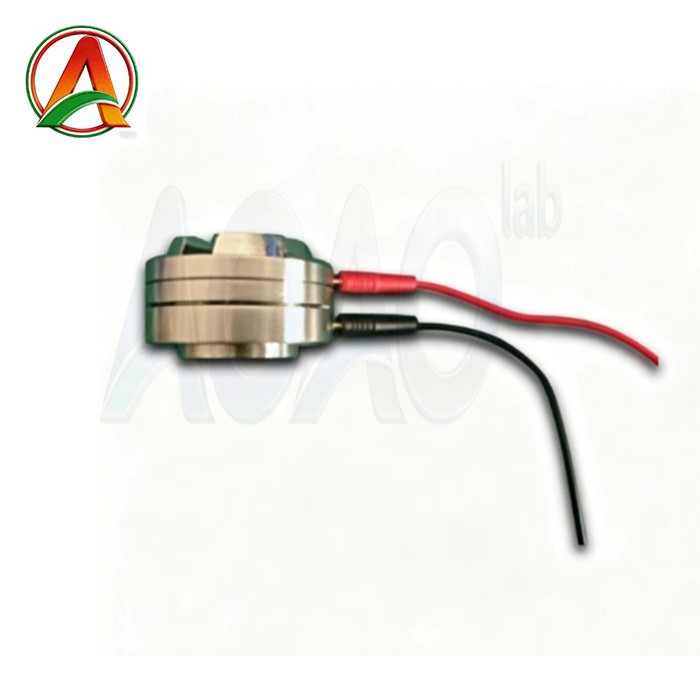

Solid-State Batteries XRD Analyzer

Solid-State Batteries XRD Analyzer

Specifications

AOAO-YCGTXRD-16 Solid-state battery XRD analyzer: Cutting-edge crystal structure detection with rapid, non-destructive analysis for accelerated battery innovation.

(1) Compatible with batteries: inner diameter 16 mm, thickness 0–6 mm.

(2) Fixture diameter: 50 mm. Height from base to middle optical slot: 24 mm; total height: 30 mm.

(3) Requires separate mold pressing for 16 Electrolyte sheets.

(4) Custom base configurations available upon request(provide test bench photos of the equipment model for dimension measurement).

Alternative: Customers may purchase a lifting platform and adjust to the required testing height.
