200*200mm Size Hot Press Machine For Battery Cells
This AOAO-RY200 hot press machine is a 200*200mm size hot press machine for battery cells
Brand:AOAO NEW ENERGY
item no.:AOAO-RY200
order(moq):1set
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN
200*200mm Size Hot Press Machine For Battery Cells
SPECIFICATIONS
AOAO-RY200 Hot press machine is mainly used for battery cells hot press shaping after winding process, easy for battery core into the pouch or shell.
Using the hot press shaping machine after battery winding on the template by pressure and heat to reduce batteries thickness with finalize design, reducing the battery core short circuit rate and ensure the consistency of the thickness of the finished batteries.
Model | Hot Press Machine AOAO-RY200 |
Source voltage | AC 220V/110V, 50/50HZ |
Power | 2000W |
Warranty | One year limited warranty with lifetime support |
Structure | The LCD display shows Temperature Using light curtain protection device, guarantee security With abnormal temperature alarm function Hot-pressing time, temperature, pressure can be adjusted Use automatic and semi-automatic control, easy to operate |
Air source | 0.5-0.8MPa |
Hot press area | 200*200mm |
Heating TEM | RT-250℃, adjustable |
TEM accuracy | ±2℃ |
Pressure | 1T adjustable |
Dimension(L*W*H) | 350*320*550mm |
Weight | About 90kg |

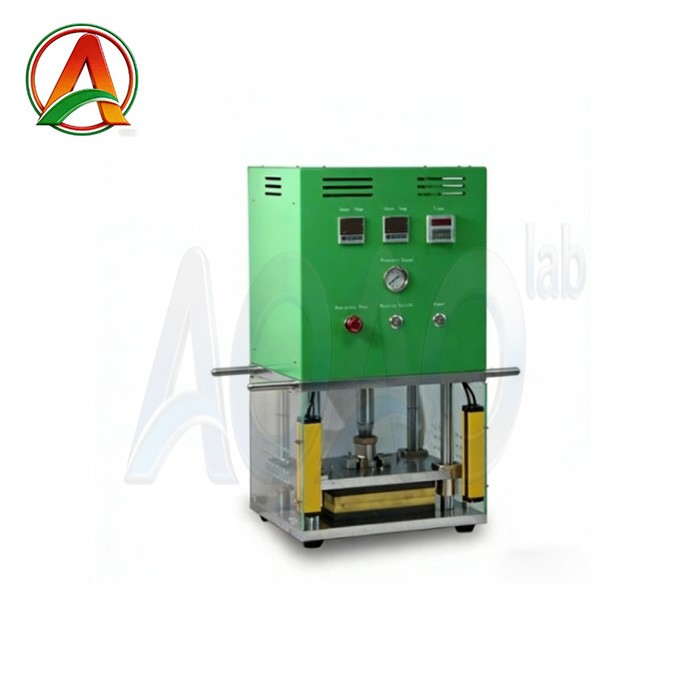

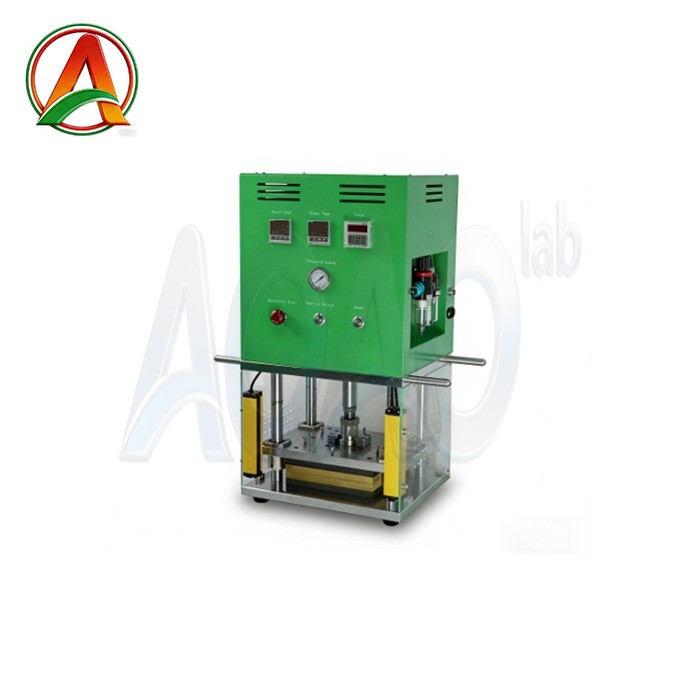

PRODUCT DISPLAY
PACKAGE AND SHIPPING
1 Standard exported package : Internal anticollision protection, external export wooden box package 2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode 3 Responsible for the damage during shipping process, change the damage part for free 4 Supply with suitable voltage input and power plug according to customer's country requirements. |
SERVICES
1 We supply machines with battery technology support. 2 We can also supply a full set of materials for Lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery. 3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line. 4 We can also supply a full set of battery technology for battery design, research and producing. |
