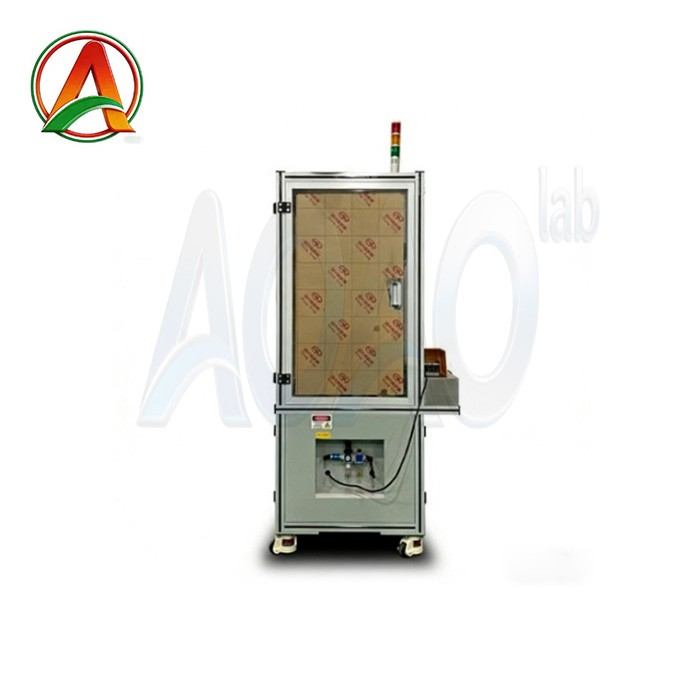

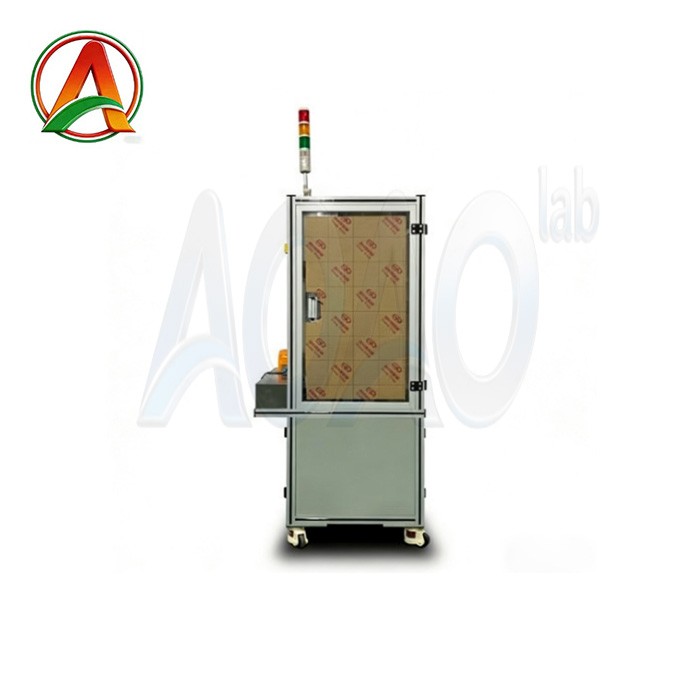

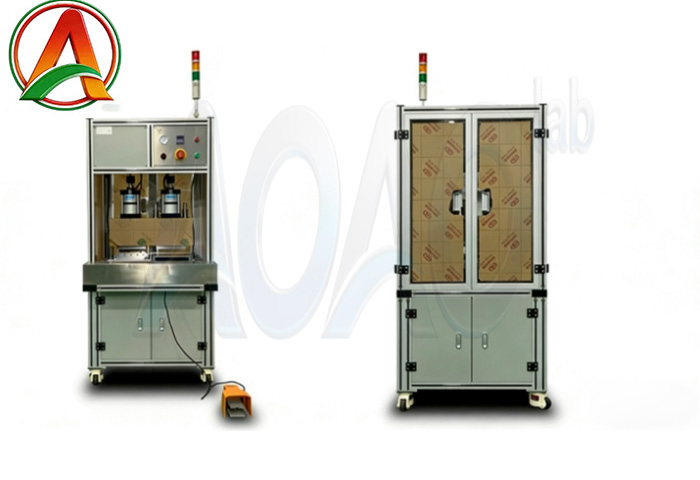

Battery Tab Trimming and Flatten Machine After Welding

Battery Tab Trimming and Flatten Machine After Welding

AOAO-JEQY is special design for cutting and shaping press of stacking cells after tab welding

Brand:AOAO
item no.:AOAO-JEQY20
order(moq):1set
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

Battery Tab Trimming and Flatten Machine After Welding

SPECIFICATIONS

AOAO-JEQY is special design for cutting and shaping press of stacking cells after tab welding.

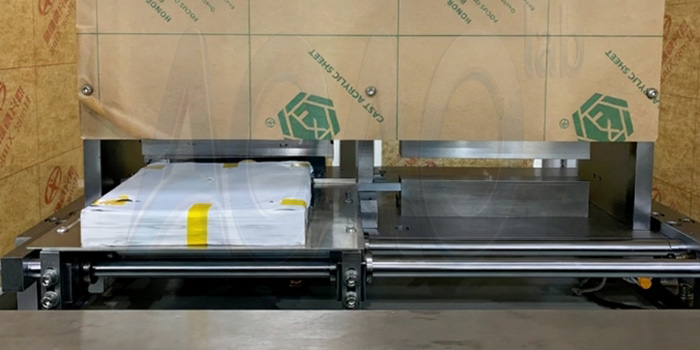

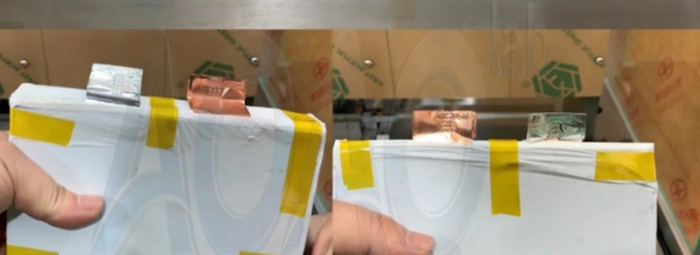

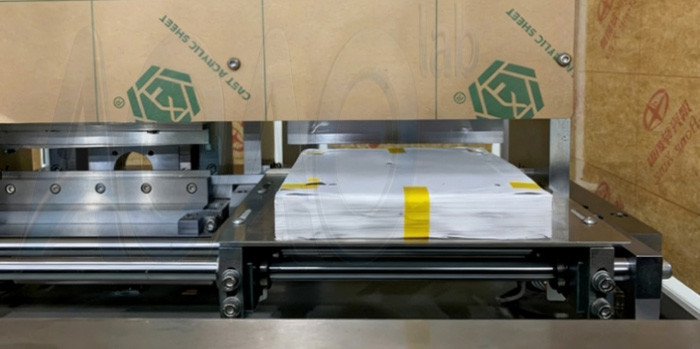

After placing the tab weld cell in place, step on the foot switch, the cylinder drives the upper pressure block and the knife to move downwards to cut off the excess stacking material and tabs, and then move the station to press the remaining tabs to flatten.

Model	AOAO-JEQY20
Compressed air	0.5-0.8 MPa
Cutting pressure	≤1000Kgf
Cutting strock	15mm
Cutter length	200mm
Press pressure	≤1000Kgf
Working speed	300-500 times/hour, accoridng to real process parameter
Equipment weight	About 140kg
Appearance Colour	According to customer requirement, customer provide colour plate
Voltage	AC220V±10%，50Hz/60Hz
Power	100W
Suitable battery width	<225mm( this is standard machine, will custom accoridng to customer’s real battery dimention)
Process performance	1. Manual feeding and unloading; 2. Manual conversion between cutting and flattening; 3. Manual or foot control action; 4. With automatic counting function; 5. There are safety protection door panels around.
