Semi-automatic Electrolyte Filling Machine for Prismatic Cell

Semi-automatic Electrolyte Filling Machine for Prismatic Cell

SPECIFICATIONS

AOAO-BZDP-2ZZG is used for precise quantitative Electrolyte filling of prismatic cell. It has high injection efficiency, simple operation and good stability. It is an important equipment for advancedelectrolyte fillingprocess of prismatic cellproduction.

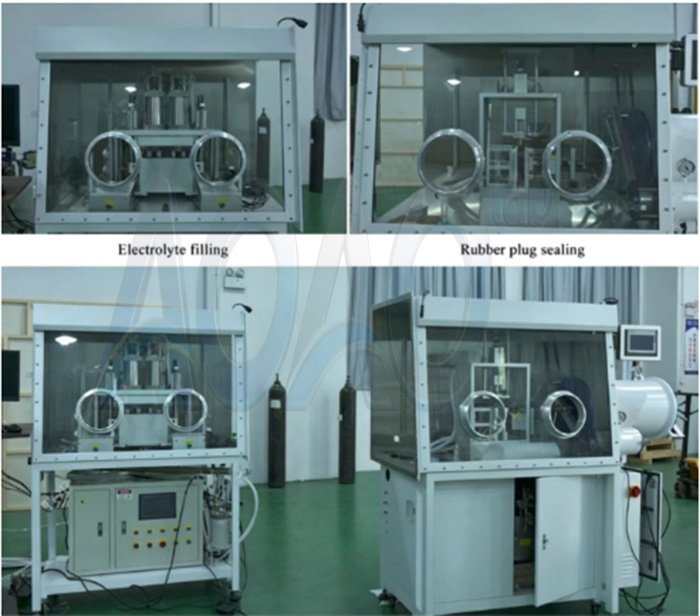

This is a 2-station electrolyte filling machine. It is small in size and can be operated in a glove box.

Working principle:

This machine consists of one set of jig, can be installed and disassembled 2PCS products at a time) adopts the absorption mode of vacuum fist and then liquid injection, manual loading and unloading, (optional manual weighing and scanning code), one person operation mode.

Structure consists of:

1. weighing and scanning code device (electronic scale, scanning gun).

2. battery fixture.

3. Liquid injection mechanism.

4. data storage system, and mechanical transmission and numerical control system. Fast, efficient and accurate injection.

Work flow:

Vacuuming/ charge Nitrogen gas/standing( vacuum strength, vacuum holding time, standing time, cycle times, all can be set)

Manual weighing and scanning code (before filling) → manual clamp battery → Fixture automatic positioning and clamping → automatic vacuum pumping and liquid injection → nitrogen filling/standing/vacuum breathing circulation filling → manual discharge clamping, code scanning and weighing (after filling) (according to the sequence of code scanning and weighing before filling) → end of work (cycle work).

Product Display
