SPECIFICATIONS

1. Equipment introduction:

1.1 This machine is mainly used for precise and quantitative liquid injection of Prismatic power battery, with high liquid injection efficiency, simple operation and good stability. It is an important equipment for advanced liquid injection process in the production of prismatic power battery.

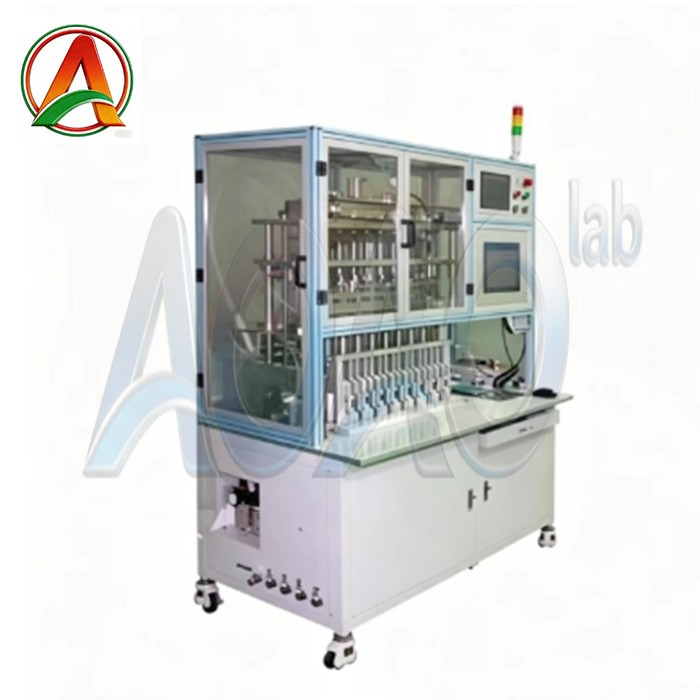

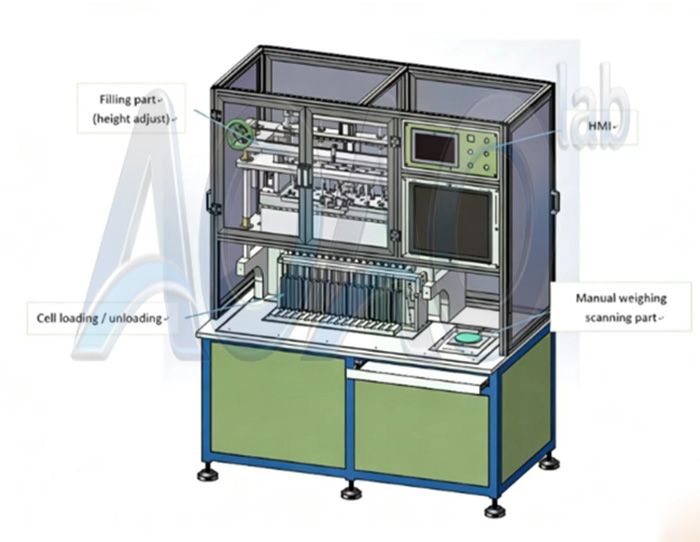

1.2 Working principle: The machine construction is with battery fixture, Liquid injection mechanism, operating system, mechanical transmission and other components.
It adopts the absorption mode of vacuumizing first and then injecting liquid, manual loading and unloading, single person operation.

2. Workflow:

Vacuum/N2/Standing(vacuum, pressure maintaining time, standing time, and cycle times all can be set)

Manual loading→ fixture auto fix cell → auto vacuum and filling → N2/standing cycle →manual unloading→ Finish

3. Equipment Configuration: (We reserve the right to change the electrical brand without prior notice)
   A  PLC：Panasonic，
   B  HMI：MCGS
   C  Main pneumatic element: AIRTAC
   D  Sensor：SUNX
   E  Vacuum meter：Panasonic
   F  Filling pump：AOAO
   G  The main core components are made of stainless steel 316 or related anti-corrosion process。
   H Mechanical operation area is equipped with protective door and series emergency stop

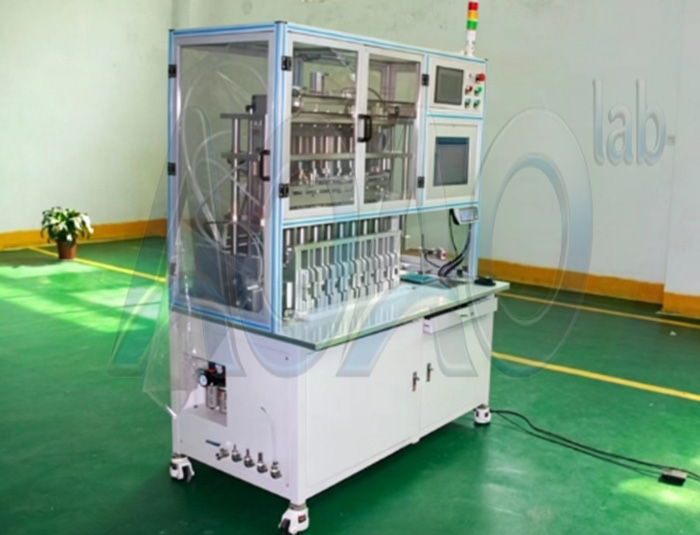

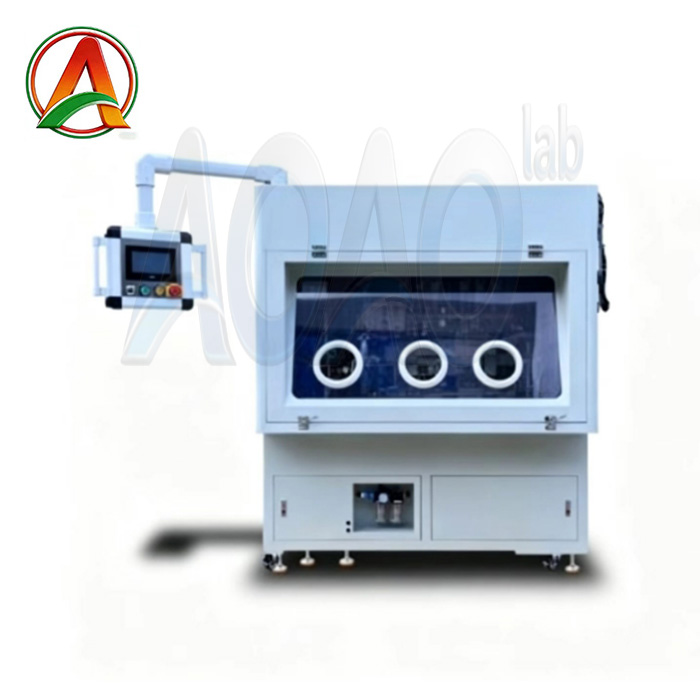

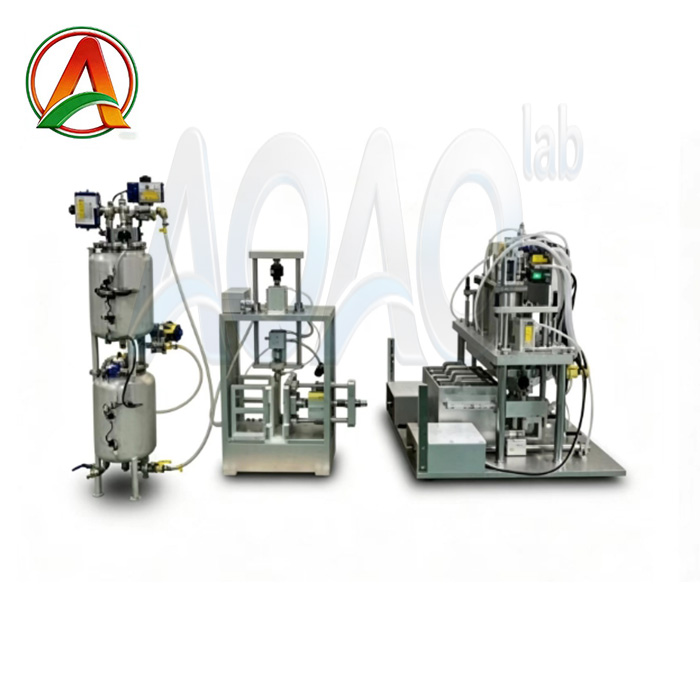

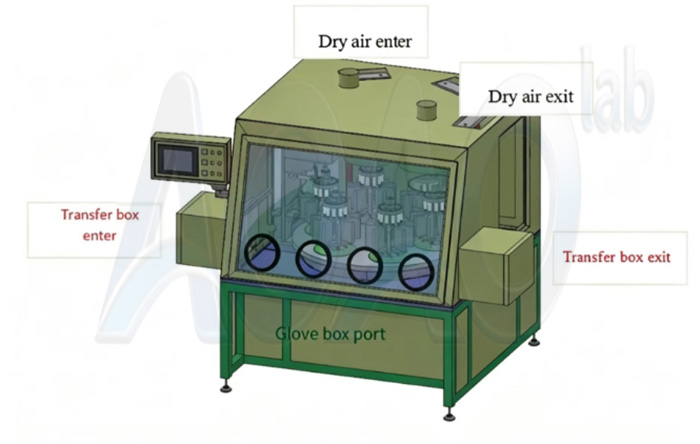

This model standard design is work in the dry room without glove box, if you still need glove box, we will add the glove box similar below design.

You need to prepare the dry air and dehumidifier by yourself.
