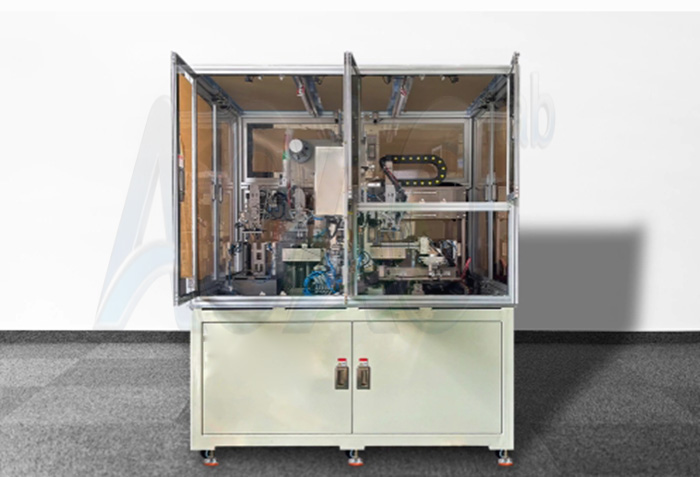

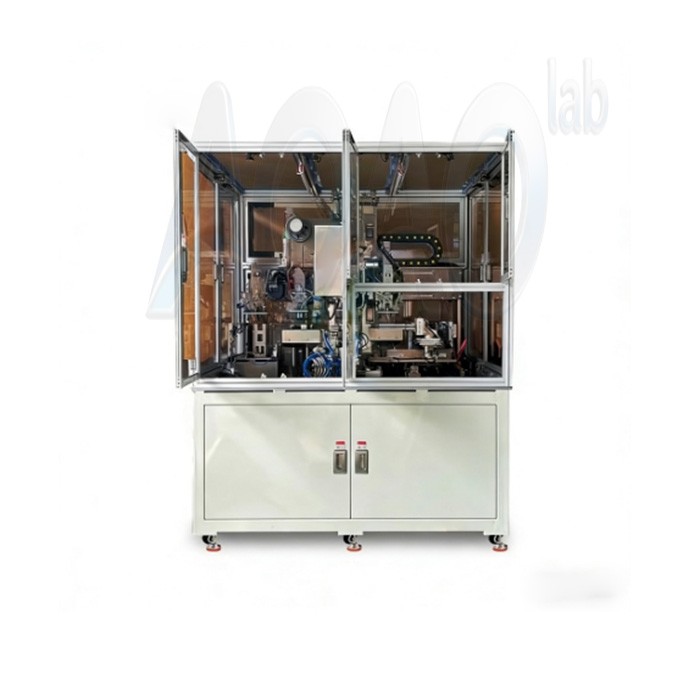

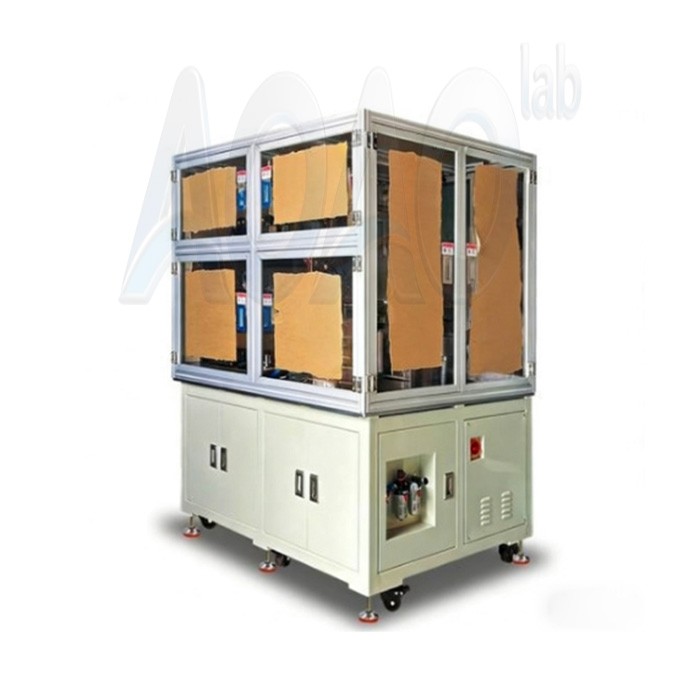

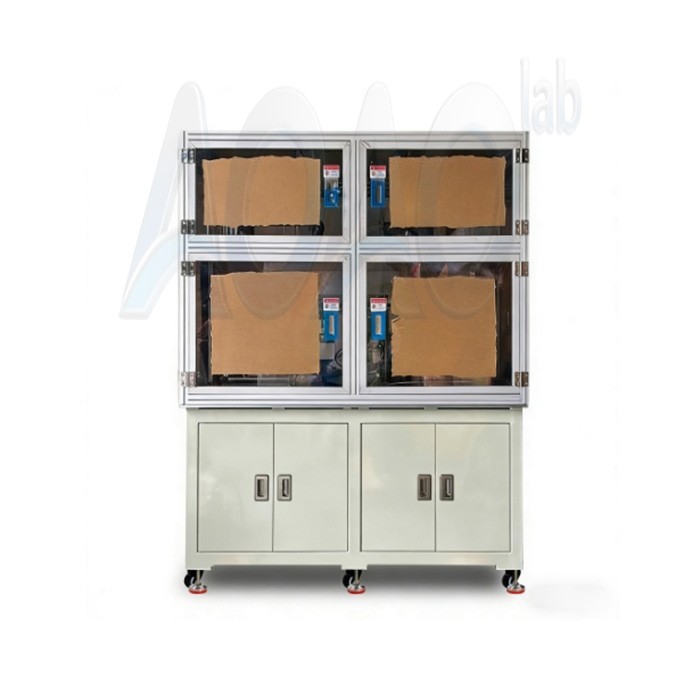

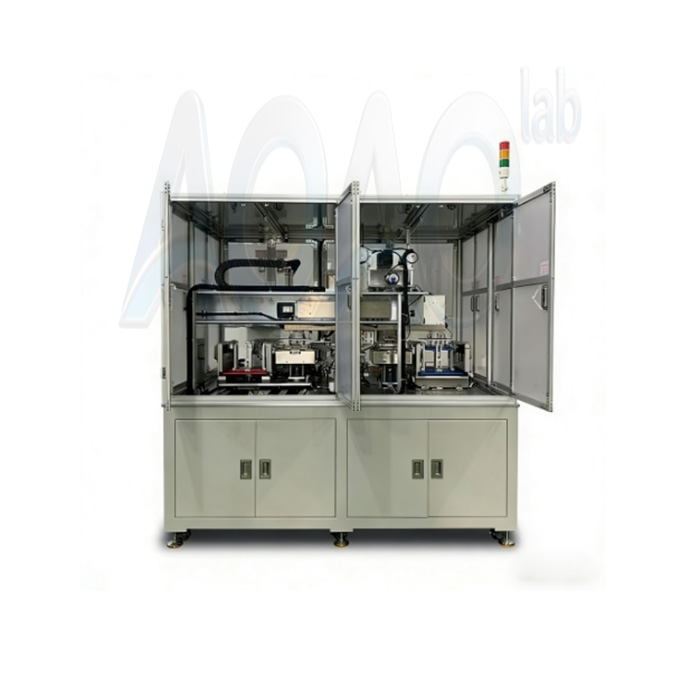

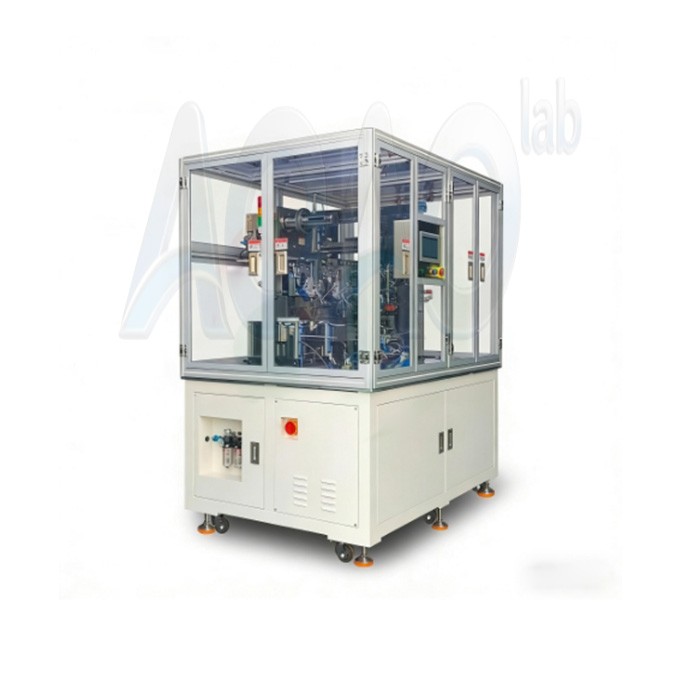

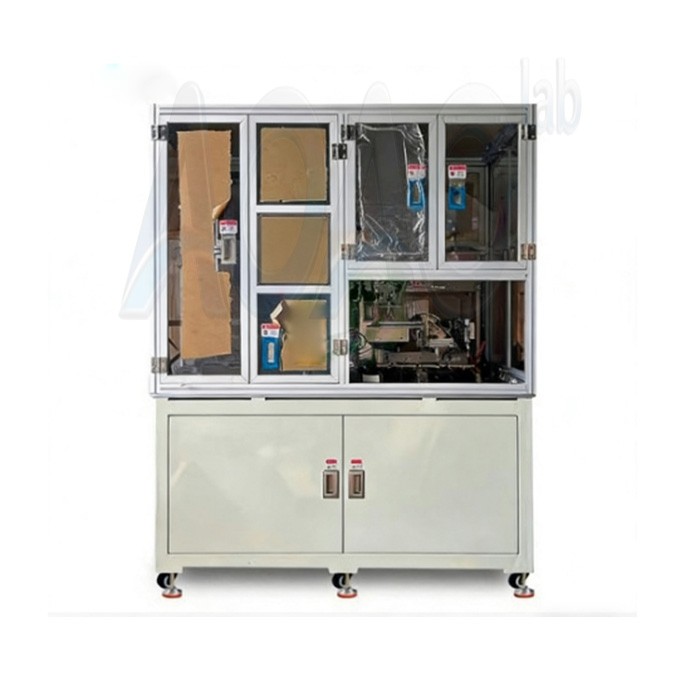

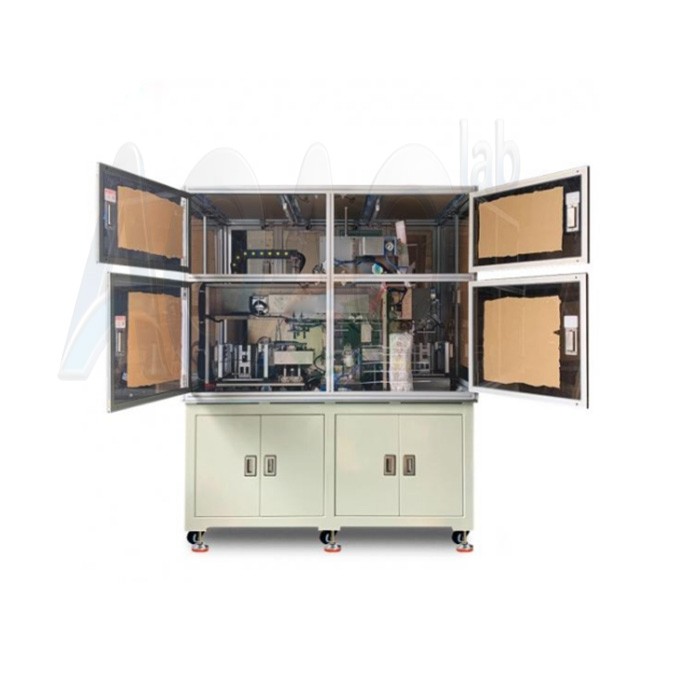

Semi-automatic Battery Stacking Machine for Battery Electrode Z-fold Assemble

Semi-automatic Battery Stacking Machine for Battery Electrode Z-fold Assemble

This machine is designed for large square lithium ion power battery stack design and development, use Z shaped stacked chip

Brand:AOAO NEW ENERGY
item no.:AOAO-S-DP150
order(moq):1set
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN
Lead Time:30days

Semi-automatic Battery Stacking Machine for Battery Electrode Z-fold Assemble

SPECIFICATIONS

AOAO-S-DP-150 (contact us for more other models)

The battery stacking machine is a high-accuracy Semi-auto stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. It adopts "Z" glyph laminated.

Advanced Features:

1 PLC Touch Screen Control with easy condition setting

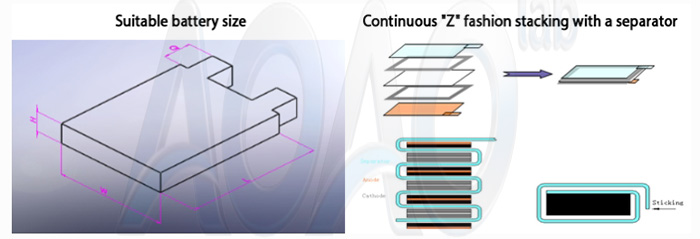

2 Continuous "Z" fashion stacking with a separator

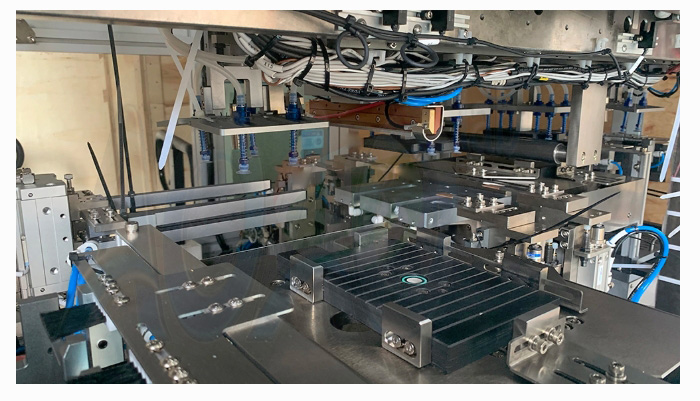

3 Auto electrode pick-up & stacking via vacuum suction manipulator

4 Through four manipulator to remove electrode from material box placed second para platform, after calibration then place on lamination platform, laminated with automatic clamping device on stage.

5 Unreeling rotors for separator film feeding

6 Auto-tension control for separator film delivery

Model	Semi-auto stacking machine AOAO-S-DP-150
Suitable battery size	Thickness H (mm)	5-20
	Width W (mm)	30-90
	Length L (mm)	80-150
	Tab length Q (mm)	Q≤20
	Tab width (mm)	≤20
Technology parameter	Stacking speed	1.3-1.5s/pcs
	Registration accuracy	±0.5mm
	Stacking quantity	Can be set
	Percent of pass	≥98%
	Power	4kw
	Weight	800kg
	Dimension (LWH)	125011501850mm
Materials size	Electrode	Length : 80-150mm Width : 30-90mm Thickness : 0.07-0.25mm
	Tab	Length :≤20mm Width : 8-20mm
	Separator	Length : in roll Width : 90-150mm Thickness : 0.02-0.04mm Inner diameter :φ76.2mm Max out diameter :φ300
