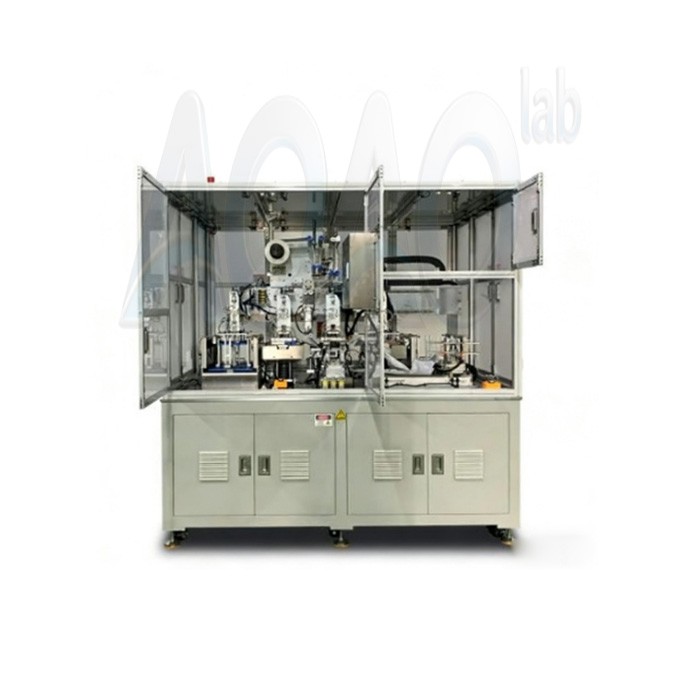

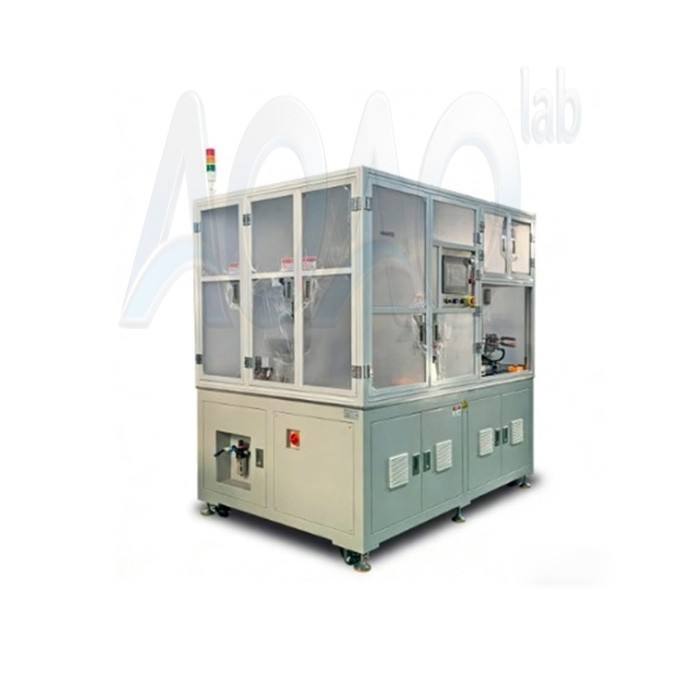

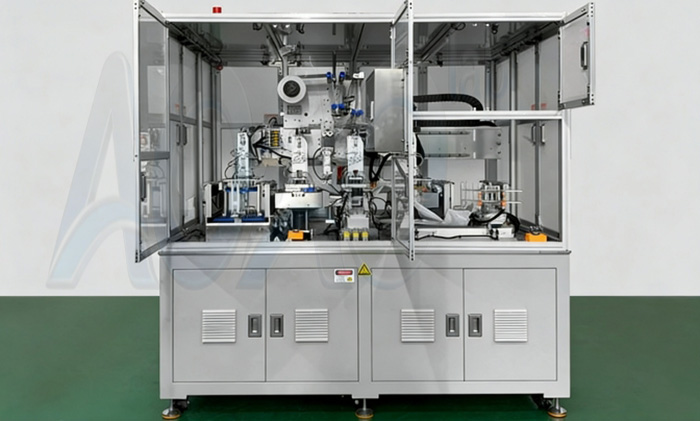

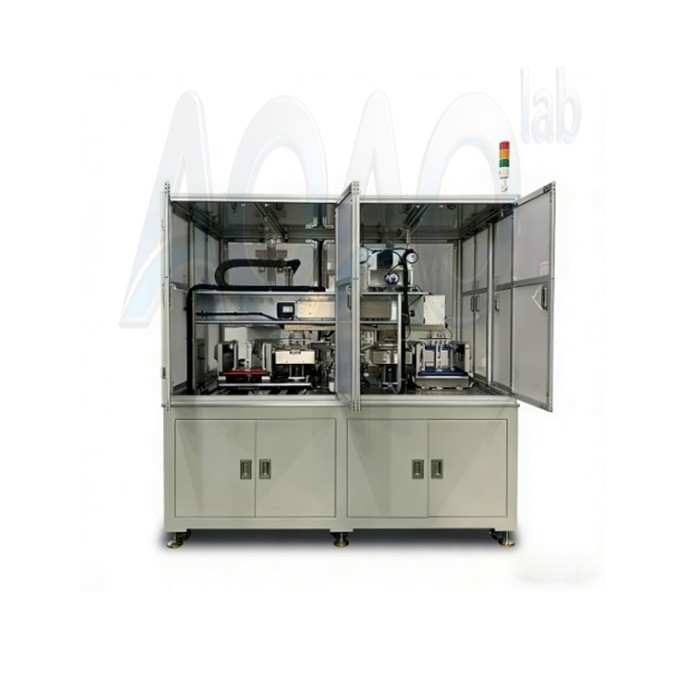

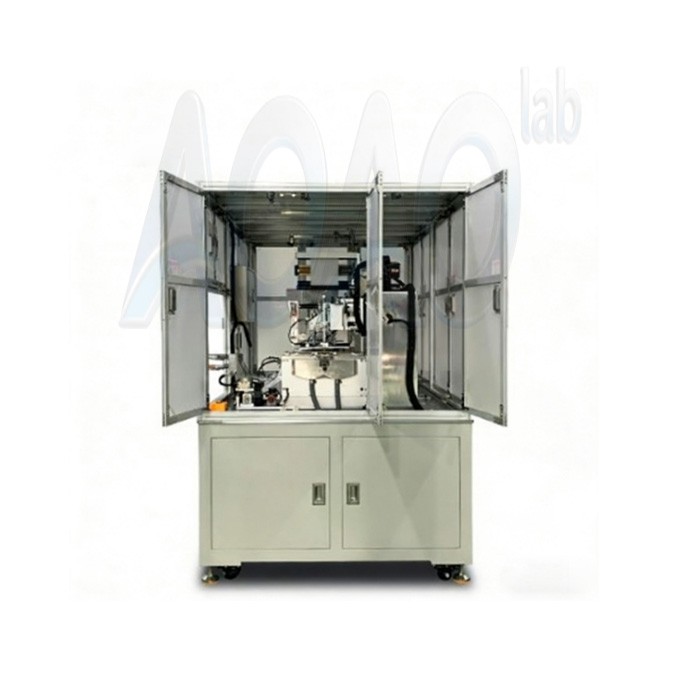

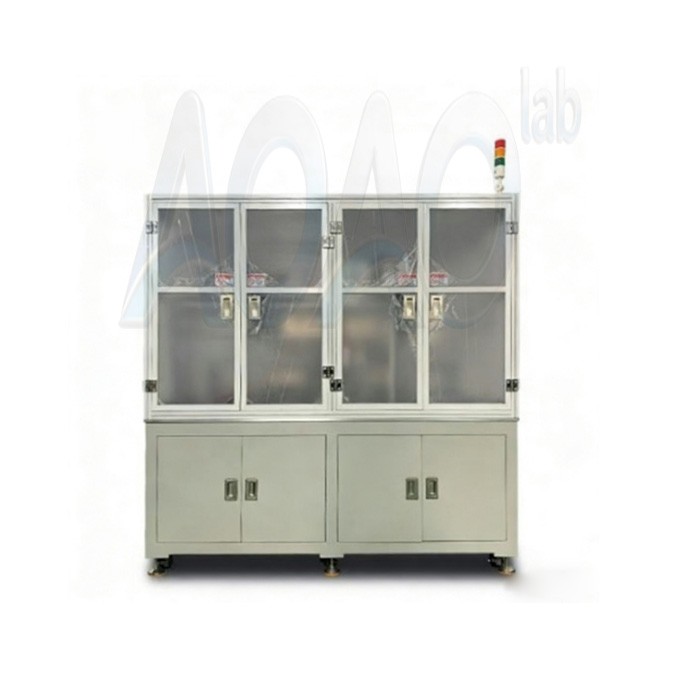

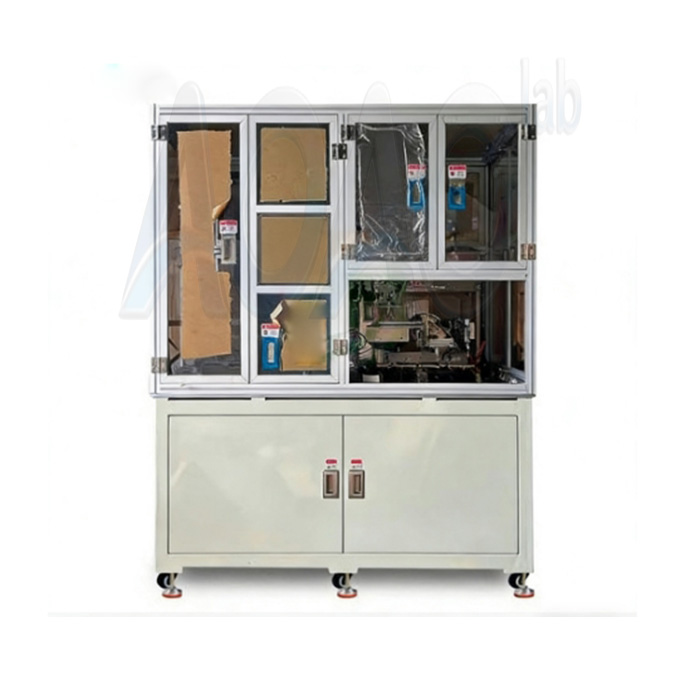

Semi-automatic Battery Electrode Stacking Machine

Semi-automatic Battery Electrode Stacking Machine

This AOAO-S-DP300 battery electrode stacking machine is used for lithium power battery stacking process, it dopts Z stacking

Brand:AOAO NEW ENERGY
item no.:AOAO-S-DP300
order(moq):1set
Payment:L/C, T/T
product origin:China
shipping port:XIAMEN

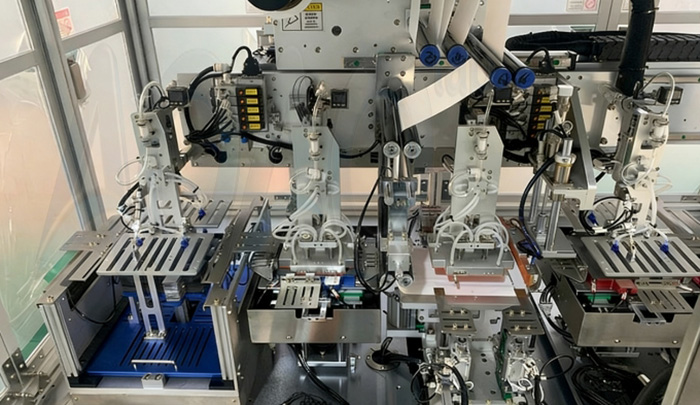

Semi-automatic Battery Electrode Stacking Machine

SPECIFICATIONS

Summary of the equipment

This battery stacking machine is used for lithium power battery stacking process, it dopts Z stacking. The separator discharge by motor, through tension, correct, to stacking plate; The Manipulator mechanism reciprocating movement left and right, through chuck institutions to take the electrode from materials box, after secondary locating platform to put the electrode on the stacking plate. At the same time, the separator is driven to move left and right; there are four sets of pressing knife mechanisms on the lamination table to press the electrodes crosswise; after the lamination is completed, the separator is cut off, take out the cell from transfer structure and then tape by manual, take the cell by manual; at the same time start the automatic stacking of the next cell.

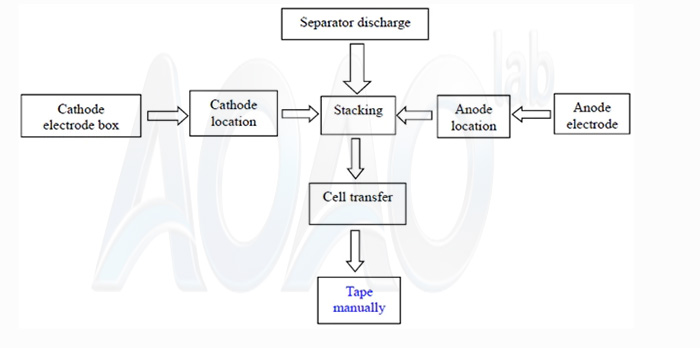

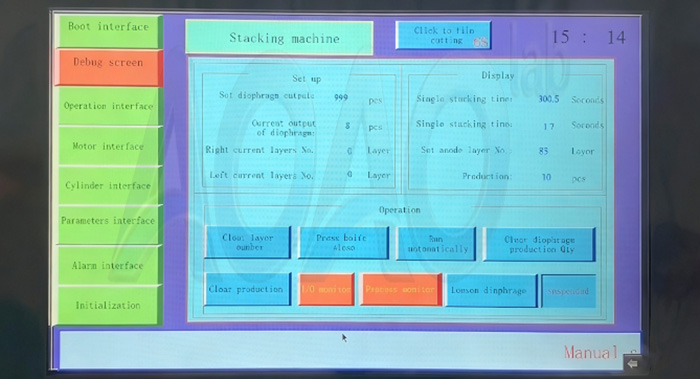

Work process

Features

1. Presser buffer mechanism: before presser exit, micro lift away from the electrode to prevent pulling the electrode.

2. Separator auto unwinding, tension control, deviation correction, effectively ensure the precision of separator alignment.

3. Through the precise positioning of the electrode, the position accuracy of the electrode during stacking can be guaranteed effectively.

4. A variety of measures to effectively control the phenomenon of material leakage: material box blowing mechanism, sorting brush, external sucker manipulator shake.

5. The material box and the secondary positioning are equipped with effective dust collection mechanism.

Material Specifications

M/S	Material	Length (mm)	Width (mm)	Thickness (mm)	Inner diameter (mm)	Outside diameter (mm)
Electrode	sheet	150-300	80～150	0.07～0.25	----	----
Tab	----	8～20	8～80	----	----	----
Separator	roll	----	150-300	0.02～0.04	φ76.2	φ300

Note:

1. The length of the electrode indicates the size of the electrode in the direction of the tab, excluding the length of the tab.

2. The electrode has no obvious powder drop phenomenon and no obvious wave edge; the die-cutting error is less than 0.2mm.

3. There is no obvious warpage and deformation in the incoming electrode, and there is no obvious adhesion in the incoming electrode.

4. Separator serpentine bending error: 1mm/1000mm.

Technology Parameters

Item	Parameter
Stacking speed	1.3～1.6s/pcs
Auxiliary time	15～20s
Registration accuracy for electrode and separator	Center deviation ±0.4mm
End face alignment accuracy of separator	±0.3mm
Alignment accuracy of adjacent electrode	±0.2mm
Overall alignment accuracy of the electrode	±0.3mm
Stacking layers	Can be set
Outer cladding separator	Machine empty stack reserved separator, manual tail winding, manual tape
Product qualification rate	99% (defects caused by this machine only)
Utilization rate	98% (faults caused by this machine only)
Power	2kw

Working environment requirements

Item	Spec
Dimension	W1600 x L1300 x H1850mm for reference
Weight	About 1000Kg；＞450Kg/M2
Color	Computer grey(If the buyer has color requirement, please provide color standard sample)
Power	AC220V Single phase；±10%
Air compressor	0.5～0.7Mpa（5～7kgf/cm²），Flow 100L/min
Temperature	5～35℃
Humidity	5～55％HR
Air/Dust	Non-salty gases, toxic and corrosive gases;There should be no conductive dust
Magnetic field and vibration	There shall be no magnetic boundary affecting the device;There should be no shock and obvious vibration
