Semi-Automatic Winding Machine For Cylinder Cell

Semi-Automatic Winding Machine For Cylinder Cell

Cylinder Cell Semi-Automatic Winding Machine For Lab Research

Brand:AOAO NEW ENERGY
Item No.:AOAO-JR135-C
Order(Moq):1set
Payment:L/C,T/T
Product Origin:China
Shipping Port:XIAMEN

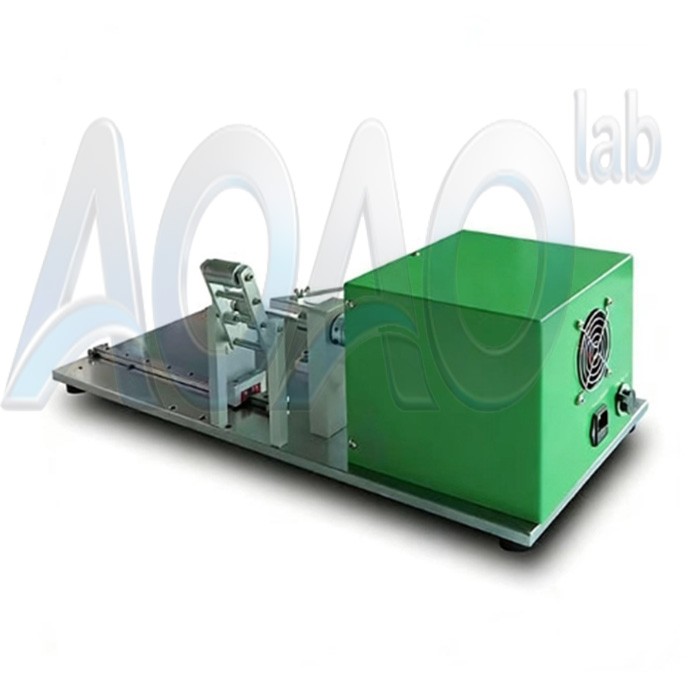

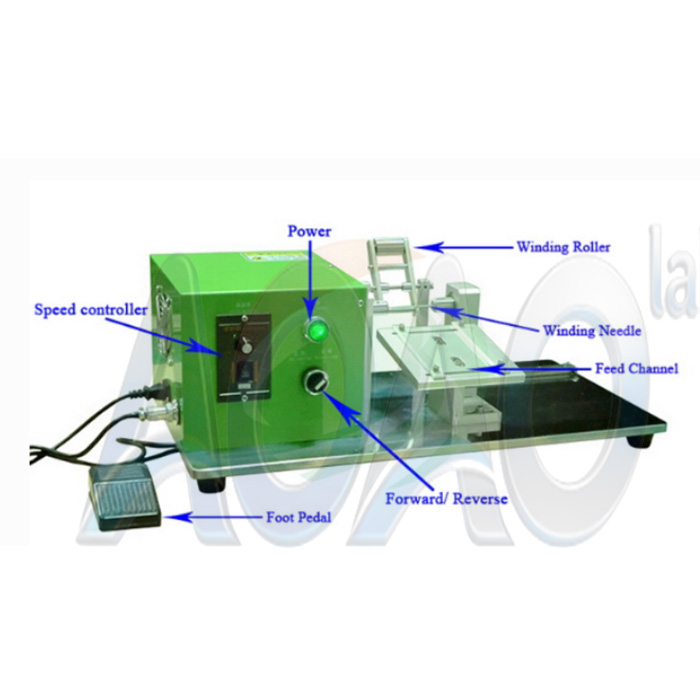

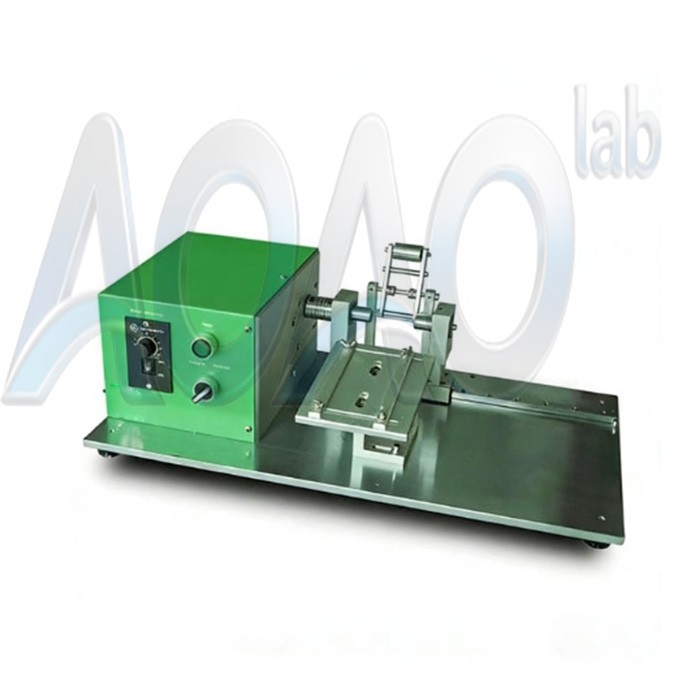

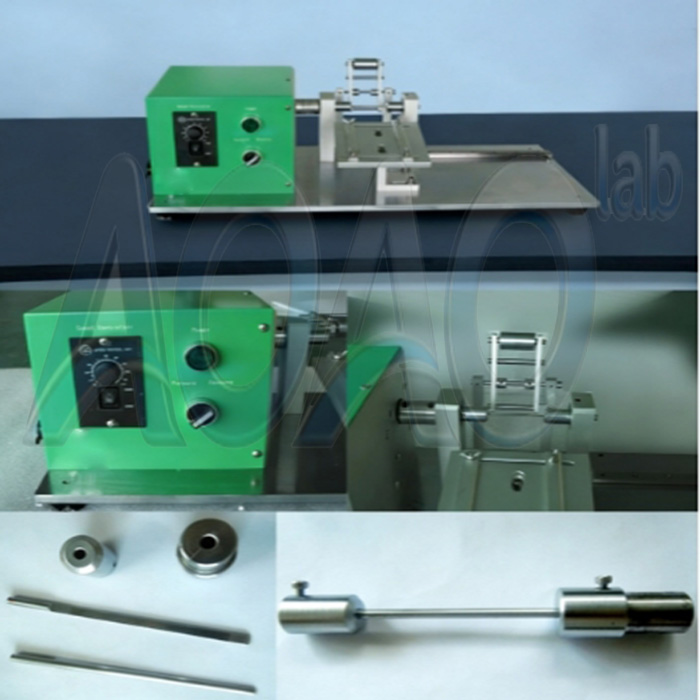

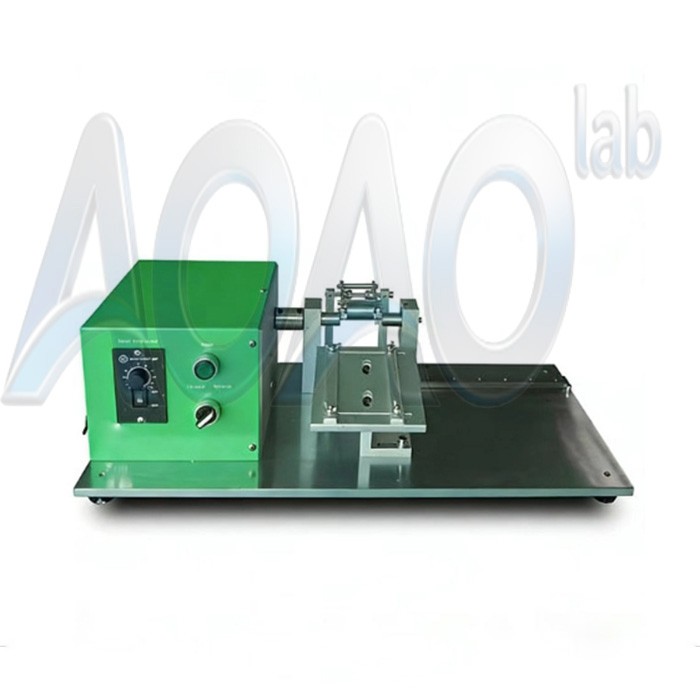

Semi-Automatic Winding Machine For Cylinder Cell

SPECIFICATIONS

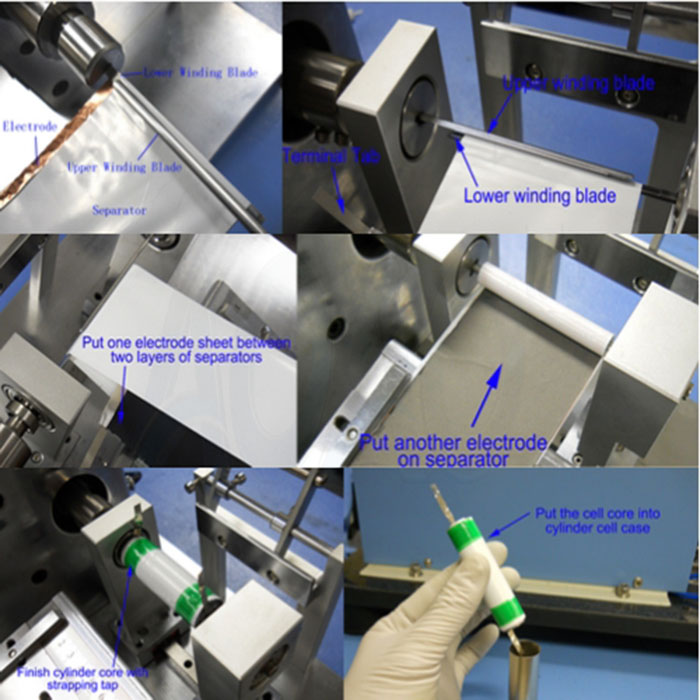

AOAO-JR135-Cylinder semi-automatic winder machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.

Model	Semi-Automatic Winding Machine AOAO-JR135-C
Working Voltage	AC110V/220V, 50/60HZ
Power	40W
Warranty	·One Year limited warranty with lifetime support
Winding Speed	0 - 170 RPM Adjustable

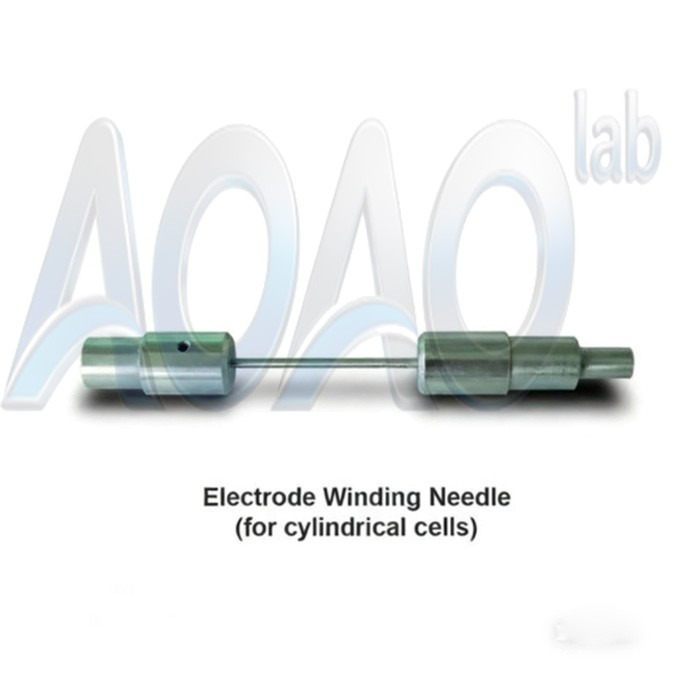

Winding Shaft	Dimensions: 4mm(OD) x 65mm(L) for 18650 cylinder battery core Other sizes like 26650 and 32650 are available upon request
Winding Mode	Switchable between clockwise and counterclockwise
Output	70-100EA/h, according to battery size and maunal
Product Dimensions *(LWH)*	*360310280mm*
Net weight	About 20kg (45 lbs)
Application Notes	This machine can be used for cylinder battery with round winding shaft, and you can also choose the square winding shaft for pouch cell core winding, We will supply with the suitable winding accessories according to your battery model
