Pneumatic Cylindrical Battery Sealing Machine

Pneumatic Cylindrical Battery Sealing Machine

The AOAO-QF650 pneumatic cylindrical battery sealing machine is used for various size of cylinder cell

Brand：AOAO NEW ENERGY
Item No.:AOAO-QF650
Order(Moq):1
Payment:L/C,T/T
Product Origin:China
Shipping Port:XIAMEN

Pneumatic Cylindrical Battery Sealing Machine

The AOAO-QF650 pneumatic cylindrical battery sealing machine is used for various size of cylinder cell

SPECIFICATIONS

AOAO-QF650 pneumatic sealing machine is mainly used for cylinder cell and supercapacitor lab research, it can also be used in small batch trial production in factory.

1 Totally operated by pneumatic. Without any electricity. Very easy to use.

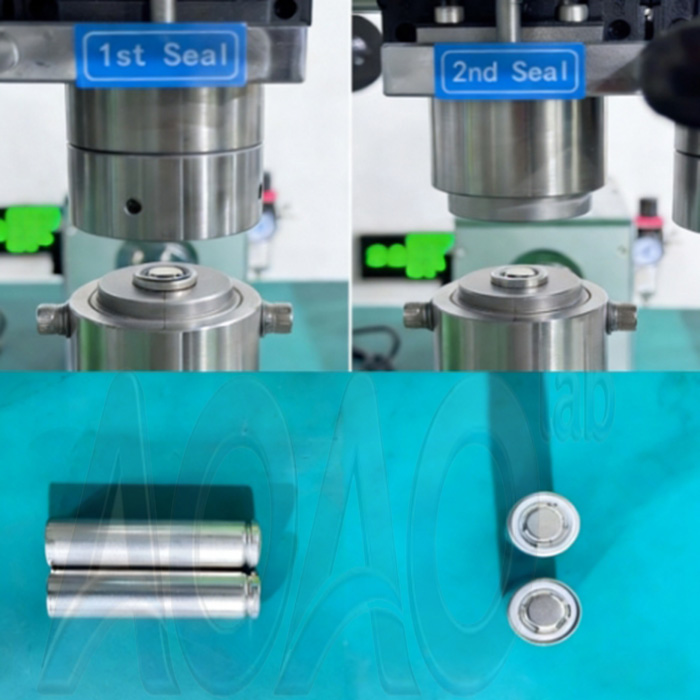

2 Two steps for sealing which make better sealing.

3 Precise design of the mold ensures accurate and reliable sealing. Solid steel structure design makes a steady and safe use.

4 Good looking appearance, Simple maintenance, Small size, easy operate and accurate molding.

5 Gas supply by compressed air or Inert gas cylinder. External connection of the compressed gas make sure the atmosphere in the glove box.

Model	AOAO-QF650 Cylindrical battery sealing machine
Warranty	One Year limited warranty with lifetime support
Gas source	0.6 ~ 0.8MPa argon, nitrogen cylinders, or compressed air (compressed air is not recommended in the glove box)
Exhaust gas design	specially designed exhaust ports, which can be externally connected through devices such as KF40
Gas consumption	480ml for single seal
Sealing pressure	manual control valve control, maximum pressure 1 MPA, recommended use pressure 0.7 MPa, accuracy ±0.5%
Sealing trip	30 mm
Sealing dies	Standard 18650 series package dies, it can be selected or matched with other specifications
Dimension	*L290mmW205mmH330mm*
Weight	35Kg
Structural material	1.With the function of preventing the short circuit of the battery seal. 2.high strength chromium steel, the surface after environmental plating and spray treatment will never rust.
