Hydraulic Battery Sealing Machine For Cylinder Cell And Coin CellHydraulic Battery Sealing Machine For Cylinder Cell And Coin Cell

Hydraulic Battery Sealing Machine For Cylinder Cell And Coin CellHydraulic Battery Sealing Machine For Cylinder Cell And Coin Cell

AOAO-CF650 is a compact hydraulic crimper for sealing all types of cylinder cases in battery R&D labs.

Brand:AOAO NEW ENERGY
Item No.:AOAO-CF650
Order(Moq):1set
Payment:L/C,T/T
Product Origin:China
Shipping Port:XIAMEN
Lead Time:7 days

Hydraulic Battery Sealing Machine For Cylinder Cell And coin cell

SPECIFICATIONS

AOAO-CF650 is a compact hydraulic crimper for sealing all types of cylinder cases in lab R&D. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the Electrolyte materials during cell assembly.

Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.

Model	AOAO-CF650
Driving Force	Manual hydraulic pressing up to 5T
Pressure Gauge	0-3500 psi (0-250 kg/cm2)
Body	Stainless Steel
Crimping Dies	Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA
Warranty	One year limited with lifetime support
Dimensions	220mm(L) x 170mm(W) x 360mm(H)
Application Notes	1 Customized die for other cylindrical cell types is available upon request. 2 It is necessary to groove the opening end of the cylindrical case by using TOB-GC650 grooving machine before sealing the cap. 3 Each type of cylinder cell can only be sealed specifically by certain model.
Net Weight	32 kg

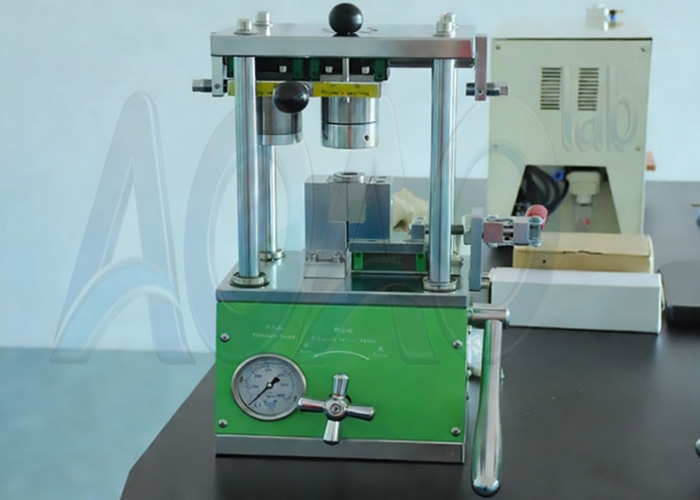

PRODUCT DISPLAY

Hydraulic Battery Sealing Machine For Cylinder Cell And <a href=https://www.aoaolab.com/Coin-Cell-Lab-Equipment.html target='_blank'>coin cell</a>.jpg
