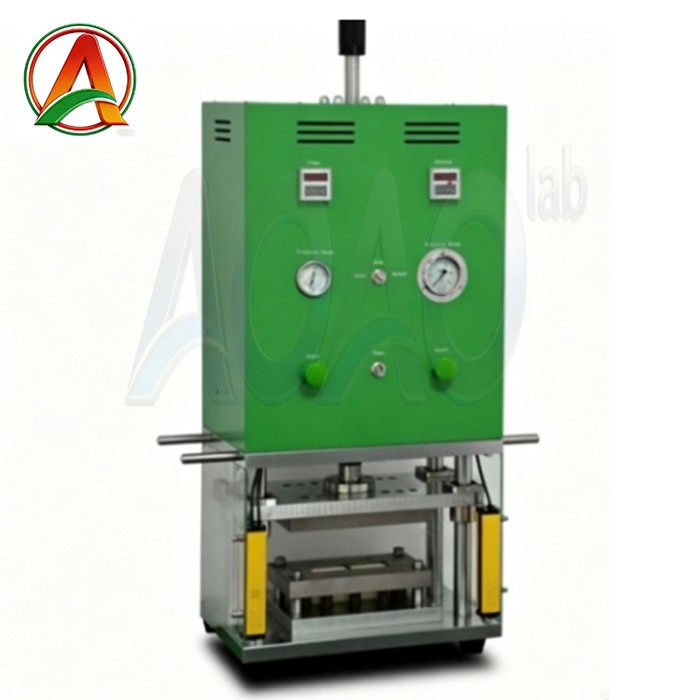

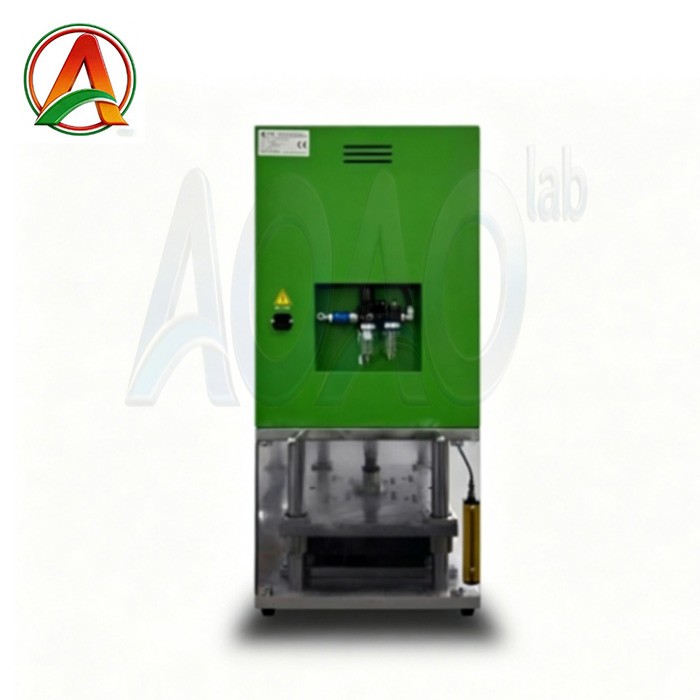

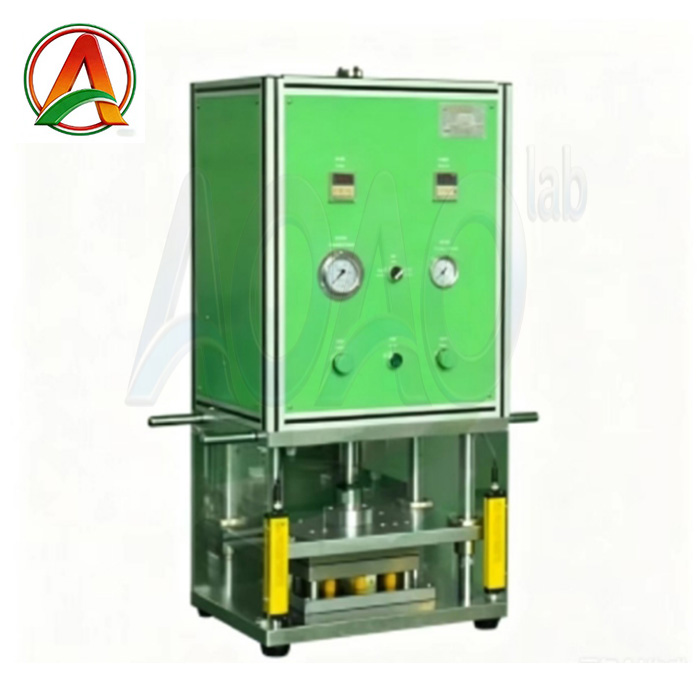

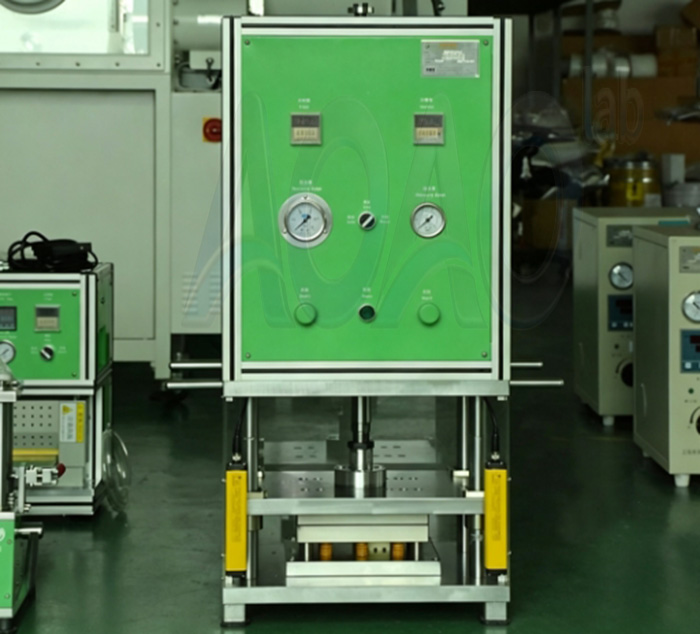

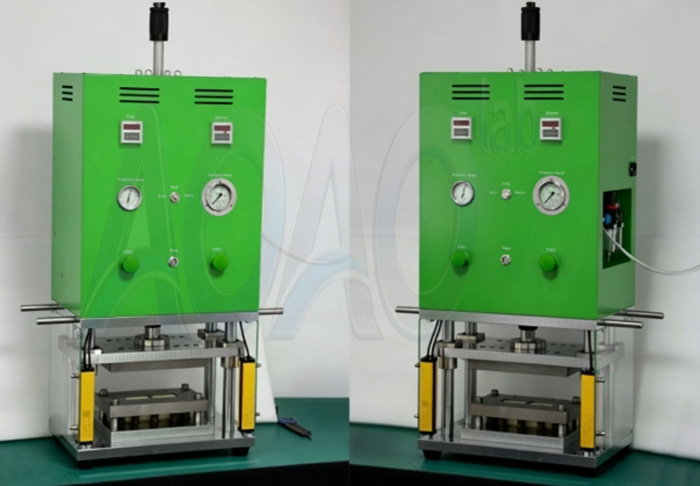

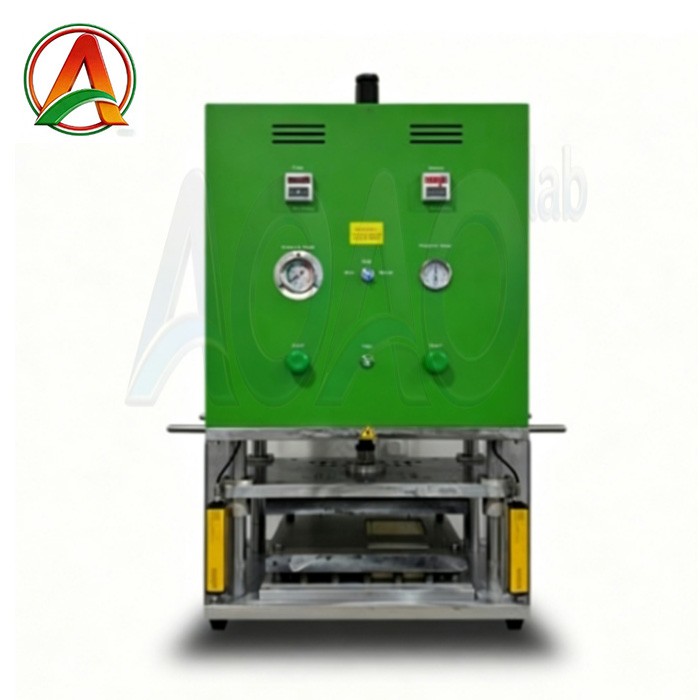

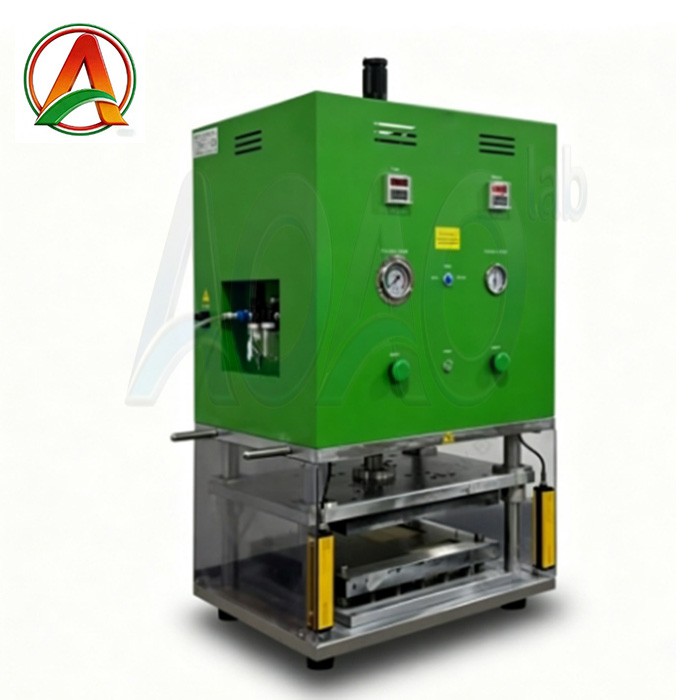

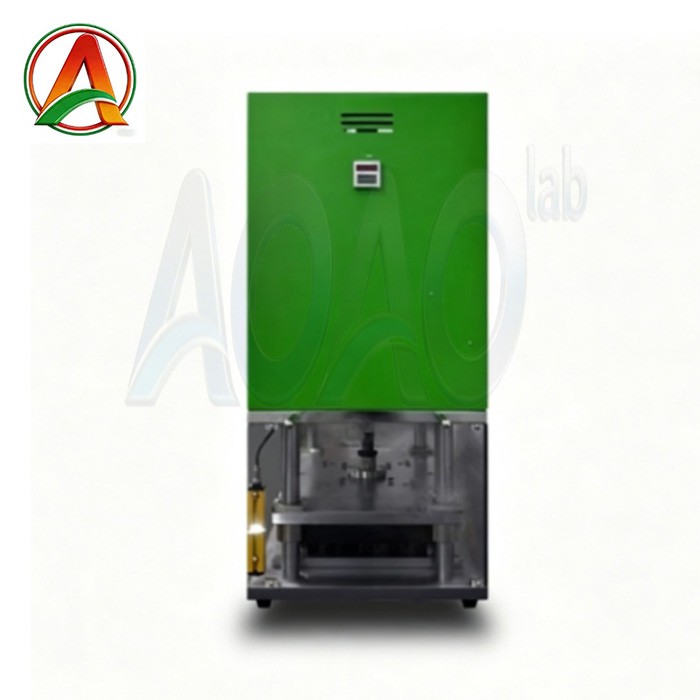

Lithium Pouch Cell Forming Machine

AOAO-SCK-300 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries

Brand:AOAO NEW ENERGY
item no.:AOAO-SCK-300
order(moq):1set
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

Lithium Pouch Cell Forming Machine

SPECIFICATIONS

1 AOAO-SCK-300 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.

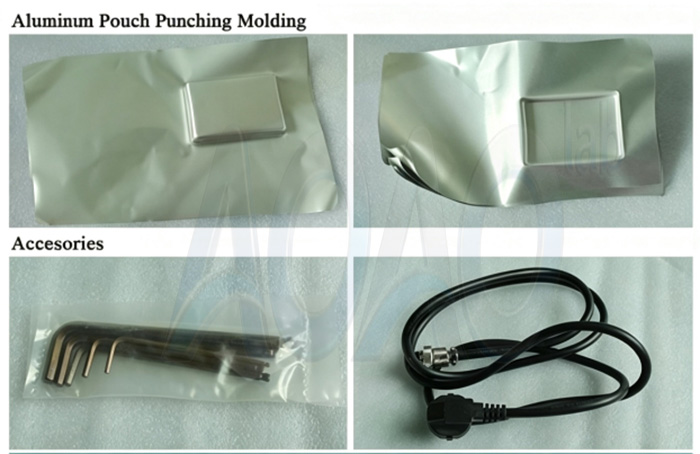

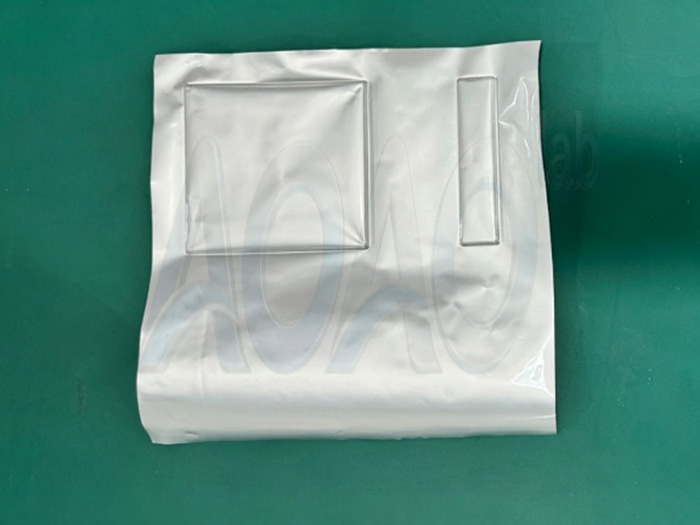

2 The machine is used to prepare polymer cases made of Aluminum Laminated Films.

3 This lab aluminum laminated film pouch forming machine is designed with simple Spring mold with a smaller size, which is more suitable for lab research.

Main Feature:

Four guide column structures for smooth sliding up and down.

It is simple and quick to change the mold and adjust the stretching depth.

Compared with similar products, when use the same quality aluminum laminated film,this machine stretches deeper and more stable.

Precise mold design, no crow's feet and sag at each corner of the product after forming.

Protected by light curtain and cover, safe to use.

Made of Japanese imported mold material and high-strength chrome steel and alloy aluminum, the surface is treated with environmentally friendly plating and baking finish.

Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful.

Easy to operate, safe and reliable, small size

Model	AOAO-SCK-300
Source voltage	AC 220V, 50HZ
Power	100W
Warranty	One year limited warranty with lifetime support
Suitable aluminum film size	300280mm(LW), customized, with punching depth ≤6mm
Max. Cup Depth to Punch	Single pit punching depth ≤6mm
Output	100-200EA/H
Output pressure	5T
Air source	0.5-0.7MPa
Dimension(LWH)	560420925mm
Weight	About 250 kg
Mold part	Mold/core roughness: ：0.4(mirror reflection) Upper and lower die flatness: 0.02mm Core flatness: 0.02mm
