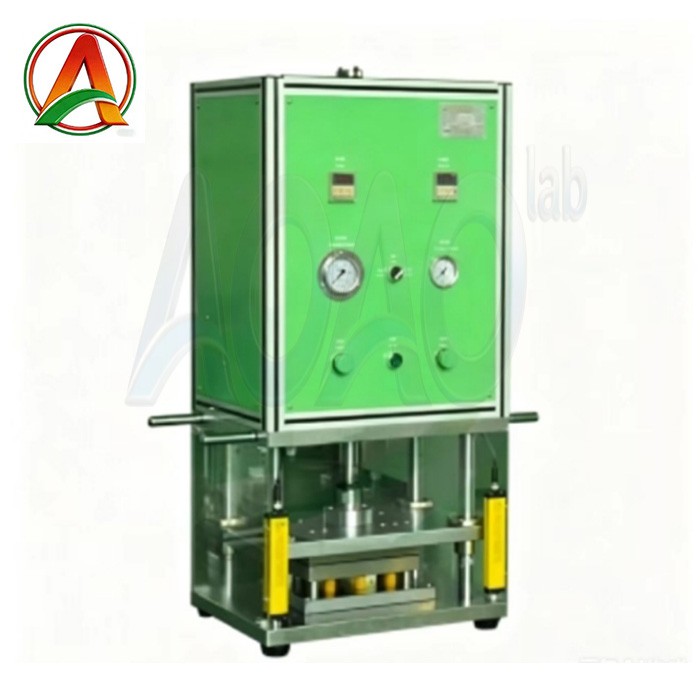

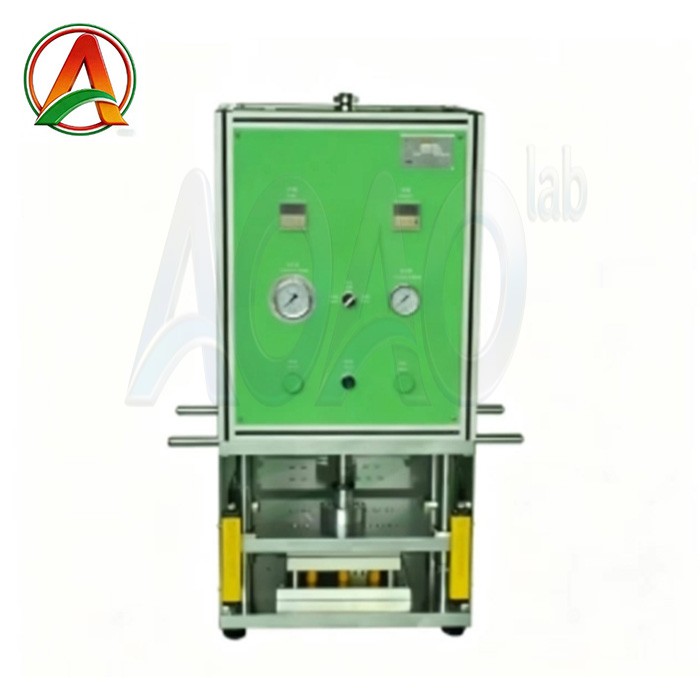

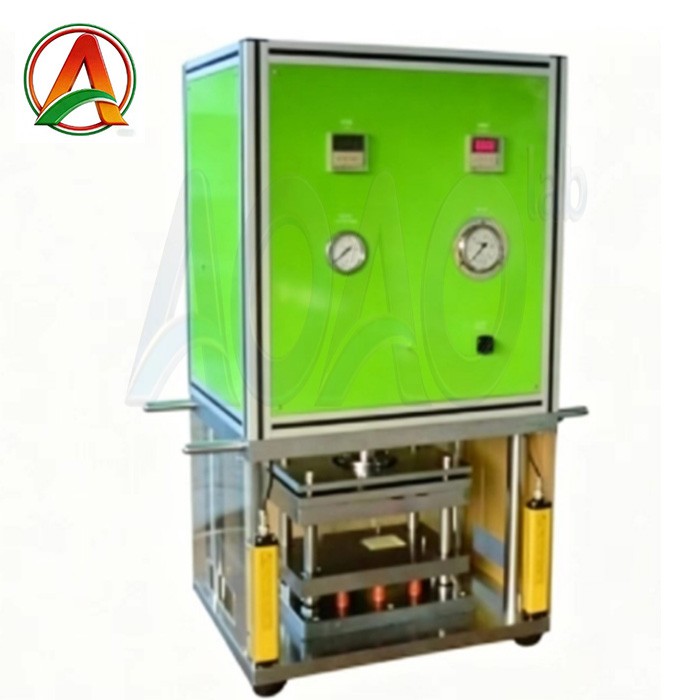

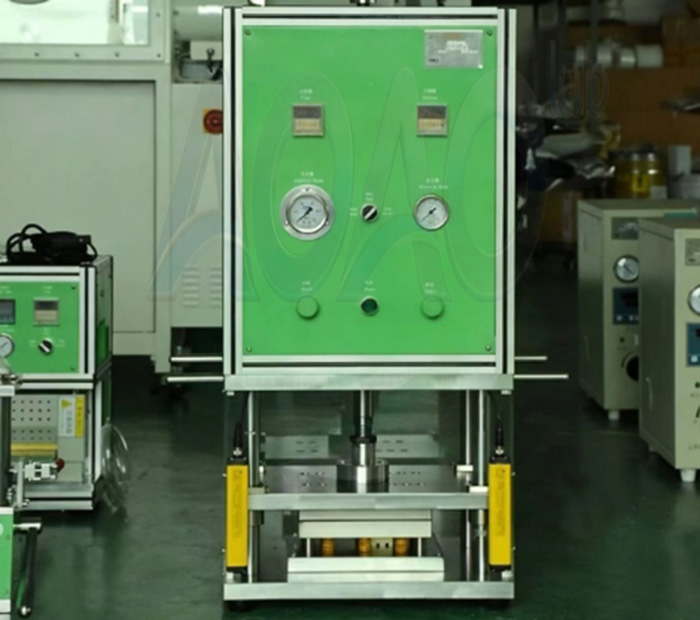

Lab Polymer Battery Pouch Forming Machine

Lab Polymer Battery Pouch Forming Machine

AOAO-SCK-200 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries

tem no.:AOAO-SCK-200
order(moq):1set
Payment:L/C,T/T,Western Union, Paypal
product origin:China
shipping port:XIAMEN
Lead Time:7days

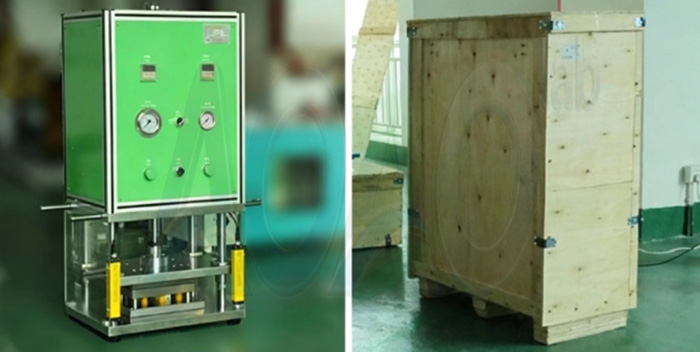

Lab Polymer Battery Pouch Forming Machine

SPECIFICATIONS

1 AOAO-SCK-200 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.

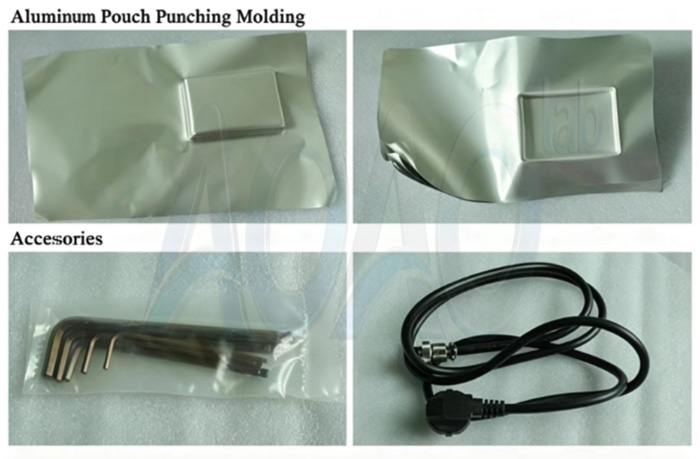

2 The machine is used to prepare polymer cases made ofAluminum Laminated Films.

3 This labaluminum laminated film pouch forming machineis designed with simple Spring mold with a smaller size, which is more suitable for lab research. If we want to do producing or Pilot scale production line, We can choose the AOAO-CK150 Model or other producing model.

Model	Lab Polymer Battery Pouch Forming Machine AOAO-SCK-200
Source voltage	AC 220V/50HZ
Power	300W
Warranty	One year limited warranty with lifetime support
Advantages	1 Structure of guide pin, slide up and down smoothly with high precision 2 Change mould, adjust tensile depth simply, quickly 3 Use screen and casing protection, guarantee safety 4 High strength of chrome steel and aluminum alloy, surface roasts the paint processing through environmental protection electroplating
Suitable aluminum film thickness	0.1-0.2mm
Suitable aluminum film size	240160mm(LW), customized, with punching depth ≤6mm
Max. Cup Depth to Punch	Single pit punching depth ≤6mm
Output	200-400EA/H
Output pressure	3T
Air source	0.5-0.7MPa
Mold materials	S136 Die steel
Dimension(LWH)	460320925mm
Weight	About 150kg
