Lab Heat Calendering Machine For Sodium-Ion Battery

Model Number:AOAO-JS
Type:Roller Heat Press Machine
Dimension(L*W*H):500*220*320mm
Net Weight:80-100kg
Compliance:CE Certified
Warranty:One Year limited warranty with lifetime support
Delivery Time:5 days
Payment:T/T, Western Union, PayPal, Credit Card, Cash, Alipay, L/C etc.

Lab Heat Calendering Machine For Sodium-Ion Battery

This type of roller press is specially used for electric rolling of small lithium electrode sheets, a small amount of precious metal materials such as gold and silver, copper and aluminum, and other non-ferrous materials. It is especially suitable for thinning and increasing density of lithium battery plate, which is a clean energy material. The machine adopts gear drive to realize roll pressing. The rolling thickness can be adjusted and used conveniently. It can realize percentile meter to directly control the material pressing thickness.

2. SPECIFICATIONS

Model	AOAO-JS
Working Power	2400W
Voltage	220V/110V selectable
Effective Calendering Width	100-400mm selectable
Roller Size Optional	100mm Dia. x 100mm W 100mm Dia. x 200mm W 100mm Dia. x 300mm W 100mm Dia. x 400mm W Or customized roller diameter and rolling width
Hardness of roll surface	HRC62, imported 9CR2MO steel roll material
Calendering Thickness (Effective clearance)	0~3 mm adjustable

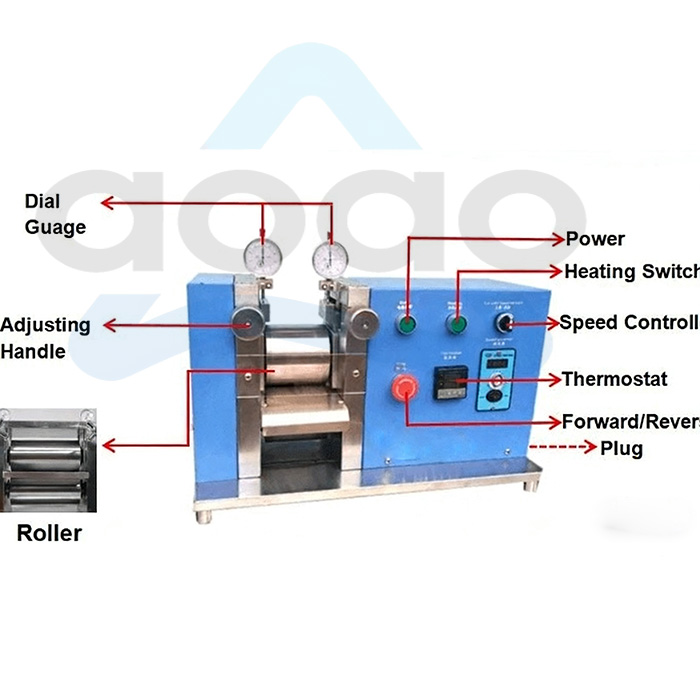

Dial Gauge Accuracy	0.01mm
Rolling Speed	CVT, linear speed 0-8.5 m/min adjustable
Roller SurfaceFinish Degree	Hard chromium plating never rusts
Roll surface quenching depth	5mm
Max. Pressure	5Ton
Heating Temperature	· 150°C Max. (< 1hr) · 130°C Continuously · Recommended Heating Rate: 1.3°C/minute The heating temperature can be customized
Operation environment	Ar gas compatible
Temperature Control Accuracy	+/-1°C
