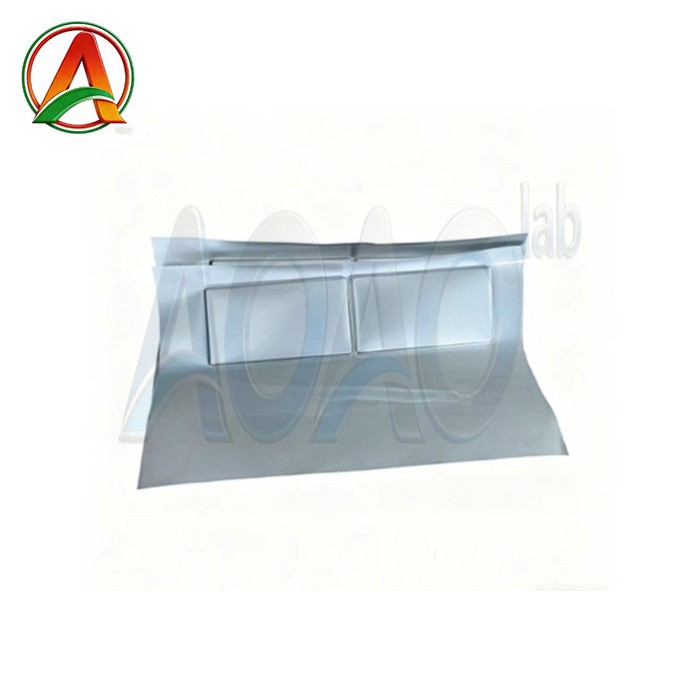

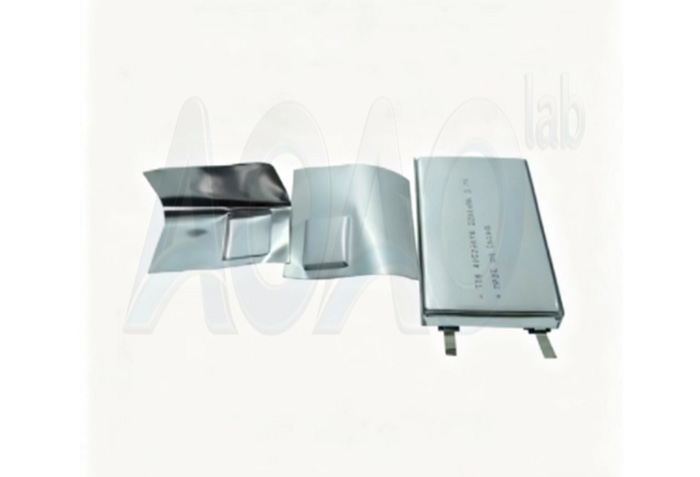

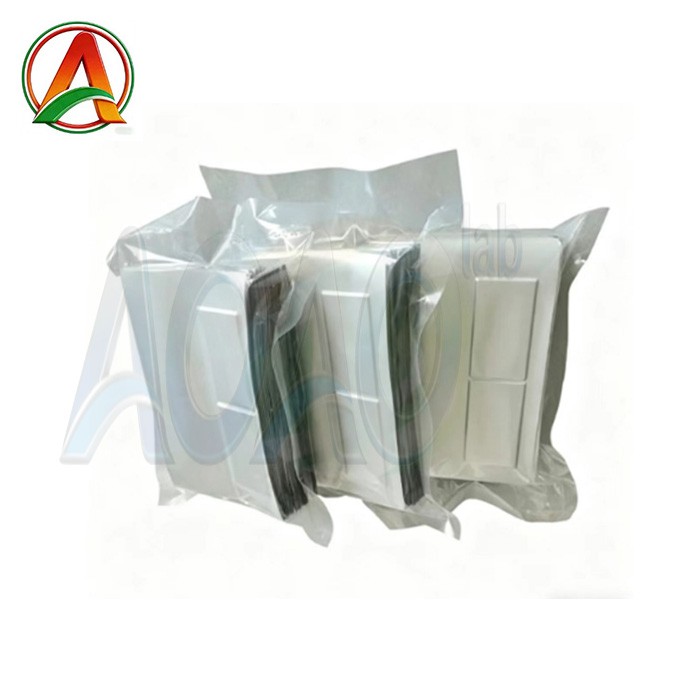

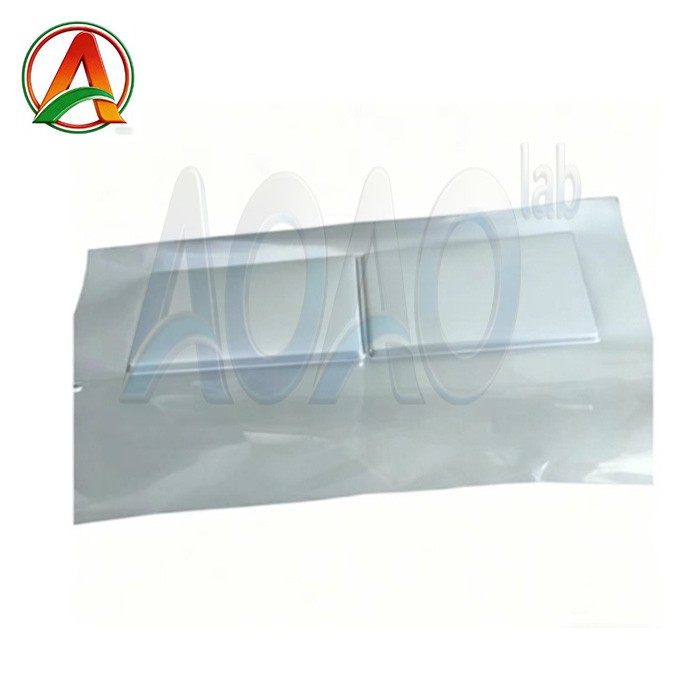

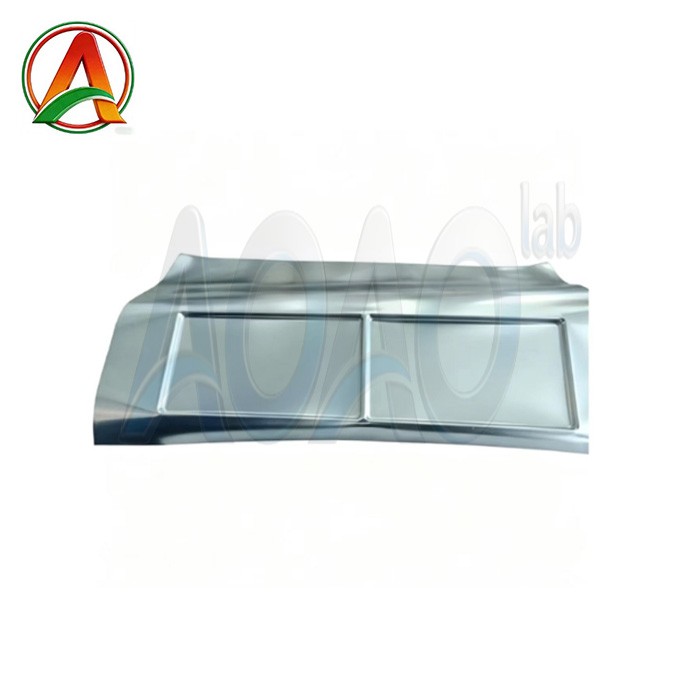

Formed Pouch Cell Case Aluminum Laminated Film

Formed Pouch Cell Case Aluminum Laminated Film

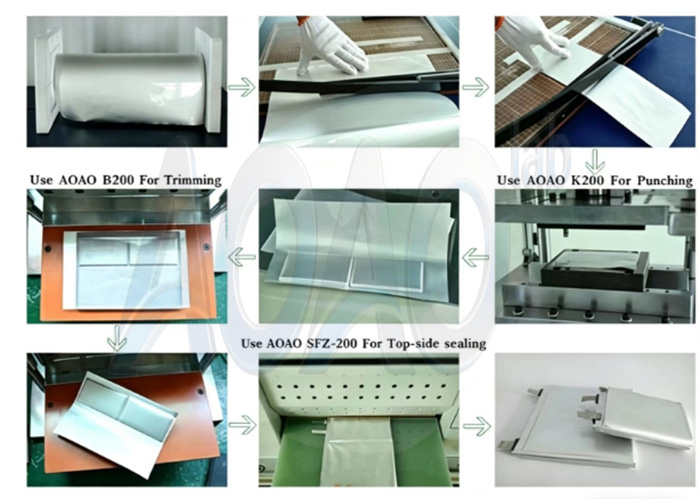

Provide custom pouch cell case forming service according to your requirement

Brand:AOAO NEW ENERGY
item no.:AOAO-ALF-Case
order(moq):1
Payment:L/C,T/T
product origin:china
Color:white
shipping port:XIAMEN
Lead Time:3days

Formed Pouch Cell Case Aluminum Laminated Film

SPECIFICATIONS

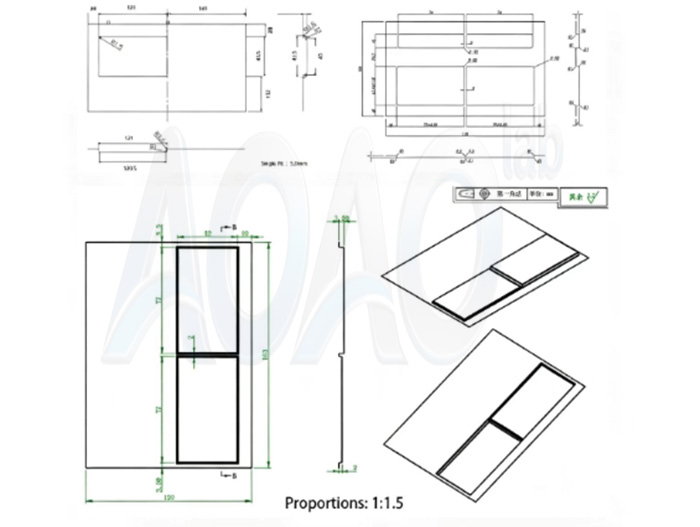

Existing Die model : No extra cost for die sinking.

We also provide custom service according to your requirements to design the new pouch die, but you should pay for the die sinking cost.（There is no minimum order quantity limit for custom service.）

Existing Pouch Die Model	Remark
34 50	Single Pit
41 76	Single Pit
57 101	Single Pit
43.5 121	Single Pit
75 90	Single Pit
91 101	Single Pit
147.5 235	Single Pit
17 24	Double Pit
41 75	Double Pit
42 75	Double Pit
42 77	Double Pit
51 77	Double Pit
52 77	Double Pit
56 81	Double Pit
67 90	Single Pit
101 210	Double Pit. Max thickness is about 2.8mm for single
128 137	Double Pit
Thickness can be adjustable up to about 5.5mm, please contact with us for confirming the thickness before place order

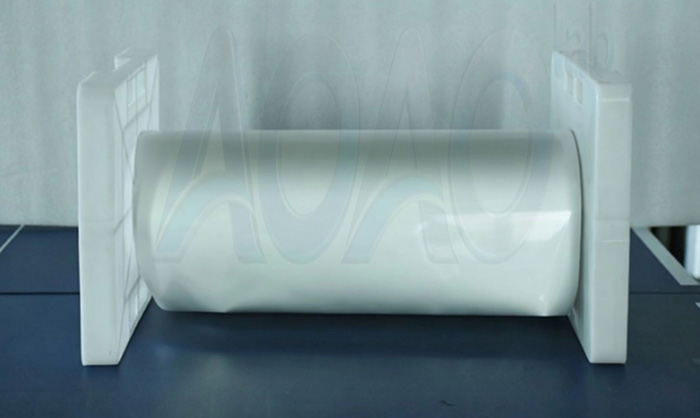

Materials Choose (Aluminum Laminated Film)

We can supply aluminum laminated film in the following thickness： 68μm, 88μm, 113μm, 122μm, 133μm, 152μm, 153μm, etc.

The brands of aluminum laminated film from Chinese and Japanese are available for your choice.

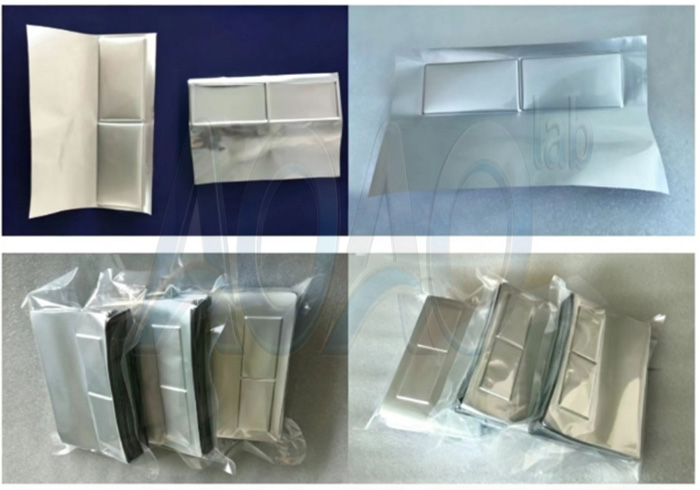

Formed Pouch Cell Case Aluminum Laminated Film.jpg
