Black Aluminum Laminated Film for polymer lithium battery case
Brand:AOAO NEW ENERGY
item no.:AOAO-90-400
order(moq):1
Payment:L/C,T/T,Western Union,paypal
Price:$1100/roll
product origin:china
Color:white
shipping port:XIAMEN
Lead Time:3days

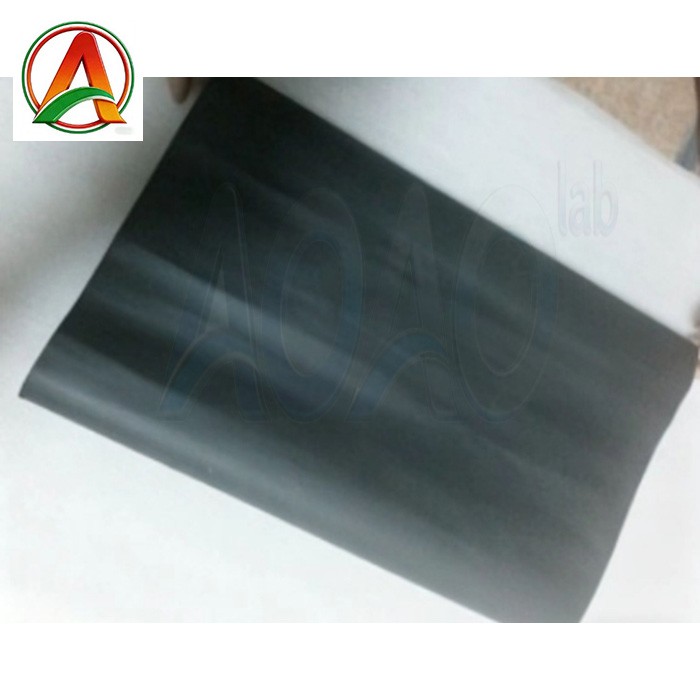

Black Aluminum Laminated Film for polymer Lithium battery case
SPECIFICATIONS
Width:400mm
Lenght: 300m
Thickness:90um
Mode:AOAO-90
Layers from outside (Shiny) to inside (Mat)
| Polyamide (JIS Z1714): 0.025mm (+-0.0025mm) |
Thickness: | 90μm |
Width | 400mm |
Length | 300m |
Surface quality | Mat finish |
Pinholes | Subject to the applicable aluminum foil standard |
Impurity | 1mm or less in diameter |
Fish Eye | 2mm or less in diameter (clear),1mm or less in diameter (colored) |
Molding Depth | ≥5.0mm |
Electrical Insulating | Good |
Hot Sealing Coniditon | 180-190°C |
Moisture Vapor / O2 Transmission Rate | 200ppm / 5 years |
Laminate Strength | Nylon/Al more than 2N/15mm Al/CPP more than 5N/15mm |
Heat Seal Strength | More than 22.5N/15mm wide at 200℃ x 0.2Mpa x2 sec by TOB heat sealing |
Solvent Retention | Less than 5mg/m2 |
Appearance | Within the sample of the limit |
Slip Factor | CPP/CPP less than 1.0 |

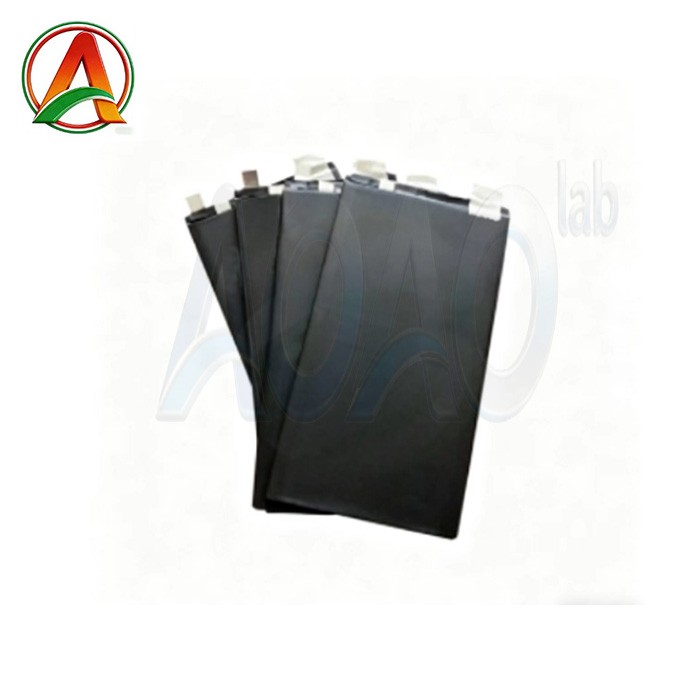

Application Notes | Click the picture below to see the finished polymer Li-Ion battery made by heated sealer
|
