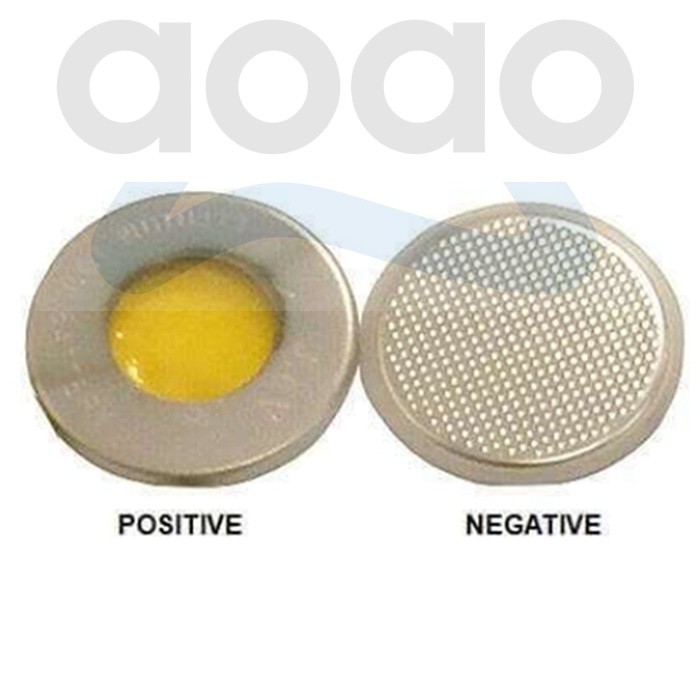

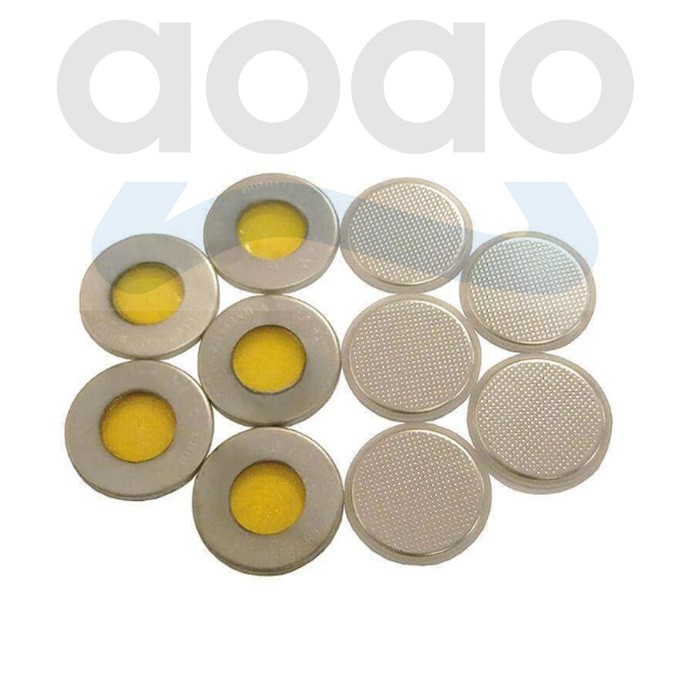

Coin Cell Case With One Side Kapton Window For In-Situ X- Ray Analysis

Model Number:AOAO-CCC
Type:Coin Cell Cases
Dimension(L*W*H):CR 2016 2025 2032 2450 2045
Compliance:CE Certified
Payment:T/T, Western Union, PayPal, Credit Card, Cash, Alipay, L/C etc.
Delivery Time:2 days

Coin Cell Case With One Side Kapton Window For In-Situ X- Ray Analysis

Dimensions (Dia x Height)	20mm x 1.6mm Or customized
Kapton window thickness	0.18mm
Coating	The positive side of casing is coated with aluminum
Al coating thickness	< 0.01mm
Weight	0.25 Oz (7 grams)
Application note	· In order to get better in situ XRD curve for battery, please use carbon foil as current collector instead of Al or Cu foil, which will absorb X-ray.

Other coin cell type:

Name	Model/Size	Material
Coin cell case	CR2032	304ss/316ss/Gold-Coated/Al-Coated/ Kapton
	CR2016	304ss/316ss/ Kapton
	CR2025	304ss/316ss
	CR2450	304ss
	CR2430	304ss/316ss
	CR2325	304ss
	CR1620	304ss
	CR1632	T:3.2mm D:16mm 304ss
	CR1616	304ss
	CR1220	304ss
	CR1820	304ss
	CR0927	304ss
	CR1220	304SS
	CR1025	304SS
	CR1016	304SS
	CR3048	304SS
	CR3032	304SS
	CR2477	304ss
	CR2032 Lithium air case	304ss
Coin cell spacer	15.8*0.2mm	304ss/316ss
	15.8*0.5mm	304ss/316ss/Pure aluminum
	15.8*0.8mm	304ss/316ss
	15.8*1mm	304ss/316ss
	20.2*0.4mm	304ss
Wave Sprin (Belleville Washers)	15.4O.D10.5 I.D1.0Height*0.25 Thickness mm	304ss/316ss
Wave Sprin (Belleville Washers)	15.4O.D10.5 I.D1.0Height*0.25 Thickness mm	304ss/316ss
Coin Cell Conical Spring	15.4 mm dia * 1.1 mm height *0.25 mm thickness	304ss/316ss
Coin Cell Conical Spring	20*1.7mm	304ss
